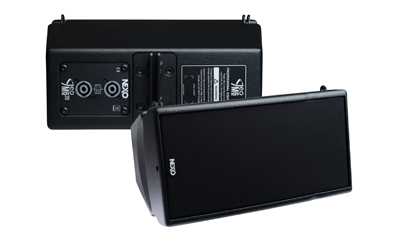

Nexo GEOM620 Full-Range Loudspeaker

The NEXO GEO M620 is a full-range unit for stand-alone, curved array or line array application. The NEXO GEOM620 is extremely compact in size, and the module punches well above its weight of less than 10 kgs. Using a NEXO-designed long-excursion high-efficiency 6.5" LF driver and a 1" throat driver on a BEA/FEA optimized HR Wavesource, the GEOM620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of 127dB. HF dispersion is 80° or 120° horizontal, with 20° vertical coverage, 0° to 20° splay when arrayed. Using NEXO’s HRW patented waveguide for optimum HF coupling between elements, the GEOM620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.

NEXO GEO M620 Features:

• Components:
  • LF: 1 x 6.5" 8oHms long excursion driver
  • RF: 1 x 1" throat driver on a BEA/FEA optimized HR Wavesource
• Connectors: 2 x NL4 Speakon 4 poles
• Construction: Lighweight Polyurethane composite
• Fittings:
  • Acoustic Fabric fitted front grille
  • Front Finish
  • Handles
  • Side Handles
• Height x Width x Depth: 191 mm x 373 mm x 260 mm
• Speaker Cabling: 2+/2-
• Weight (Net): 9.7kg

NEXO GEO M620 Specifications:

• Crossover Frequencies: LF-HF: 2kHz Passive
• Frequency Response: 80Hz - 19kHz -/+3dB
• HF Dispersion: 80 or 120 degrees Horizontal (CCD)
• Nominal Peak SPL @ 1m: 127dB
• Nominal Impedance: 8 oHms
• Recommended Amplifiers: 450W per box (3 boxes max in parallel on one channel amplifier)
• Sensitivity 1W @ 1m: 95db SPL Nominal
• Usable range @ -6db: 75 Hz - 20kHz

Note:

Specifications are based on this speaker with NEXO TDController amplifier (sold separately) . The NEXO TD Controller's presets are precisely matched to the GEO M6 Series cabinets. Using GEO M6 Series cabinets without a properly connected NEXO TDController will result in poor sound quality and can damage components. Please contact your Sales Representative for more information.
