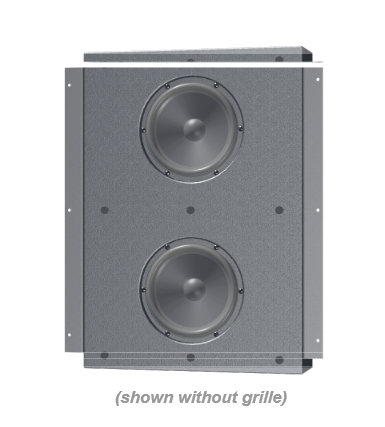

Innovox Audio Micro-Sub 2x6 iw
2x6" In-Wall, Compact Subwoofer


The Innovox Micro-Sub 2x6 iw is a high definition subwoofer designed for permanent in-wall installation.
Learn More

Call for price! Not available online.

Related Products

The Innovox Micro-Sub 2x6 iw is a high definition subwoofer designed for permanent in-wall installation.  It uses two 6ā€¯ low frequency drivers in a compact, sealed enclosure which fits in a standard 2 x 4 stud space.  Working in conjunction with external DSP processing, it achieves maximum bass output from a minimum enclosure size.  DSP options include an Innovox proprietary powered system processor, or DSP configurations from our free library for Biamp, BSS and Symetrix processors.  The Micro-Sub 2x6 iw complements the Innovox Slim Line Series of shallow profile surface-mount loudspeakers and the Flex-Video Series of display-mounted loudspeakers. Applications include theme venues, restaurants, boardrooms, program audio, and retail spaces.

Innovox Micro-Sub 2x6 iw Features:

  • Fits in standard 2 x 4 wall space
  • Excellent transient response
  • 45 Hz low frequency extension
  • Minimum depth (only 4.1 inches)

Innovox Micro-Sub 2x6 iw Specifications:

  • Frequency Response: 45 - 350 Hz +/ 3 dB
  • Impedance: 4 Ohm (16 Ohms available)
  • Power Handling: 350 W long term program (AES-2)
  • Maximum Output: 108 dB long term; 112 dB peak
  • Dimensions:
    • Height: 20.25" / 514 mm
    • Width: 14.45" / 367 mm
    • Depth: 3.92" / 100 mm
  • Net Weight: 19 lbs / 8.63 kg
  • Shipping Weight: 22 lbs / 10.0 kg
  • System Configuration: Dedicated low frequency
  • Components & Loading: (2) 6" LF drivers, sealed
  • Recommended High-Pass Filter: 4th order Butterworth @ 40 Hz
  • Cabinet Type: Rectangular with flange for wall-mount
  • Enclosure Material: Hardwood multi-ply plywood
  • Finish: Black or white (custom colors available)
  • Connectors: Dual binding head screws
  • Suspension Hardware: (2) wall-mount brackets
  • Grille: Powder-coated perforated steel standard
