Primacoustic 1"BROADBAND-PANEL-BV Acoustic Panel, 24x48x1, 6 Pcs, Beveled Edge

OUR PART #: 1"BROADBAND-PANEL-BV MFR #: F121 2448 00

Copied to clipboard

Primacoustic's Broadway Broadband Absorbers are an easy to install solution for acoustic treatment where you want maximum control over primary reflections... ...Read more

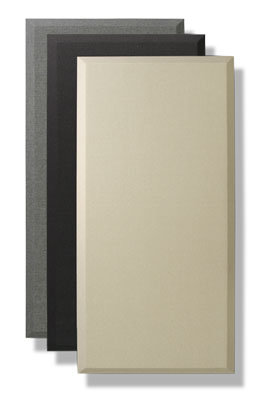

Primacoustic 1"BROADBAND-PANEL-BV Acoustic Panel, 24x48x1, 6 Pcs, Beveled Edge Image 1
Primacoustic 1"BROADBAND-PANEL-BV Acoustic Panel, 24x48x1, 6 Pcs, Beveled Edge
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Primacoustic's Broadway Broadband Absorbers are an easy to install solution for acoustic treatment where you want maximum control over primary reflections, and need to eliminate flutter echo and reduce standing waves.

Made from high density 6 lb/cu. ft. fiberglass, these larger 24"x48" absorptive panels have an increased panel surface to maximize absorption. This makes them particularly effective in larger installations and in rooms where the reverberant field and echo is excessive. Broadband Absorbers can be 'butted-up' for complete wall coverage and maximum absorption or spread in an array to leave a sense of 'air' or natural ambiance.

For general office noise, thinner 1" panels are easily flush-mounted on the wall surfaces using Surface impalers to attenuate the reverberant field. These same panels offer an effective 'upgrade' for drop ceilings as the 2 ft. x 4 ft. panel size ideally suits standard T-bare grid layouts. This can be particularly effective in commercial installations such as noisy offices, call centers and for boardrooms that need added sound control.

Features

  • Fabric-covered acoustic panels with resin-hardened edges
  • Made from high performance 6 lb glass wool
  • Balanced absorption down to the bass region
  • Class-A/1 fire rated for safe use anywhere

Specifications

  • Core Material: Formed, semi-rigid inorganic glass fibers
  • Density: 6.0 lbs per cubic foot (96 kg/m3)
  • Fabric Facing: Acoustically transparent polyester tweed
  • Encapsulation: Micromesh on front and rear surface, resin-treated edges
  • Absorption H2O: < 2% by weight @ 120°F (49°C), 95% relative humidity
  • Temperature: -20 to 150°F (-29 to 66°C)
  • Fire Rating: Class-A/1 (ASTM E 84 / CAN/UL-S102)
  • Mounting: Galvanized steel impalers (not included). Also fits as drop ceiling tile.
  • NRC: 1.0
  • Dimensions (H x W x D): 24" x 48" x 1"
  • Edge: Beveled
  • Panels per Box: 6

Note

These panels are available in beige, black, or gray.
