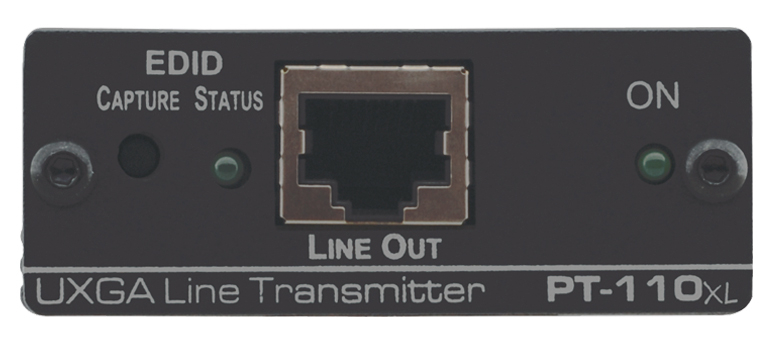

Kramer PT-110xl
Computer Graphics Video over Twisted Pair Transmitter with EDID

OUR PART #:  PT-110XL

Kramer's PT-110xl is an extended range UXGA line transmitter that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120xl or TP-120 receiver.
Learn More
Our Price: $220.00
List Price: $275.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer PT-110xl
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Kramer's PT-110xl is an extended range UXGA line transmitter that receives a UXGA signal and transmits it over a CAT 5/6 cable to the PT-120xl or TP-120 receiver. Applications for this unit include:

  • Presentation and multimedia applications
  • Long-range graphics distribution for schools, hospitals, security, andstores

Kramer PT-110xl Features:

  • Resolution - Up to WUXGA & 1080p.
  • HDTV Compatible.
  • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
  • Extended Transmission Range - Up to 250m (820ft) when used with Kramer’s twisted pair xl receivers (such as PT-120xl, TP-122xl or TP-126xl).
  • EDID Capture - Copies and stores the EDID from a display device.
  • Increased Noise Immunity - An increased level of protection against noise, spikes and interference in adverse environments.
  • Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mountedside-by-side in a 1U rack space with the optional RK-4PT rack adapter.

Kramer PT-110xl Specifications:

  • Input: 1 VGA/UXGA on a 15-pin HD connector.
  • Output: 1 twisted pair on an RJ-45 connector.
  • Resolution: Up to WUXGA, 1080p.
  • Range: Up to 250m (820ft).
  • S/N Ratio: Paired with PT-120xl, better than 70dB (worst case).
  • Coupling: AC.
  • Power Consumption: 12V DC, 285mA.
  • Operating Temperature: 0° to +40°C (32° to 104°F).
  • Storage Temperature: -40° to +70°C (-40° to 158°F).
  • Humidity: 10% to 90%, RHL non-condensing.
  • Dimensions: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H.
  • Weight: 0.14kg (0.31lbs) approx.
  • Included Accessories: Power supply.
  • Options: RK-4PT 19" rack adapter.
