Community IS6-218W

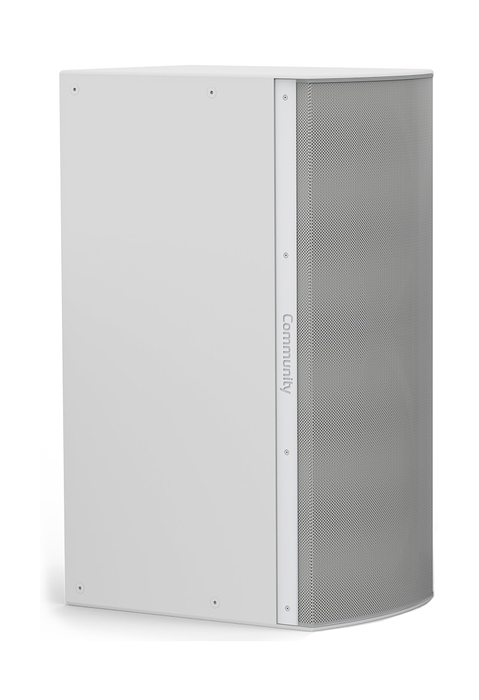

I Series Dual 18" 1400W (4 Ohms) Medium Power Passive Installation Subwoofer in White

OUR PART #:  IS6-218W

Community's IS6-218W is an I Series Subwoofer 600 dual 18" 1400W (4 Ohms) passive installation subwoofer in white.
Learn More
Our Price: $2,665.00
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community IS6-218W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Community's IS6-218W is an I Series Subwoofer 600 dual 18" 1400W (4 Ohms) passive installation subwoofer in white. This subwoofer is well-suited for a variety of applications, such as houses of worship, auditoriums, restaurants, meeting rooms, corporate A/V systems, arenas, stadiums, or any other application where extended low-frequency reinforcement is needed.

I Series Subwoofer 600 loudspeakers provide exemplary acoustic performance, modular flexibility and elegant aesthetics for modern performance venues. Designed to support the goals of systems integrators and consultants both acoustically and mechanically, I Series Subwoofers provide a broad range of sizes and capabilities that can be specifically matched to the needs of any modern venue.

Each cabinet is carefully designed to provide matching heights, face widths, and suspension point locations, all to offer seamless integration into flown arrays with I Series full-range models. The broad range of optional low profile fly rails, fly frames and modular array brackets (all sold separately) reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS6-218W is a direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. The drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another, which not only provides additional protection to the drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns—all within a single enclosure—when using any I Series dual driver subwoofer model.

Applications include:

  • Small to Medium Size Venues:
    • Houses of Worship
    • Auditoriums
    • Restaurants
    • Meeting Rooms
    • Theaters
    • Corporate A/V Systems
  • Larger Size Venues:
    • Arenas
    • Stadiums
    • Night Clubs
    • Theaters
    • Themed Entertainment
    • Larger Houses of Worship

Community IS6-218W Features:

  • Long excursion ferrite LF drivers with FEA-optimized motors and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1400W continuous power handling (5600W peak)
  • High sensitivity design minimizes power compression losses and required amplifier size
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure

Community IS6-218W Specifications:

  • Operating Mode: Single or Dual Amp
  • Operating Environment: Indoor
  • Operating Range: 32 Hz - 145 Hz
  • Transducers: 2x 18" (457 mm) double-treated cones with 4" (102 mm) inner/outer wound voice coil, ferrite construction
  • Continuous Power Handling @ Nominal Impedance:
    • Single Amp, 75V: 1400W @ 4 Ohms (5600W peak)
    • Dual Amp, 75V: 700W @ 8 Ohms (2800W peak) each
  • Nominal Sensitivity:
    • Half Space: 107dB @ 1W; 110dB @ 2.83V
    • Whole Space: 101dB @ 1W; 104dB @ 2.83V
  • Nominal Maximum SPL:
    • Half Space: 138dB continuous; 144dB peak
    • Whole Space: 132dB continuous; 138dB peak
  • Equalized Sensitivity:
    • Half Space: 102dB @ 1W; 105dB @ 2.83V
    • Whole Space: 96dB @ 1W; 99dB @ 2.83V
  • Equalized Maximum SPL:
    • Half Space: 133dB continuous; 139dB peak
    • Whole Space: 127dB continuous; 133dB peak
  • Recommended Amplifiers:
    • Single Amp: 1400W - 2800W @ 4 Ohms (75V - 106V)
    • Dual Amp: 700W - 1400W @ 8 Ohms (75V - 106V) each driver
  • Physical:
    • Dimensions (HxWxD): 39.00" x 22.10" x 28.89 " (991 x 561 x 734 mm)
    • Weight:
      • Unit: 170 lbs (77.1 kg) loudspeaker only
      • Shipping: 190 lbs (86.2 kg)
    • Finish: White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
    • Input Connection: (2) 4-position screw terminal blocks
    • Mounting Points: (24) M10 threaded rigging points
    • Environmental: IPX4 per IEC 60529, designed in accordance wtih MIL-STD-810G

Note: Community strives to improve its products on a continual basis. Specifications are therefore subject to change without notice.
