Biamp IS6-218B Dual 18" Passive Subwoofer 1400W, Black

OUR PART #: IS6-218B

Copied to clipboard

The Community IS6-218B is an I Series Subwoofer 600 dual 18" 1400W (4 Ohms) passive installation subwoofer offered in a black finish. ...Read more

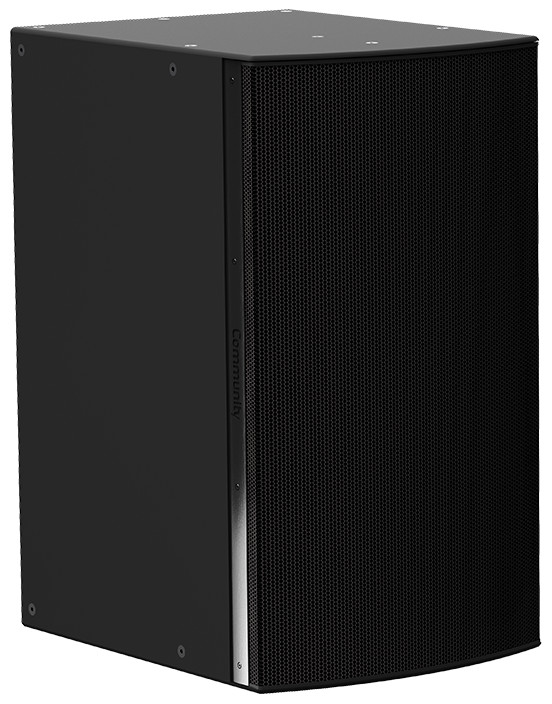

Biamp IS6-218B Dual 18" Passive Subwoofer 1400W, Black Image 1
Biamp IS6-218B Dual 18" Passive Subwoofer 1400W, Black Image 2
Biamp IS6-218B Dual 18" Passive Subwoofer 1400W, Black
Our Price: $4,180.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$117/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Community IS6-218B is an I Series Subwoofer 600 dual 18" 1400W (4 Ohms) passive installation subwoofer offered in a black finish. It is a subwoofer that is well-suited for a range of applications, including houses of worship, auditoriums, restaurants, meeting rooms, corporate A/V systems, arenas, stadiums, or any other application where extended low-frequency reinforcement is required.

I Series Subwoofer 600 loudspeakers provide exeptional acoustic performance, as well as modular flexibility, and elegant aesthetics for use in modern performance venues. Designed to support the goals of systems integrators and consultants alike, both acoustically and mechanically, I Series Subwoofers provide a wide range of sizes and capabilities that enable specific matching to the needs of any modern venue.

Each cabinet has been carefully engineered to offer matching heights, face widths, plus suspension point locations for seamless integration into flown arrays with I Series full-range models. The broad selection of optional low profile fly rails, fly frames and modular array brackets reduces design and installation time while also providing improved aesthetics and nearly limitless integration possibilities.

The IS6-218B is a direct radiating subwoofer with large, balanced ports that provide optimal enclosure tuning and even air pressure distribution to the driver cones, reducing distortion and extending system longevity. Drivers are loaded into individual air volumes within the enclosure, isolating their performance from one another. This arrangement not only provides additional protection to drivers in case of failures, but also allows the designer to implement directional subwoofer techniques, like steered end-fire arrays and cardioid patterns, within a single enclosure when using any I Series dual driver subwoofer model.

Applications :

  • Small to Medium Size Venues:
    • Houses of Worship
    • Auditoriums
    • Restaurants
    • Meeting Rooms
    • Theaters
    • Corporate A/V Systems
  • Larger Size Venues:
    • Arenas
    • Stadiums
    • Night Clubs
    • Theaters
    • Themed Entertainment
    • Larger Houses of Worship

Community IS6-218B Features:

  • Long excursion ferrite LF drivers with FEA-optimized motors and symmetric movement suspension
  • Matched-size enclosure and aligned suspension point for seamless flown array integration
  • 1400W continuous power handling (5600W peak)
  • High sensitivity design minimizes power compression losses and required amplifier size
  • Isolated driver air volumes allow use of directional steering techniques within a single enclosure

Community IS6-218 Specifications:

  • Operating Mode: Single or Dual Amp
  • Operating Environment: Indoor
  • Operating Range: 32 Hz - 145 Hz
  • Transducers: 2x 18" (457 mm) double-treated cones with 4" (102 mm) inner/outer wound voice coil, ferrite construction
  • Continuous Power Handling @ Nominal Impedance:
    • Single Amp, 75V: 1400W @ 4 Ohms (5600W peak)
    • Dual Amp, 75V: 700W @ 8 Ohms (2800W peak) each
  • Nominal Sensitivity:
    • Half Space: 107dB @ 1W; 110dB @ 2.83V
    • Whole Space: 101dB @ 1W; 104dB @ 2.83V
  • Nominal Maximum SPL:
    • Half Space: 138dB continuous; 144dB peak
    • Whole Space: 132dB continuous; 138dB peak
  • Equalized Sensitivity:
    • Half Space: 102dB @ 1W; 105dB @ 2.83V
    • Whole Space: 96dB @ 1W; 99dB @ 2.83V
  • Equalized Maximum SPL:
    • Half Space: 133dB continuous; 139dB peak
    • Whole Space: 127dB continuous; 133dB peak
  • Recommended Amplifiers:
    • Single Amp: 1400W - 2800W @ 4 Ohms (75V - 106V)
    • Dual Amp: 700W - 1400W @ 8 Ohms (75V - 106V) each driver
  • Physical:
    • Dimensions (H x W x D): 39.00" x 22.10" x 28.89" (991 x 561 x 734 mm)
    • Weight:
      • Unit: 170 lbs (77.1 kg) loudspeaker only
      • Shipping: 190 lbs (86.2 kg)
    • Finish: Black low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
    • Input Connection: (2) 4-position screw terminal blocks
    • Mounting Points: (24) M10 threaded rigging points
    • Finish: Black low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille
    • Environmental: IPX4 per IEC 60529, designed in accordance wtih MIL-STD-810G

Note:

Community strives to improve its products on a continual basis. Specifications are therefore subject to change without notice.
