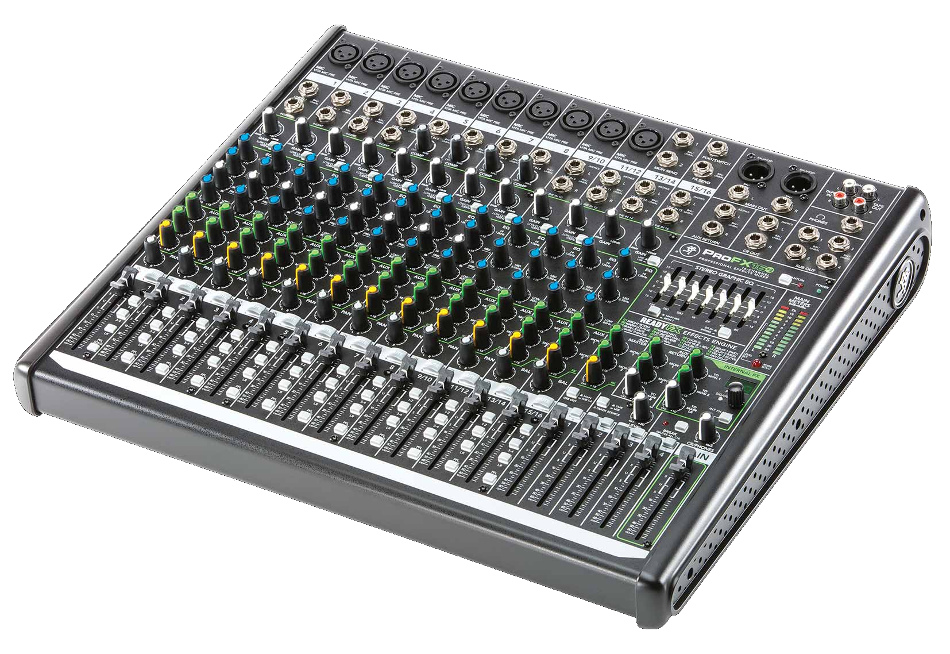

Mackie ProFX16v2 16-Channel Analog Mixer With Effects, USB Interface

OUR PART #: PROFX16V2

Copied to clipboard

Built-in USB capability makes it so easy to connect to your Mac or PC, and pro features such as 16 onboard effects, ten low-noise Vita mic preamps... ...Read more

Mackie ProFX16v2 16-Channel Analog Mixer With Effects, USB Interface Image 1
Mackie ProFX16v2 16-Channel Analog Mixer With Effects, USB Interface Image 2
Mackie ProFX16v2 16-Channel Analog Mixer With Effects, USB Interface Image 3
Mackie ProFX16v2 16-Channel Analog Mixer With Effects, USB Interface Image 4
Mackie ProFX16v2 16-Channel Analog Mixer With Effects, USB Interface
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Built-in USB capability makes it so easy to connect to your Mac or PC, and pro features such as 16 onboard effects, ten low-noise Vita mic preamps, 60mm faders, single-knob compression, and 48-volt phantom power means you're always ready to record great tracks or mix a killer show.

Features

  • 3-band EQ with sweepable mids (mono channels)
  • 7-band graphic EQ for mains or monitors
  • 4 subgroups and 2 aux outputs
  • 16 line-level inputs
  • Includes Traction recording software

Specifications

  • Ten (10) extremely low-noise Vita mic preamps designed to add life to any input
  • ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
  • Single-knob channel compression for smooth, even dynamic control (ch. 5 - 8)
  • Built-in USB interface to record the show or provide music playback
  • 4 flexible subgroups for professional mix management
  • 2 Aux outputs perfect for monitor mixes, fill speakers, and more
  • 3-band EQ with sweepable mids on mono channels
  • 16 high-headroom line level inputs
  • Individual channel mutes and overload indication
  • 100 Hz low-cut filters per channel (18dB/octave)
  • Channel inserts for connecting outboard processing (ch. 1 - 4)
  • 60 mm faders for input channels, subgroups, and main masters
  • 48V phantom power for connecting condenser mics
  • Balanced XLR and balanced/unbalanced 1/4" main outputs
  • Solid steel chassis protects your investment
  • Tough ABS side protection
  • Robust internal multi-voltage power supply

Notes

  • Full specifications and additional information can be found by referring to the "Mackie ProFXv2 Series Datasheet" located under the "DOCUMENTATION" tab above.
