Product Overview

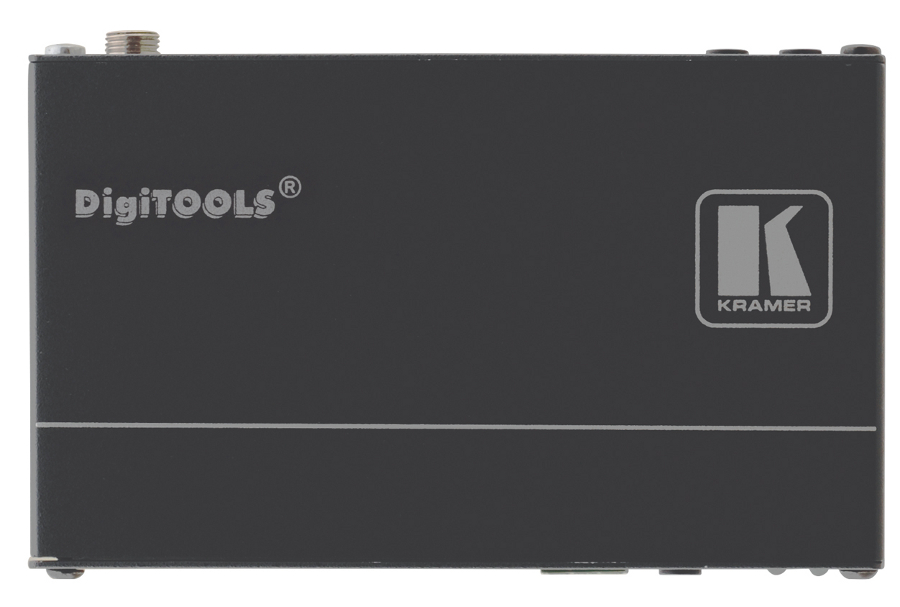

The VS-211HA from Kramer is a high-performance automatic standby switcher for HDMI video and unbalanced stereo audio signals. The VS-211HA can be used as a manual 2x1 switcher or as an automatic switcher. The switcher either uses a priority input or last connected input.
Applications
- Providing backup switching
- Boardrooms and meeting rooms
- Restaurant and entertainment venues
Features
- Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
- HDMI & HDCP Compliant
- HDTV Compatible
- Advanced Auto Switching: Based on video clock detection
- Automatic Output Shutdown: If no input signal is detected after a configurable idle period
- 3D Pass Through
- EDID PassThru: Passes EDID signals from display to source
- Audio Return Channel (ARC) Pass Through
- Parallel Unbalanced Stereo Audio Switching
- Contact Closure Remote Control: For manual switching override
- DIP-Switches: For setting the switching mode
- Size: Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a1U rack space with the optional RK-3T rack adapter
Specifications
- Inputs: 2 HDMI connectors, 2 unbalanced stereo audio on 3.5mm mini jacks
- Outputs: 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack
- Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
- Compliance with HDMI Standard: Supports HDMI and HDCP
- Controls: Contact closure on a 3-pin terminal block, 2 priority DIP-switches
- Indicators: ON and active input LEDs
- Power Consumption: 5V DC, 120mA (without load), 350mA (fully loaded)
- Operating Temperature: 0° to +40°C (32° to 104°F)
- Storage Temperature: -40° to +70°C (-40° to 158°F)
- Humidity: 10% to 90%, RHL non-condensing
- Dimensions (WxDxH): 12 x 7.2 x 2.4cm (4.7” x2.8” x 0.9”)
- Weight: 0.3kg (0.66lbs)
- Included Accessories: Power supply
- Optional Accessories: RK-3T 19” rack adapter
