Doug Fleenor Designs 1211-JBOX
DMX Isolated Splitter PCB Mounted in J-Box Enclosure

OUR PART #:  1211-JBOX

The Doug Fleenor Designs 1211-JBox is an Isolated DMX Splitter PC board mounted in a NEMA Type 1 JBOX.
Learn More
Selected Model Price: $1,400.88
List Price: $1,796.00
Save up to 22%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs 1211-JBOX
Select a Model: (shipping times are approximate)
Qty:

Similar Products

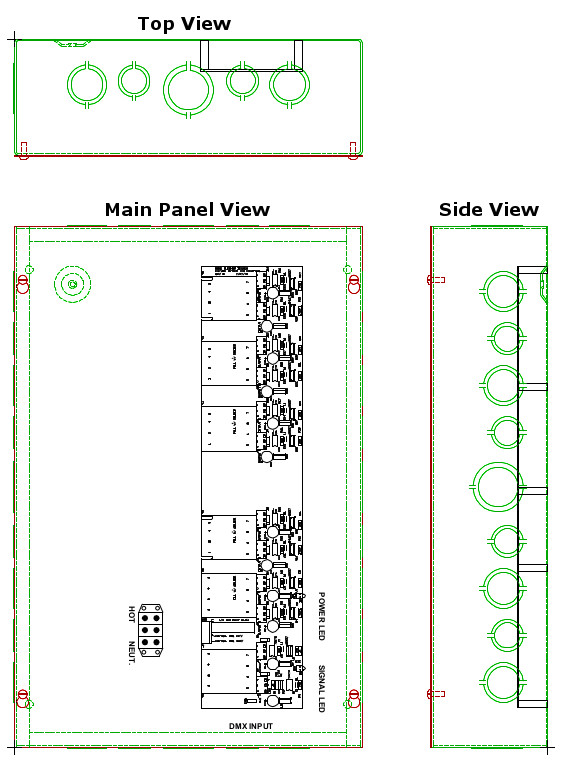

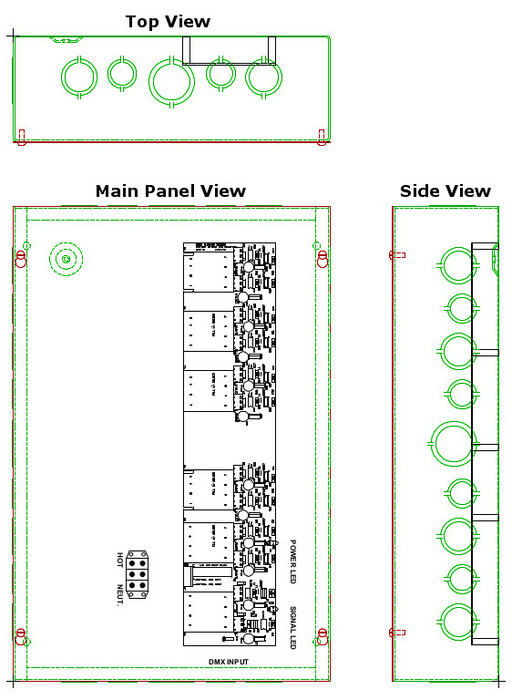

The Doug Fleenor Designs 1211-JBox is an Isolated DMX Splitter PC board mounted in a NEMA Type 1 JBOX. This product is designed for permanent installation of the OEM version of the 1211 Isolated DMX splitter.

This type of mounting is commonly requested; note however-it is the responsibility of the systems integrator to know and understand if this type of packaging is accepted by local regulatory agencies. Contact your Sales Professional for more information.

Doug Fleenor Designs 1211 Specifications:

  • Input circuit:  EIA-485 receiver with 120 ohm termination resistor between +Data and -Data
    (Units with feed through connectors do not have internal termination)
  • Input signal: 0.2 volts minimum, 12 volts maximum
  • Output circuit: EIA-485 driver
  • Connectors: Gold plated 5 pin Neutrik D-1 Series
    (3 pin connectors, terminal blocks, or RJ45 connectors optional-contact your Sales Professional for more information)
  • Feed through: A non-isolated feed through connector is standard on the eleven output model and is optional on the one, three, and five output models.
  • Isolation: 2500 volt optical coupler, 1500 volt split bobbin transformer
  • Power input: 100 - 120 volts, 50/60 hertz, 12 watts (208 - 240 volt optional)

Doug Fleenor Designs JBOX Physical Specifications:

  • JBOX Dimensions: 12" x 18" x 4"

NOTE: All information and specifications subject to change without notice.
