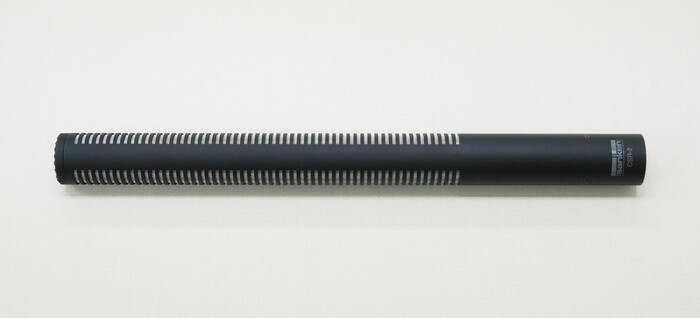

Sanken CSR-2
Long Reach Shotgun Microphone


Our Price: $1,450.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Sanken's CSR-2, a rear rejection shotgun microphone, prides itself on sharp directivity over a wide frequency range. The mic suppresses background sensitivity at wide frequency range via narrow-angle directivity, with line microphone method at mid-high frequency range. It also suppresses background sensitivity with two capsules in the low-mid frequency range. Sharper narrow-angle directivity can be gained through Sanken's CSR-2 due to a long acoustic tube with square capsule being superior in space efficiency. The Sanken CSR-2 is easy to handle and operate by using general purpose 48V Phantom powering.

Sanken CSR-2 Includes:

  • WM-R2 urethane wind screen
  • Instruction manual
  • Measurement data
  • Warranty card
  • Vinyl case

Sanken CSR-2 Specifications:

  • Directivity
    • Mid-High: lobar
    • Mid-Low: Rear rejection by second gradient two capsules
  • Transducer: Back electret condenser x 3
  • Frequency range: 70Hz - 18kHz
  • Sensitivity (nominal at 1kHz): 71mV/Pa (-23dB, 0dB=1V/Pa)
  • Equivalent noise level (A-weighted):
    • Rear rejection ON: 16dB SPL
    • Rear rejection OFF: 15dB SPL
  • Max SPL (1% THD): 123dB SPL
  • Output impedance at 1KHz: 150 ohms
  • Powering: +48┬▒4V phantom
  • Current consumption: 4.5mA
  • Weight: 170g
  • Dimensions: 250mm x 22mm (diameter)
  • Surface finish: matte black
  • Connector:  XLR-3M
