Interactive Technologies CS-940
CueServer 2 DIN Controller

OUR PART #:  CS-940

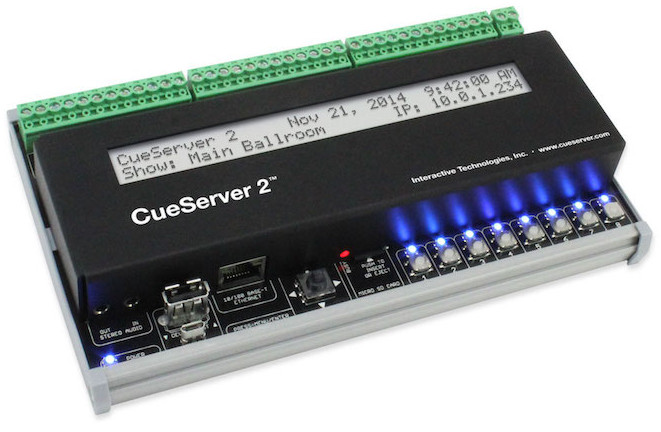

The Interactive Technologies CueServer 2 CS-940 is a unique lighting control solution featuring the most comprehensive combination of stand-alone show playback...
Learn More
Our Price: $1,931.16
List Price: $2,299.00
You save 16%!
Write the first review.
Interactive Technologies CS-940
Qty:
In Stock

Related Products

The Interactive Technologies CueServer 2 CS-940 is a unique lighting control solution featuring the most comprehensive combination of stand-alone show playback, architectural lighting control, show control, and system integration functions in one easy-to-use package.

CueServer is a robust, elegantly packaged Ethernet-based lighting controller that is small in size, but big in capabilities! A powerhouse of features, CueServer can seamlessly blend stand-alone architectural and show control functions to produce elaborate playback systems custom tailored to your specific needs.

CueServer is ideal for LED displays, architectural lighting, retail projects, museum attractions, theme parks, trade show exhibits, animated signs, churches, water fountains and so much more. CueServer easily scales from the smallest single-fixture project to large-scale networked solutions.

CueServer has the capability to manage entertainment style lighting playback and sophisticated architectural control simultaneously. Networked button stations, LCD touch screens, and apps for mobile devices round out the CueServer family.

CueServer can function as a simple stand-alone playback controller, an architectural lighting processor, a show controller, or even as a wireless remote lighting console.

Applications:

  • Commercial
  • Residential
  • Architectural Lighting
  • Entertainment Lighting
  • Trade Shows
  • Themed Entertainment
  • Museums, Houses of Worship
  • Building Management

Interactive Technologies CueServer 2 CS-940 Includes:

- DIN-Rail mounted CueServer 2 with Terminal Blocks
- MountingFlanges
- 2 Universe License

Interactive Technologies CueServer 2 DIN CS-940 Key Features:

  • Completely self-contained lighting playback, architectural processor, andDMX fade engine
  • Seamlessly handles Cue Lists, Presets, and Streaming DMX simultaneously
  • Controls up to 32 universes of DMX
  • Handles up to 32 independent timelines
  • Creates lighting scenes directly or captures from external sources
  • Powerful CueScript scripting language
  • Real-Time clock with astronomical functions and calendar events
  • Multi-show storage and removable microSD memory card
  • Button stations and LCD touchscreens for complete control of system
  • System integration via Ethernet, Serial, Digital I/O, Audio, and more
  • Easily interfaces with Crestron, AMX, Vantage, Control 4, Medialon,Savant, and other automation systems
  • Native programming environment for Mac and Windows


Interactive Technologies CueServer 2 DIN CS-940 Technical Specifications:

Capacity

  • DMX Universes:
    • 2 Universes for base configuration
    • Up to 32 Universes, available as add-on options
  • Playbacks:  Up to 32, depending on number of Universes
  • Cues:  0 thru 999,999 (with 0.01 increments) per Cue Stack *
  • Cue Stacks:  Unique 16 character names *
  • Groups:  0 thru 99,999 *
  • Macros:  0 thru 99,999 *
  • Global Rules:  1,000 *
  • Timer Events:  1,000 *
  • External Button Stations:  1,000 *
    * Limited only by available SD Card storage space

Protocols

  • Ethernet:  UDP, TCP, HTTP, TELNET, SNTP, Streaming ACN (sACN), CueScript, CueStation
  • RS-232, RS-485:  User-Defined ASCII, CueScript

Connections

  • Power:  2-Position Terminal Block
  • Network:  RJ-45, 10/100 Base-T Ethernet
  • I/O:  3 12-Position Pluggable Terminal Blocks providing signals for 2 DMX Inputs, 2 DMX Outputs, RS-232, RS-485, 8 Contact Closure Inputs, 8 Low-Voltage Digital Outputs, Regulated 5V DC and Ground
  • USB:
    • 1 Type-A USB Host Port
    • 1 Micro-B USB Device Port
  • Audio:  2 1/4” Audio Jacks for stereo audio input/output

User Interface

  • LCD:  40 Character x 2 Line (Black on White)
  • Menu Buttons:  5-Way Joystick Navigation Switch
  • Function Buttons:  8 User-Defined Function Buttons with RGB LEDs

Power

  • Input:  -30V DC (12V DC Nominal), 12 Watts
    (operates from 6-30VDC, power supply sold separately)

Memory

  • Removable Card:  Micro SD (supporting cards up to 128GB)

Real Time Clock

  • Standard:  Battery-backed, 1-second resolution
  • Event Triggers:  Time of day, day of week, day of month, week of month, date range, astronomical time (relative to sunrise or sunset +/- specified offset)

Physical

  • Width:  4.8” (123 mm)
  • Length:
    • 8.0” (204 mm), without mounting flanges
    • 8.9” (227 mm), with mounting flanges
  • Height:
    • 1.6” (40 mm), without DIN brackets
    • 2.6” (60 mm), with DIN brackets
  • Weight:  0.9 lbs. (0.41 Kg)

Environmental

  • Operating Temp:  -13° to 158° F (-25° to 70° C)
  • Storage Temp:  -40° to 176° F (-40° to 80°C)
  • Relative Humidity:  5% to 95% noncondensing
  • Altitude:  10,000 feet maximum

Warranty

  • Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service). See Limited Factory Warranty document for more details.
