Yamaha CL1 [C-STOCK MODEL]
48 Mono + 8 Stereo Input Digital Mixer

OUR PART #:  CL1-CSTOCK

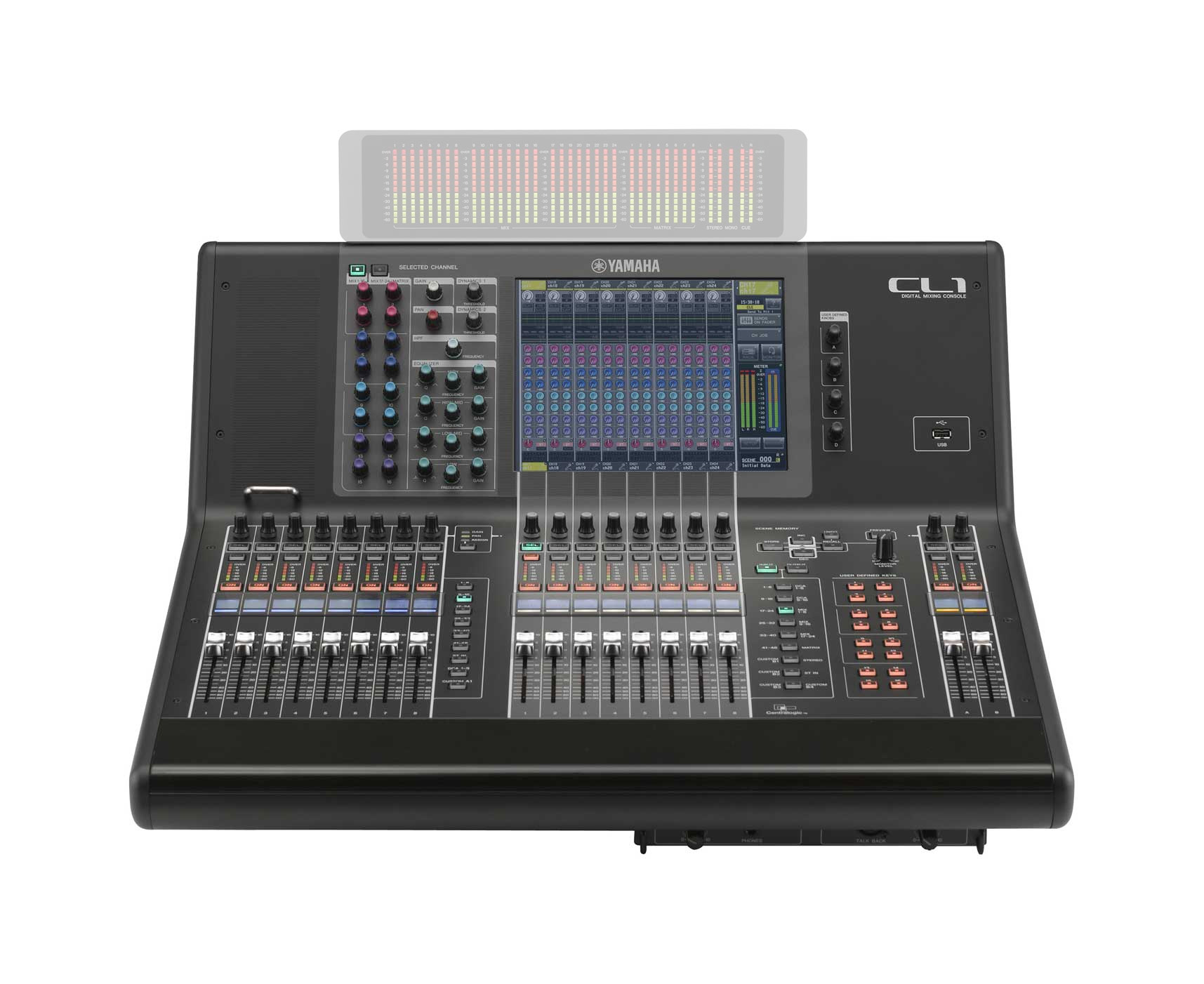

NOTE: Images shown above are for illustrative purposes only; the MBCL meter bridge is NOT included with purchase.
Learn More

Call for price! Not available online.

Similar Products

NOTE: Images shown above are for illustrative purposes only; the MBCL meter bridge is NOT included with purchase. For more information on this and other products, contact your Sales Representative.

NOTE: This is a C-STOCK item. It may have cosmetic flaws, but is guaranteed to be in proper working order. Please contact your sales representative for more information on this and other products.

The Yamaha CL series digital mixing consoles offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Dual 8-fader sections in a space-saving console that can be used alone or cascaded to another CL console for input expansion.

Input channels:  48 mono, 8 stereo
Fader configuration:  8-fader left section, 8-fader Centralogic section, 2-fader master section
Optional MBCL Meter Bridge

A Creative Console for Expressive Engineering
Through analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of "coloring" options that give the sonic craftsmen who use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound.

Efficient, Enjoyable Operation
Yamaha’s Centralogic concept is the core of a refined user interface that offers an unprecedented level of operating efficiency in the CL series, from visual feedback right down to the form and feel of the faders and controls. The CL consoles are also ready for seamlessly integrated remote control and offline editing via an Apple iPad® or other computer. Control is familiar and intuitive, while at the same time offering extensive freedom.

Scalable, Versatile Network Capabilities
CL series consoles feature separate console and I/O rack components that communicate via the Dante™ network audio protocol, allowing fast, efficient design and deployment of capable systems from the most basic to the dazzlingly complex. The ability to add Lake® processing via expansion slots also adds to the system’s versatility and adaptability to the widest range of mixing needs.

Creating the Ideal Natural Sound Platform
The full impact of the most advanced digital audio technology available has been applied throughout the CL series to deliver natural sound that provides a perfect foundation for the artist's and engineer's imagination. This type of sonic quality cannot be realized through specifications alone. Repeated listening evaluations and refinements by some of the most reliable ears and respected minds in the business are an indispensable part of the process.

The Sound Is In the Details
In order to achieve the required level of sound quality, individual components, power supply, grounding, circuit layout, mechanical construction, and countless other details of the initial input stages must be selected and designed with the utmost care. Changing even a single electronic component can alter the sound in unexpected ways, and the tiniest variations must be noted and evaluated as development proceeds. A/D and D/A conversion performance has been maximized as well, right down to making detailed spectral analyses of the AD/DA master clock and adjusting the FPGA clock signal routing so that the most natural, musical sound is achieved. Another critical part of any audio system is the power supply. Of course the capacity of the supply is important, but so are the types of capacitors used, and the grounding must be engineered to ensure the lowest possible impedance. The resulting sound is a natural representation of the input signal, providing an ideal foundation for processing and effects that will lead to the final, polished sound.

Prodigious Quality & Creative Potential
In creating the best possible sound for a profusion of venues and artist requirements, sound engineers draw on their experience and imagination to make a multitude of practical as well as creative decisions. The engineer's primary hands-on tool, the mixing console, must be able to accommodate all of them. Of course the bottom line is sound quality, and this is just one of the areas in which the CL series consoles excel. They also feature some of the most advanced analog circuitry modeling technology available to add character and shape to the sound as needed, while maintaining the utmost sonic quality.

A Digital Approach to Acclaimed Analog Quality
The CL series consoles come equipped with Virtual Circuit Modeling (VCM) models of the renowned Neve Portico 5033 equalizer and Portico 5043 compressor/limiter, both developed through close cooperation with Rupert Neve Designs. A valuable range of other VCM equalizers, compressors, and studio-quality effects is also included. You will hear the difference. Efficient, intuitive operation is essential. VCM, developed at Yamaha, is a circuit modeling concept that effectively simulates the most detailed characteristics of individual circuit components, right down to capacitors and resistors, resulting in astonishingly realistic circuit simulations that easily outclass conventional digital simulations. But accuracy isn't the only consideration. Musicality is essential as well, and VCM modeling delivers both.

Centralogic at the Heart of an Evolved Interface
Yamaha’s Centralogic user interface has already proven its value as the most user-friendly digital operating environment available, even for engineers who were previously only comfortable with analog consoles. Founded solidly on Centralogic roots, the CL series takes intuitive, efficient operation to an even higher level, offering an operating experience that engineers will not only feel immediately familiar with, but will be able to grow with into the future.

Analog Style Intimacy
Clear visual continuity from the Centralogic section’s physical faders to virtual on-screen controls via the console’s elegantly curved panel matches the unambiguous directness of analog console channel modules. Any of the console’s input and output channels can be instantly assigned to the Centralogic section in 8-channel groups.

Selected Channel
The Selected Channel display provides a comprehensive view of the many controls and functions available for the currently selected channel. The corresponding physical controllers to the left of the display are labeled and laid out in the same way as the on-screen controls, for confident access and operation. The CL series includes a number of refinements to this now-standard interface for unprecedented operating ease.

Optimum Operating Feel
The way CL series functions and controls work together is a perfect example of how a whole can be greater than the sum of its parts. Within the larger framework of the user interface, the visibility, feel, and precision of individual faders, knobs, and switches are an essential part of the overall operating experience. The visual flow of the control layout across the consoles’ sweeping curves makes a significant contribution to smooth operation as well. The outstanding balance of the entire system, plus refinements such as programmable channel names/colors and user defined knobs, add up to operation that is, in a word, sublime.

Ergonomic Faders
No detail of form or function has been overlooked, and the elegant fader knobs even have non-slip inserts that provide ideal friction for smooth, slip-free fades. Visibility is important too, so the knob edges are sculpted to provide a clear view of the fader scale from just about any angle.

Editable Channel Names and Colors
Editable channel name displays above each fader automatically switch to a larger character size for short names, and show pan and fader values as well. Below each channel name display is a color bar that illuminates in any of eight selectable colors, the same as those used in the central touch screen, for at-a-glance channel and group identification. Brightness can be adjusted for optimum visibility under any ambient lighting conditions.

Direct Access to the Parameters You Need
The User Defined Knobs provided on the CL series consoles will quickly achieve the same status as the User Defined Keys provided on Yamaha digital consoles. Almost any of the console’s variable parameters can be assigned to the four User Defined Knobs for direct, instant access. Another advanced control feature is Custom Fader Bank selection, allowing the faders in each section to be instantly reordered as required.

Harmony in Form and Function
The sweeping form of the CL consoles is not only elegant, but it provides the best possible view of all controls and displays from the operator’s position. The visual continuity from the Centralogic faders to the display is seamless. The hand rest is genuine oak with an ebony finish that matches the visual and tactile sophistication of the overall design.

Dante for Fast, Flexible Networking
The complexity and variety of today’s live sound systems makes fast, adaptable configuration and setup capability vital. Because the highest level of sonic performance must be maintained, CL series consoles use the Dante network protocol developed by Audinate. This allows flexible connection to multiple I/O rack units configured and located according to the needs of the application, while at the same time providing redundancy for superior reliability.

Up to Eight I/O Rack Units
Dante directly supports star network configurations, so up to eight I/O rack units can be connected to any single CL series console and conveniently located wherever they are needed most. A few simple DIP switch settings are all that is required to change to daisy-chain networking as required.

Yamaha CL1 Includes:

  • Owner’s Manual
  • Dust Cover
  • Power Cord

Yamaha CL1 Features:

  • Support for AES67 interpoerability standard allowingcommunication with Ravenna, Q-LAN, Livewire and other audio networks, forsignificantly improved system expandability.
  • The Dante Device Lock feature that prevents unwantedchanges to Dante settings is also supported, enhancing system security inhalls and installations that are routinely used by outside operators oroperators who bring their own equipment.
  • The number of supported Shure wireless receivers hasalso increased. Version 4.1 additionally supports non-Dante devices includingthe AXT400, QLXD4 and ULXD4. Control and monitoring are supported for alldevices, plus transmitter gain control for the AXT400.
  • Other new features include one-operation EQ typeselection, improved RTA visibility and patch window effect type and channelname displays.
  • Mounting and patching of the Audinate Dante-MY16-AUD2 mini-YGDAI card andd&b audiotechnik DS10 Audio Network Bridge are also supported.

Yamaha CL1 Specifications:

  • Sampling Frequency:
    • Internal:  44.1kHz/48kHz
    • External:  44.1kHz +4.1667%,+0.1%, –0.1%, –4.0%;±200ppm / 48kHz +4.1667%, +0.1%, –0.1%, –4.0%; ±200 ppm
    • Signal Delay:  Less than 2.5ms, OMNI IN to OMNIOUT, Fs = 48kHz
    • Fader:  100mm motorized, Resolution =1024steps,+10dB to –138dB, –8dB all faders
    • Frequency Response:  +0.5, –1.5dB 20Hz - 20kHz, refer to +4dBu output @ 1kHz, OMNI IN to OMNI OUT
    • Total Harmonic Distortion (*1):  < 0.05% 20Hz - 20kHz @ +4dBu into 600ohms, OMNI IN to OMNI OUT, Input Gain = Min.
  • Hum & Noise (*2):
    • 128 dBu typ., Equivalent Input Noise, Input Gain =Max.
    • 88 dBu, Residual output noise, ST master off
  • Dynamic Range:
    • 112dB typ., DA Converter,
    • 108dB typ., OMNI IN to OMNI OUT, Input Gain = Min.
  • Crosstalk @ 1kHz:  –100dB (*3), adjacent OMNIIN/OMNI OUT channels, Input Gain=Min.
  • Dimensions (W x H x D):  648mm x 299mm(*4 ) x667mm
  • Net Weight:  24kg (*4)
  • Power Requirements (wattage):
    • 170W, Internal Power Supply
    • 200W, Simultaneous use of Internal PSU and External PW800W
  • Power Requirements (US/Canada):  120V 60Hz
  • Temperature Range:
    • Operating temperature range:  0-40°C
    • Storage temperature range:  –20-60°C
  • Optional Accessories:
    • Meter Bridge MBCL
    • Mini-YGDAI cards
    • Gooseneck Lamp LA1L
    • Power Supply PW800W
    • Power Supply Link Cable PSL360

*1 Total Harmonic Distortion is measured with 18dB/octave filter @ 80 kHz
*2 Hum & Noise are measured with A-Weight filter.
*3 Crosstalk is measured with a 30dB/octave filter @ 22 kHz
*4 Excluded MBCL optional meter bridge.
