Pathway Connectivity Cognito2 Pro2048
DMX 2048-Output Lighting Console


Call for price! Not available online.
List Price: $5,900.00

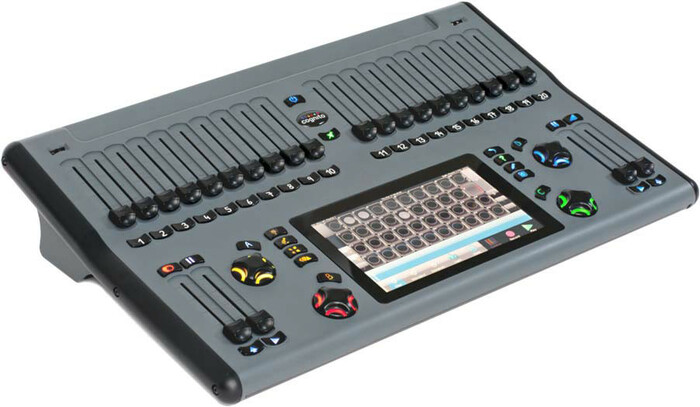

Pathway Connectivity's Cognito2 Pro2048 lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers, moving lights and color-changing LEDs a breeze.  With over twice the universe count as the original Cognito, and a new display output for an optional high definition external monitor (sold separately), Cognito2 is quickly becoming the go-to console for small to medium size churches, schools and other halls of public assembly.

Pathway Connectivity Cognito2 Pro2048 Features:

  • Includes Wide-range input
  • Includes 24VDC output power supply and dust cover
  • External high definition monitor support provides continual fixture grid and playback information (monitor sold separately-contact your Sales Professional for more information)
  • No practical limit on the number of Memories, Cues, or Playlists
  • Pathport Protocol, ANSI E1.31 sACN, and Art-Net
  • Power-over-Ethernet operation
  • Convection cooled - fanless, silent operation
  • Natural language control uses "real-world" terms and values, not channel numbers and arbitrary DMX levels
  • Continually maintained fixture library of over 1000 commonly available multi-attribute lights
  • 7" capacitive touchscreen
  • Context-sensitive help overlays
  • Color backlit faders, buttons, and encoders
  • Twenty pageable channel/memories faders with configurable bump buttons
  • Two playbacks, each with an intensity fader, GO button, and PAUSE button
  • Four rotary encoder wheels with associated tool buttons
  • "PIN" button for 2-scene operation
  • Four shortcut buttons for selection of Intensity, Color, Position, and Shape fixture attributes
  • Four shortcut buttons for Help, Edit, Record, and Release functions
  • Two DMX512-A output ports
  • One DMX512-A input port - can act as a submaster extension wing when connected to a DMX-based fader console
  • DIN5 ports for MIDI IN, OUT and THRU
  • Two USB ports on the top panel, for saving shows or powering LED worklight (sold separately-contact your Sales Professional for more information)
  • Two USB ports on rear panel for peripherals such as mice and keyboards
  • Rackmount option (sold separately-contact your Sales Professional for more information)
  • neato™  iOS app extensions for remote control of lights and memory playback

Pathway Connectivity Cognito2 Pro2048 Outputs:

  • Output addresses:  2048*
  • Pathport Protocol:  Yes
  • ANSI E1.31 sACN:  Yes
  • Art-Net:  Yes
  • DMX512 OUT ports:  2
  • DMX512 IN port:  Yes
  • MIDI show control:  Yes
  • RS232 port:  Yes
  • Contact closure:  Yes

*Note: Channel output above 1024 is by Ethernet protocol only.  Additional hardware, such as a Pathport, required to convert signal to DMX.
