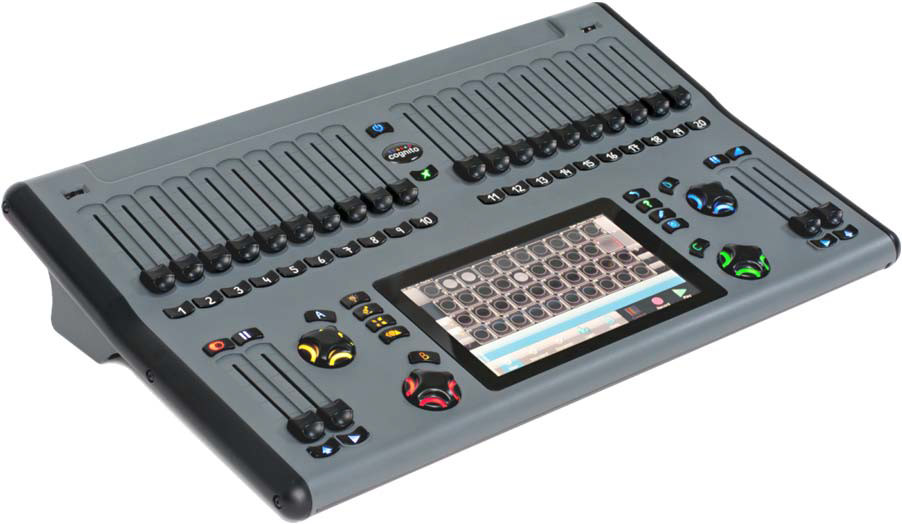

Pathway Connectivity Cognito2 Pro1536
DMX 1536-Output Lighting Console


Pathway Connectivity's Cognito 2 Pro1536 lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers...
Learn More
Our Price: $4,866.75
List Price: $5,150.00
You save 6%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Pathway Connectivity Cognito2 Pro1536
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Pathway Connectivity's Cognito2 Pro1536 lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers, moving lights and color-changing LEDs a breeze.  With over twice the universe count as the original Cognito, and a new display output for an optional high definition external monitor (sold separately), Cognito2 is quickly becoming the go-to console for small to medium size churches, schools and other halls of public assembly.

Pathway Connectivity Cognito2 Pro1536 Features:

  • Includes Wide-range input
  • Includes 24VDC output power supply and dust cover
  • External high definition monitor support provides continual fixture grid and playback information (monitor sold separately-contact your Sales Professional for more information)
  • No practical limit on the number of Memories, Cues, or Playlists
  • Pathport Protocol, ANSI E1.31 sACN, and Art-Net
  • Power-over-Ethernet operation
  • Convection cooled - fanless, silent operation
  • Natural language control uses "real-world" terms and values, not channel numbers and arbitrary DMX levels
  • Continually maintained fixture library of over 1000 commonly available multi-attribute lights
  • 7" capacitive touchscreen
  • Context-sensitive help overlays
  • Color backlit faders, buttons, and encoders
  • Twenty pageable channel/memories faders with configurable bump buttons
  • Two playbacks, each with an intensity fader, GO button, and PAUSE button
  • Four rotary encoder wheels with associated tool buttons
  • "PIN" button for 2-scene operation
  • Four shortcut buttons for selection of Intensity, Color, Position, and Shape fixture attributes
  • Four shortcut buttons for Help, Edit, Record, and Release functions
  • Two DMX512-A output ports
  • One DMX512-A input port - can act as a submaster extension wing when connected to a DMX-based fader console
  • DIN5 ports for MIDI IN, OUT and THRU
  • Two USB ports on the top panel, for saving shows or powering LED worklight (sold separately-contact your Sales Professional for more information)
  • Two USB ports on rear panel for peripherals such as mice and keyboards
  • Rackmount option (sold separately-contact your Sales Professional for more information)
  • neato™  iOS app extensions for remote control of lights and memory playback

Pathway Connectivity Cognito2 Pro1536 Outputs:

  • Output addresses:  1536*
  • Pathport Protocol:  Yes
  • ANSI E1.31 sACN:  Yes
  • Art-Net:  Yes
  • DMX512 OUT ports:  2
  • DMX512 IN port:  Yes
  • MIDI show control:  Yes
  • RS232 port:  Yes
  • Contact closure:  Yes

*Note: Channel output above 1024 is by Ethernet protocol only.  Additional hardware, such as a Pathport, required to convert signal to DMX.

Rackmount Kit for Cognito
Pathway Connectivity 0700-7901 Rackmount Kit for Cognito
Pathway Connectivity's 0700-7901 is a 7U Rackmount Adapter Kit designed for their Cognito² lighting console (sold separately).
