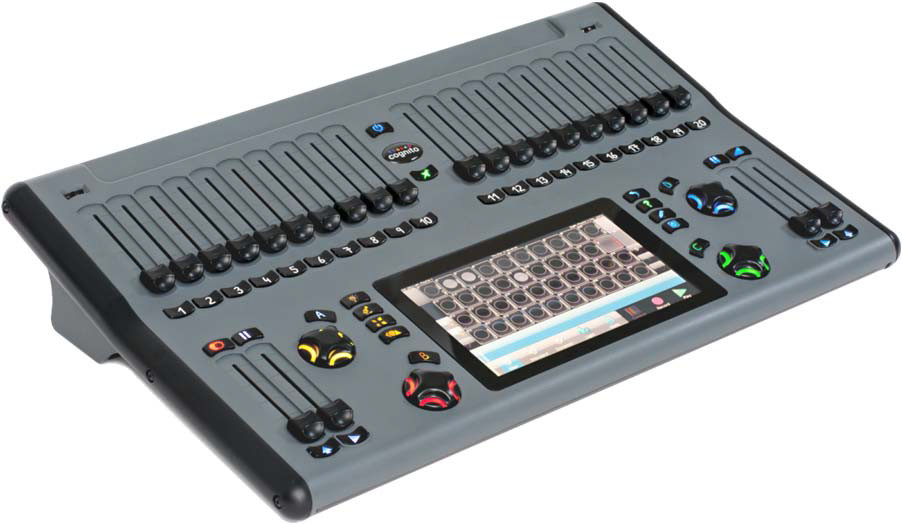

Pathway Connectivity Cognito2 Starter
DMX 512- Output Lighting Console


Pathway Connectivity's Cognito 2  Starter lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers, moving lights...
Learn More
Our Price: $2,740.50
List Price: $2,900.00
You save 6%!
Write the first review.
Pathway Connectivity Cognito2 Starter
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Pathway Connectivity's Cognito2 Starter lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers, moving lights, and color-changing LEDs a breeze.  With over twice the universe count as the original Cognito, and a new display output for an optional high definition external monitor (sold separately), Cognito2 is quickly becoming the go-to console for small to medium size churches, schools and other halls of public assembly.

Pathway Connectivity Cognito2 Starter Features:

  • Includes 24VDC output power supply and dust cover
  • External high definition monitor support provides continual fixture gridand playback information (monitor sold separately-contact yourSales Professional for more information)
  • No practical limit on the number of Memories, Cues, or Playlists
  • Pathport Protocol, ANSI E1.31 sACN and Art-Net
  • Power-over-Ethernet operation
  • Convection cooled - fanless, silent operation
  • Natural language control uses "real-world" terms and values, not channelnumbers and arbitrary DMX levels
  • Continually maintained fixture library of over 1000 commonly availablemulti-attribute lights
  • 7" capacitive touchscreen
  • Context-sensitive help overlays
  • Color backlit faders, buttons, and encoders
  • Twenty pageable channel/memories faders with configurable bump buttons
  • Two playbacks, each with an intensity fader, GO button, and PAUSE button
  • Four rotary encoder wheels with associated tool buttons
  • "PIN" button for 2-scene operation
  • Four shortcut buttons for selection of Intensity, Color, Position, andShape fixture attributes
  • Four shortcut buttons for Help, Edit, Record, and Release functions
  • Two DMX512-A output ports
  • One DMX512-A input port - can act as a submaster extension wing whenconnected to a DMX-based fader console
  • DIN5 ports for MIDI IN, OUT and THRU
  • Two USB ports on the top panel, for saving shows or powering LED worklight(sold separately-contact your Sales Professional for moreinformation)
  • Two USB ports on rear panel for peripherals such as mice and keyboards
  • Rackmount option (sold separately-contact your Sales Professionalfor more information)
  • neato™  iOS app extensions for remote control oflights and memory playback

Pathway Connectivity Cognito2 Starter Outputs:

  • Output addresses:  512
  • Pathport Protocol:  Yes
  • ANSI E1.31 sACN:  No
  • Art-Net:  No
  • DMX512 OUT ports:  1
  • DMX512 IN port:  Not Enabled
  • MIDI show control:  Not Enabled
  • RS232 port:  Not Enabled
  • Contact closure:  Not Enabled
