Pathway Connectivity Cognito² Pro Compact Lighting Console with 512 Outputs

OUR PART #: COGNITO2-PRO-512 MFR #: PWCOG DT 512

Copied to clipboard

Pathway Connectivity's Cognito2 Pro512 lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers... ...Read more

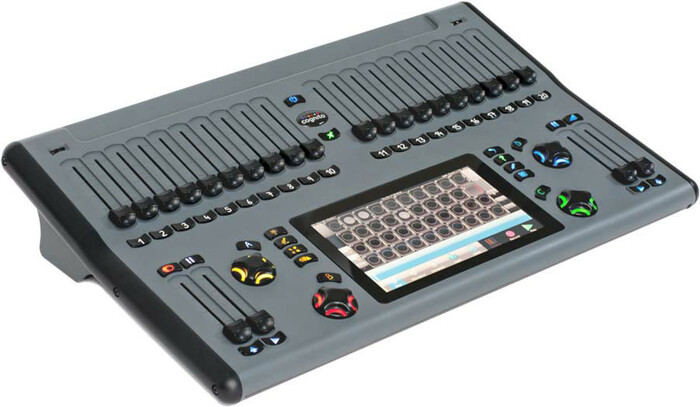

Pathway Connectivity Cognito² Pro Compact Lighting Console With 512 Outputs Image 1
Pathway Connectivity Cognito² Pro Compact Lighting Console With 512 Outputs
Our Price: $4,001.54
List Price: $4,455.00
You save 10%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Pathway Connectivity's Cognito2 Pro512 lighting console offers an easy and intuitive programming interface that makes control over incandescent dimmers, moving lights and color-changing LEDs a breeze. With over twice the universe count as the original Cognito, and a new display output for an optional high definition external monitor (sold separately), Cognito2 is quickly becoming the go-to console for small to medium size churches, schools and other halls of public assembly.

Pathway Connectivity Cognito2 Pro512 Features:

  • Includes power supply and dust cover
  • External high definition monitor support provides continual fixture grid and playback information (monitor sold separately-contact your Sales Professional for more information)
  • No practical limit on the number of Memories, Cues, or Playlists
  • Pathport Protocol, ANSI E1.31 sACN, and Art-Net
  • Power-over-Ethernet operation
  • Convection cooled - fanless, silent operation
  • Natural language control uses "real-world" terms and values, not channel numbers and arbitrary DMX levels
  • Continually maintained fixture library of over 1000 commonly available multi-attribute lights
  • 7" capacitive touchscreen
  • Context-sensitive help overlays
  • Color backlit faders, buttons, and encoders
  • Twenty pageable channel/memories faders with configurable bump buttons
  • Two playbacks, each with an intensity fader, GO button, and PAUSE button
  • Four rotary encoder wheels with associated tool buttons
  • "PIN" button for 2-scene operation
  • Four shortcut buttons for selection of Intensity, Color, Position, and Shape fixture attributes
  • Four shortcut buttons for Help, Edit, Record, and Release functions
  • Two DMX512-A output ports
  • One DMX512-A input port - can act as a submaster extension wing when connected to a DMX-based fader console
  • DIN5 ports for MIDI IN, OUT and THRU
  • Two USB ports on the top panel, for saving shows or powering LED worklight (sold separately-contact your Sales Professional for more information)
  • Two USB ports on rear panel for peripherals such as mice and keyboards
  • Rackmount option (sold separately-contact your Sales Professional for more information)
  • neato™ iOS app extensions for remote control of lights and memory playback

Pathway Connectivity Cognito2 Pro 512 Outputs Specifications

  • Output addresses: 512
  • Pathport Protocol: Yes
  • ANSI E1.31 sACN: Yes
  • Art-Net: Yes
  • DMX512 OUT ports: 2
  • DMX512 IN port: Yes
  • MIDI show control: Yes
  • RS232 port: Yes
  • Contact closure: 3
