Product Overview

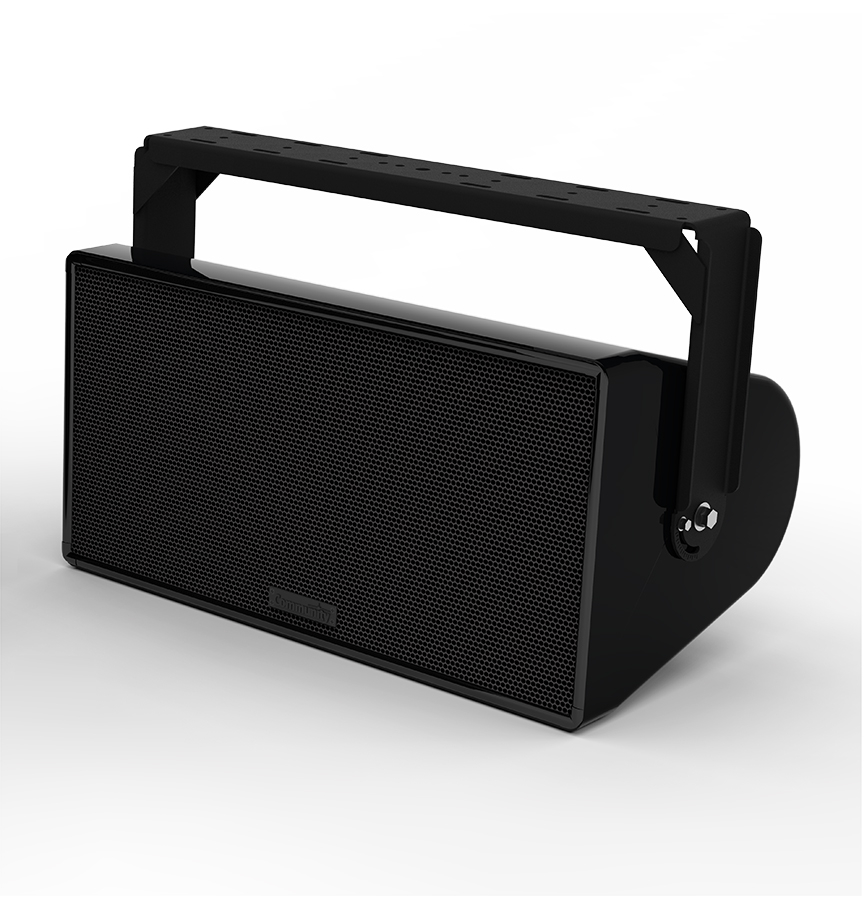

Community's WX-1226 is a premium quality, large format, full-range loudspeaker system. The driver complement consists of a 12" (305mm) high power low frequency driver and a 1.4" (36mm) exit / 2.87" (72.9mm) edgewound voice coil compression driver. The large format rotatable horn flare delivers well-controlled 120° x 60° dispersion, and utilizes high order crossovers to minimize band overlap.
The Community WX-1226 is used in passive operating mode, and that mode is designed to deliver impressive performance without the use of a processor. A custom bi-amp option allows greater system flexibility by enabling a compatible processor to enhance the LF response.
Community's WET X Series is designed to provide high quality music and voice reproduction in applications requiring extreme weather-resistance. The WET X enclosure features unmatched durability and ruggedness, and is engineered for use in permanent installations. The loudspeaker enclosure and faceplate are constructed of multi-layer glass composite lined with 18mm (7-layer) marine grade plywood, resulting in extreme structural strength. All exposed hardware is stainless steel or powder-coated aluminum extrusion. A weather-resistant 304SS, dual-layer powder-coated horizontal bracket is included for mounting.
Applications
- theme and amusement parks
- outdoor entertainment centers
- cruise ships
- multipurpose outdoor and indoor venues
- stadiums
- music pavilions
- musical fountains
- water parks
Community WX-1266 Features:
- 120° x 60° rotatable horn pattern
- Large format waveguide delivers excellent patterncontrol
- 1.4" (36mm) exit / 2.87" (72.2mm) VC HF transducer
- 12" (305mm) / 3" VC LF weather-treated transducer
- Passive operating mode standard
- All-weather, multi-layer glass composite shell over18mm
- 7-layer marine grade plywood interior
- Dual-layer powder-coated 304 stainless steel mounting bracket (included)
- Stainless steel hardware
- Available with optional built-in 400W transformer for 70V / 100Vapplications
Community WX-1226 Specifications:*
- System
- Loudspeaker Type: Full-range, two-way, weather-resistant
- Operating Range: 40 Hz to 22 kHz (-10 dB)
- Frequency Response: 63 Hz to 18 kHz (-3 dB)
- Max Input Ratings: 600W RMS, 1200W Program 69 volts RMS, 138 volts momentary peak
- Maximum Output: 125 dB SPL / 131 dB SPL (peak)
- Sensitivity (1W / 1m) Free Space SPL: 97 dB (63 Hz - 16 kHz 1/3 octave bands) 97 dB (250 Hz - 4 kHz speech range)
- Nominal Impedance: 8 ohms, 8.5 ohms @160 Hz minimum
- Coverage Pattern: 120° H x 60° V
- Axial Q / DI: 8.57 / 9.33, 2 kHz to 16 kHz
- Crossover Frequency: 1.5 kHz
- Recommended High Pass: 60 Hz 24 dB / Octave
- Low Frequency Transducers
- Driver: 1 x 12" cone, 3" voice coil, weather-treated
- Sensitivity (1W / 1m): 97 dB (70 Hz - 2.2 kHz)
- Power Capacity (Cont/Peak): 600W / 2400W
- Nominal Impedance: 8 ohms
- High Frequency Transducers
- Driver: 1 x 2.87" voice coil / 1.4" exit
- Sensitivity (1W / 1m): 107 dB (1 kHz - 20 kHz)
- Power Capacity (Cont/Peak): 90W / 360W
- Nominal Impedance: 8 ohms
- Physical
- Input Connection: 12' (4m) SJOW #16-gauge cable with stripped ends
- Enclosure: Trapezoidal fiberglass outer shell and face lined and reinforced with 18mm (7-layer) marine grade plywood
- Finish: Black or White gel coat fiberglass
- Mounting/Rigging Provisions:
- Two 1/2"-13 rigging points
- 304SS zinc-rich dual-layer powder-coated bracket(included)
- Integral 1/2"-13 safety cable mounting point
- Grille:
- 3-Layer Weather-Stop™ backing
- 304SS zinc-rich dual-layer powder-coated
- Environmental: IP56 per IEC 529
- Dimensions – H x W x D (horizontal orientation): 16" x 30.5" x 17" (406 x 775 x 432 mm)
- Loudspeaker / Unit Weight: 82 lbs (37.3 kg) / 98 lbs (44.5 kg) with bracket
- Shipping Weight: 122 lbs (55.3 kg)
- Configure-to-Order (CTO) Options:
- Custom Colors
- Custom color exterior-grade paint finish, RAL or custom color matching available
- Extra Hang Points: 2 or 3 additional per side (several options available)
- Bi-amp: Includes 4-conductor, 4-color SJOW cable
- Transformer:
- 70V: 400W / 200W / 100W
- 100V: 400W/200W
- Cable: Custom length
- *All wattage figures are calculated using the rated impedance.
