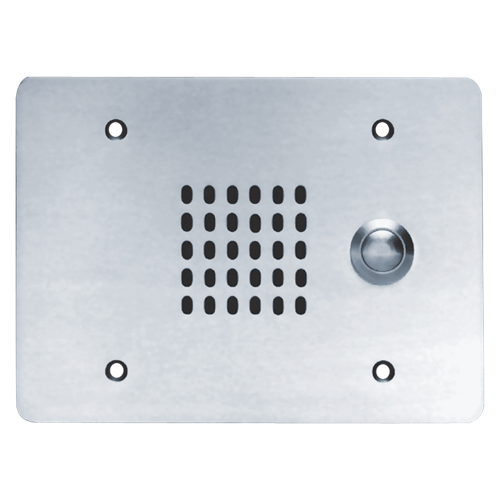

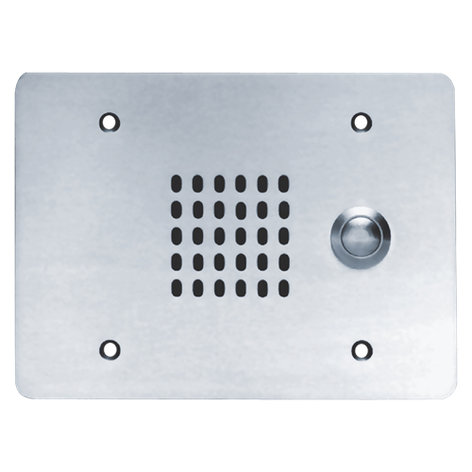

Atlas IED VPCS-3GPB-245 25V, 3 Gang, Vandal Proof Intercom Station with Cone Loudspeaker, Call Switch

Atlas-Sound’s VPCS Series 3-gang intercom systems - patent pending - provide superior intelligibility for one or two-way communication in high-security applications. Units are designed for installation in detention, correctional, and institutional facilities. VPCS intercom stations are also ideal for use in high-risk public-access spaces such as hallways, lobbies, and parking garages. The units can withstand abuse, moisture, corrosion, dust, vibration, and temperature extremes from -10° to 150° F.

Atlas Sound VPCS-3GPB-245 Features:

• Shallow Depth of 2 1/8" (54mm) for Mounting in Standard 2 & 3-Gang Back Boxes
• Moisture-Resistant 2 1/2" (64mm) Diameter Cone Loudspeaker
• Offers Smooth Loudspeaker Response with High Output in the Speech Range
• Two-Piece Die-Cast Baffle System Protects the Loudspeaker Assembly from Vandalism
• Choice of Basic or Call Switch Equipped Models
• Unit Design Facilitates Quick and Easy Service Procedures
• Transformer Models Include 1/4,1/2, 1, and 2 Watt Taps at 25V
• Durable 11-Gauge, Stainless Steel Face Plate

Atlas Sound VPCS-3GPB-245 Specifications:

• Frequency Response: 350Hz - 45kHz
• Power Handling: 5 Watts
• Nominal Impedance: 45 Ohm
• Cone Material: Phenolic Impregnated Cloth
• Power Taps: .25, .5, 1, 2
• Sensitivity: 88dB
• Transformer: 25V
• Height: 4 3/4" (12.07 cm)
• Width: 6 3/8" (16.19 cm)
• Depth: 2 1/8" (5.398 cm)
• Shipping Weight: 4.00 lbs (1.81 kgs)
