ART Digital MPA-II
2-Channel Tube Microphone Preamplifier with A/D Conversion

OUR PART #:  DMPAII

Get that much-loved tube sound for your microphones without breaking the bank with ART's Digital MPA-II 2-channel tube microphone preamplifier.
Learn More
Our Price: $399.00
List Price: $539.00
You save 26%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART Digital MPA-II
Qty:
In Stock

Similar Products

Get that much-loved tube sound for your microphones without breaking the bank with ART's Digital MPA-II 2-channel tube microphone preamplifier. This preamp delivers all the same features of the ProMPA with the inclusion of a digital output for expanded versatility. Like the ProMPA-II, each input circuit has 48V phantom power and features variable input impedance which can radically vary the overall performance of any high-quality dynamic or ribbon microphone. The Digital MPA-II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.

The input section of the Digital MPA-II operates at either a low or high plate voltage applied to the two integrated hand-selected 12AX7 tubes for wider variation of preamp tone and performance. Large back-lit analog VU output meters display output levels while multi-colored LED arrays, with average or peak hold, show tube gain and digital output levels.

In addition to XLR and 1/4" analog outputs, the Digital MPA-II features a high quality A to D converter which offers digital connectivity on S/PDIF, ADAT, or AES/EBU outputs. A rotary control on the front panel allows selection of format and sample rates from 44.1 to 192 kHz and 16 bit dithering. There is also a push button for, and two wordclock jacks, allowing loop-through.

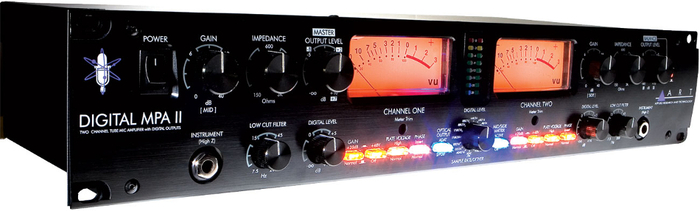

The Digital MPA-II comes in a standard 2U space rack-mountable steel chassis, with CNC routed black anodized aluminum face panel.

ART Digital MPA-II Features:

  • Variable Input Impedance For Flexible Microphone Voicing (150 Ohms To 2400 Ohms)
  • Selectable Plate Voltage
  • Large VU Meters
  • Backlit Function Switches
  • Discrete Class-A Input Microphone Preamplifier
  • Low Noise at Lower Gain Settings
  • Extremely Low Total Harmonic Distortion (THD)
  • Wide Frequency Response
  • Additional Front Mounted Instrument Input Jack
  • Supports Mid/Side Miking Technique
  • Operates at +4dBm/-10dBv Output
  • Selectable Stereo/Dual Operation of Output Controls
  • Automatic Instrument Input Selection
  • 24 - 204 kHz External sample rate
  • 44.1, 48, 88.2, 96, 176.4, 192 kHz Internal sample rates
  • 24/16 bit switchable dithering
  • Wide dynamic range A/D
  • Rotary Encoder for quick selection of sample rate
  • Separate analog and digital output level controls
  • Digital Level LED meters display both Average and Peak level
  • ADAT optical I/O
  • Sync to incoming ADAT data rate
  • Switch selectable optical output (S/PDIF or ADAT)
  • AES/EBU and S/PDIF outputs
  • Two wordclock jacks allowing loop through

ART Digital MPA-II Specifications:

  • Analog Section:
    • Frequency Response:
      • Normal Plate Voltage:  15 Hz - 48 kHz (+0, -1dB)
      • High Plate Voltage:  15 Hz - 120 kHz (+0, -1dB)
    • Dynamic Range:  >110dB (A-weighted)
    • CMRR:  >90dB
    • THD:  <0.005% (typical)
    • Equivalent Input Noise:  -129dBu (XLR, A-weighted)
    • Maximum Input Level:  +19dBu (cannon)
    • Maximum Instrument Input:  +17dBu
    • Input Impedance:  150 - 3000 Ohms adjustable (XLR); >800 kOhms (instrument)
    • Maximum Output Level:  +27dBu (XLR)
    • Output Impedance:  <47 Ohms (XLR)
    • Maximum Gain:  75dB
    • Meter Calibration:  0 VU = +4dBu output (+4dBu mode); 0 VU = -10dBV output (-10dB mode)
    • High Pass Filter:  Single Pole, 10 - 200 Hz adjustable
  • Digital Section:
    • A/D Frequency Response:
      • 44.1 kHz Sample Rate:  10 Hz - 21.25 kHz (+0, -1dB)
      • 88.2 kHz Sample Rate:  10 Hz - 42.50 khz (+0, -1dB)
      • 196 kHz Sample Rate:  10 Hz - 81 kHz (+0, -1dB)
    • A/D Dynamic Range:  >112dB A-weighted (typical)
    • A/D THD:  <0.001% @ 1 kHz (typical)
    • A/D Input Sensitivity:  +12dBu min
    • A/D Insert Input Impedance:  >10 kOhms
  • Power Requirements:  105 to 125 VAC/60 Hz
  • Dimensions (HxWxD):  3.50" x 19.0" x 8.75" (88 mmx 482 mm x 222 mm)
  • Weight:  10.5 lbs (4.7 kg)
