Draper Shade and Screen 140036QL
109" 16:10 Format Access FIT/Series V with Quiet and Low Voltage Motor

OUR PART #:  140036QL

The 140036QL from Draper is one of their Access FIT/Series V electric projection screens.
Learn More
Our Price: $2,885.00
List Price: $3,605.72
You save 20%!
Write the first review.
Draper Shade and Screen 140036QL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The 140036QL from Draper is one of their Access FIT/Series V electric projection screens. This model offer a 109" diagonal screen size in a 16:10 format that includes a quiet and low voltage motor complimented with a Matt White XT1000V screen surface finish.

Draper introduced the Access line of projection screens as a breakthrough in screen design - and, the Access has been redesigned, again based on customer input. The improvements make the Access even easier to install. First, Draper has repackaged as many sizes as possible into a compact housing, less than 6" tall. Access FIT utilizes the same rugged components as larger Access screens, with a smaller footprint. It is engineered to fit into tight openings above the ceiling--places where you thought the screen would have to be exposed. Access FIT/Series V offers screen sizes through 104” wide. The Access FIT/Series V is a motorized screen that is tab-tensioned for ceiling –recessed installation.

You can install the case during the “dirty” phase of the construction process and keep the screen safe until you install the projector. The screen (motor-in-roller and attached viewing surface) installs in seconds with preset latching roller brackets and electrical pin connectors. This eliminates job site damage. Screens may be installed in cases up to 20” wider than the standard case lengths.

An Access case can be ordered and installed prior to final selection of size, type and format. If ordering a case in advance of the screen, the price of the case will be deducted when the screen is ordered. Specify case length at time of order. Some optional controls, including LVC-IV may be built into the case. If you want built-in Low Voltage Motor, Quiet Motor or control options you must specify when ordering to assure compatibility with your screen.

The Matt White XT1000V surface finish is a perfect matt white diffusing surface. Recommended for use with all types of projectors provided ambient light can be reasonably controlled. Reflects a uniformly bright image over complete 180° viewing cone with precise resolution and accurate color balance. This surface was previously named “M1300.”This surface is GREENGUARD Children and SchoolsSM certified. Available with black backing and without.

Draper 140036QL Features:

  • Redesigned bottom closure panel with new hinge system allows the closure panel to hang in place when opened, or it can be easily removed.
  • Adjustable or removable hoisting brackets are now included to allow for easy lifting during installation

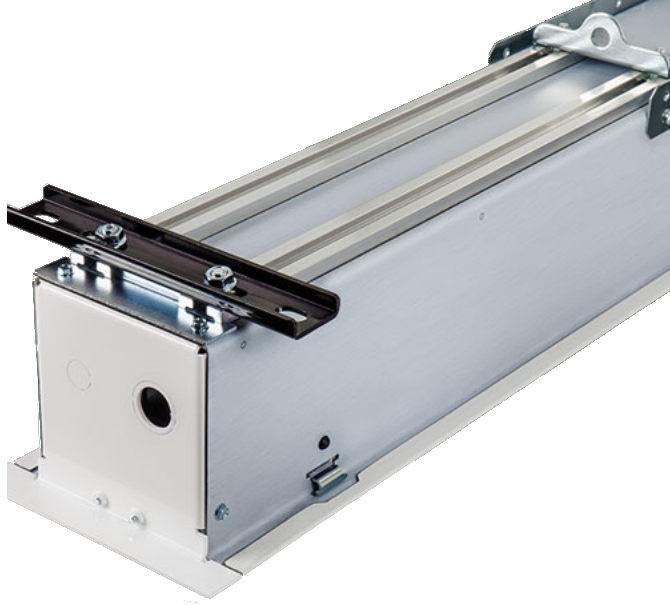

  • Case dimensions 7-3/4"W x 5-11/16"H (19.7cm x 14.4cm) including flange and mounting brackets
  • Paint finish is flat to appear similar to typcial ceiling grid flat colors
  • Extra drop above image area available upon request, (specify color, black is standard). May increase case length.
  • Custom sizes available
  • Quick connect wiring connections allows for installation of the case early and addition of the screen later
  • Built-in Quiet, Low Voltage and 220V options available
  • Plenum rated case (UL approved “Suitable for Use in Environmental Air Space”)
  • Includes one 110-120V 3-position switch
  • Warranted for one year against defects in material and workmanship
  • US Patent Nos. 6,137,629; 6,421,175; 6,532,109; 6,816,308; 7,559,707

Draper 140036QL Specifications:

  • Part number:140036QL
  • Surface material: Matt White XT1000V
  • Image Format: 16:10
  • Diagonal size: 109"
  • Image/Viewable area: 57 1/2" x 92"
  • Standard 12" black drop
  • Case length: 119"
  • Product weight: 80 pounds
  • Shipping weight: 103 pounds
