Octasound RASX4
4-Channel Remote Audio Zone Controller

OUR PART #:  RASX4

The Octasound RASX4 is a one of a kind four-channel commercial audio selector. For the end user it is very simple to operate; select a channel and turn the volume up or down.
Learn More
Our Price: $525.00
List Price: $750.00
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Octasound RASX4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Octasound RASX4 is a one of a kind four-channel commercial audio selector. For the end user it is very simple to operate; select a channel and turn the volume up or down. No user manuals or constant employee training are required. For the installer, this controller is capable of chaining together to provide a facility with a multi-zone controlled audio system that is easily expandable.

Pairing with an RAMX2 - Unlimited Configurations
By pairing the Octasound RASX4 with the RAMX2 mixer (sold separately)an array of sound system congurations can be satisifed for arenas, gyms, hotels, restaurants, retail, schools, churches, warehouses and more. The RAMX2 Line A and B outputs can be switched into any of the four input channels. This feature allows the RASX4 to turn the mixers off or on and control their maximum allowable volume. Utilizing the RAMX2 mixer’s constant level output on the extra channel (LINE B), other zone ampliers' inputs can receive an audio signal that does not vary up or down with the RAMX2 volume controls. This can be useful, to avoid the RAMX2 varying the audio levels into a hearing assist system or another acoustically isolated zone.

Custom Engraved Panels
Throw out the ugly markers and stickers that are commonly used on other plastic panels to indicate zone control and channel selection. Octasound's RASX4 is the only audio selector system with custom engraved aluminum panels for a tough and truly professional looking system. The engraved panel prevents channel markings from being altered, or removed.

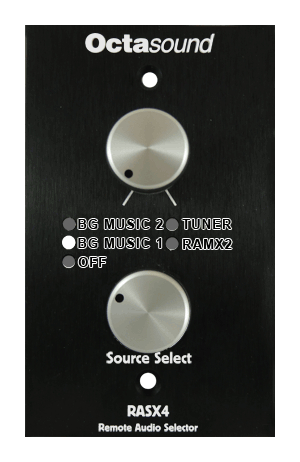

Volume Level and LED Channel Indicators
There's no need to navigate complicated menus to determine what’s playing where and how loud. One look at the RASX4 panel indicates channel selected and volume level. Bright white LED's indicate channels 1-4 and a red LED for off.

Plays Well with Others
When software and computer controlled systems fail, it can leave a client with no audio for the entire facility and a hefty repair bill. The Octasound RASX4 is compatible with all audio devices and will never be obsolete. It’s audio in/out with no files, computer programming, or proprietary software to worry about.

Expandable
One RASX4 audio selector controls a single zone. The expansion in and out audio ports can supply one audio source to multiple boards. Each board also provides a power in and out connector to work off of one main power supply. Adding future zones is simple with no re-programming required.

Priority Mode
Connecting a switch to priority input activates channel 4 automatically. Wire the switch from a microphone to mute all other channels and make an announcement, or use a fire alarm pull to mute all the audio channels and activate a microphone for critical announcements.

Mute Mode
Cold contacts from a fire alarm station can be used to priority mute the sound system and allow critical EVAC announcements to proceed uninterrupted.
