Klark Teknik DN360-P2H-FB
Graphic Equalizer with Dual Resolution and Low Cut Filters with Input and Output Balancing Transformers (Configured Pin 2 Hot)


The Klark Teknik DN360 has been in continuous production for 17 years with only one minor design revision...
Learn More
Our Price: $1,499.00
List Price: $1,723.85
Call for Special Sale Price!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Klark Teknik DN360-P2H-FB
In Stock

Similar Products

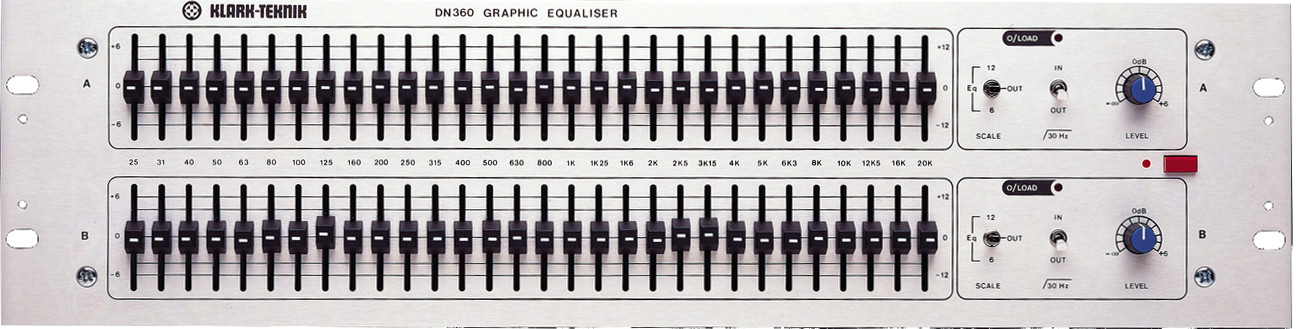

The Klark Teknik DN360 has been in continuous production for 17 years with only one minor design revision, and is still one of the most popular analog graphic equalizers on the planet. Like all Klark Teknik units, the DN360 is well designed and engineered to very high standards, so it will handle continuous road use with only minimal service. It is also very consistent, so engineers using units sourced locally all over the world will get the same response every time.

But most important of all is the way the DN360 sounds – it's notoriously difficult to describe sound, but talk to anyone that prefers DN360s to any other graphic and they will use words like 'musical', 'smooth', 'responsive', and 'great sounding'. Primarily this is because Klark Teknik uses proportional-Q filtering, where the 'Q' value of the frequency increases as the cut or boost increases. This provides a flowing response at low cut / boost values, but also accurate frequency control at higher values.

Klark Teknik DN360 Features:

  • Dual channel 1/3 octave graphic equalizer
  • Two x thirty 30mm oil damped precision faders graphically positioned at 1/3 octave ISO frequencies between 25Hz - 20kHz
  • Proprietary circuit designs utilizing "MELT" filters giving unbeatable performance
  • Comprehensive standard specifications include electronically balanced inputs and LED overload indicators
  • Earth lift switch enables signal and chassis grounds to be isolated eliminating ground-loop problems
  • Useful low-cut 18 dB/octave filters preventing subsonic components from overloading speakers or amplifiers
  • Equalization bypass allowing easy comparison between direct and equalized signals
  • Scale switching gives the choice of either high slider resolution (±6dB) or normal (±12dB)
  • Prespex security cover available to order, for use in permanent sound installations where system calibration has taken place
