PreSonus 328i-W
StudioLive AI Series 2000W Active 3-Way Quad-Amped Installation Loudspeaker in White with Dual 8" Woofers

OUR PART #  328I-W

Our Price: $1,699.95
List Price: $2,099.95
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

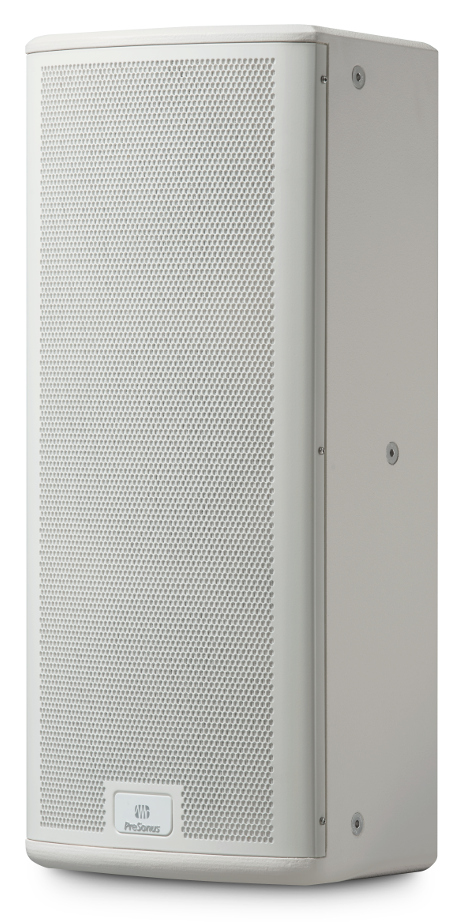

The PreSonus 328i-W is a StudioLive AI Series installation loudspeaker in white that features a quad-amped design and dual 8" woofers. Designed for indoor flown installations, the 328i-W features a smooth enclosure without handles or pole mounts and has (16) M10 rigging points for yoke and cathedral mounts. An internal grille cloth masks the drivers so that they blend seamlessly into their environments, and companion vertical and horizontal yoke mounts are also available (sold separately).

Each model in the StudioLive AI Series of loudspeakers are built around the 8" CoActual™ driver that is responsible for the high- and mid-frequency reproduction. Each provides complete networking, remote control, and DSP customization features thanks to Active Integration™ and SL Room Control. Each 3-way full-range model offers 2000 Watts of power with a 90° x 60° dispersion. The rear of the StudioLive AI Series loudspeakers reveals a combo XLR-1/4" TRS line input and an XLR microphone input with an XMAX™ Class A microphone preamplifier and 12V phantom power, as well as an XLR mix output. In addition to the input mixer, you get speaker level-attenuation control and USB and Ethercon connections.

PreSonus 328i-W Specifications:

  • Acoustic Performance:
    • Configuration:  3-way quad-amped
    • Frequency Response (-10dB):  54 Hz - 23 kHz
    • Frequency Response (-6dB):  59 Hz - 22 kHz
    • Nominal Coverage (-6dB):  90° x 60°
    • Maximum Peak SPL:  133dB
    • Crossover Frequency:
      • LF:  100 Hz to 1 kHz (overlapped)
      • HF:  1.7 kHz
    • Directivity Index (DI):  10.0, >420 Hz
  • Transducer:
    • LF Transducer:  2x 8" Ferrite
    • MF Transducer:  8" CoActual
    • HF Transducer:  1.75" compression driver
  • Amplifier:
    • Type:  Class D
    • Total Power Output:  2000 Watts (total power without protection algorithms and limiter enabled)
    • LF Power:  2x 500W
    • MF Power:  500W
    • HF Power:  500W
    • Rated THD:  <0.05% (20 Hz - 20 kHz)
    • Dynamic Range:  119dB (A-weighted)
    • Bandwidth:  20 Hz - 20 kHz
    • Cooling:  Free air convection
  • Connections and Controls:
    • Input Channels:  1x mic, 1x line
    • Input Connector Types:  1x XLR (F), 1x combo
    • Phantom Power:  15 VDC (Mic input only)
    • Mic Input Impedance:  1 kOhm
    • Line Input Impedance:  10 kOhms
    • Maximum Input:  +22dBu
    • Output Connector:  1x XLR (M) - Mix out
    • Controls:
      • Mic level (variable: Off to +48dB)
      • Line Attenuation (variable: -24dB to 0dB)
      • Speaker Attenuation (variable: -24dB to 0dB)
    • Indicators:  DSP preset, HPF, On/Off, Network Connected, Network Activity, Wi-Fi Setup, Wi-Fi On, Signal, Limit, Clip, Thermal
  • DSP:
    • Contour Presets:  Normal, LBR Source, Floor Monitor
    • HPF:  100 Hz, 4th-order Linkwitz-Riley
    • Bit Depth:  24-bit
    • Sample Rate:  96kHz
  • Enclosure:
    • Material:  15 mm Baltic birch
    • Finish:  Chemline™ polyurethane
    • Grille:  Powder-coated steel
    • Dimensions (HxWxD):  30.1" x 15.7" x 13.3" (764.54 mm x 398.78 mm x 337.82 mm)
    • Unit Weight:  51 lbs (23.13 kg)
    • Monitor Angle:  50°
  • Safety:
    • Amplifier Protection:  Over-current, DC, over/under-voltage, over-temperature, high frequency
    • Transducer Protection:  4-ch. multi-threat limiter
  • Power:
    • AC Power Input:  100 - 230V~, 50-60 Hz
    • AC Power Consumption:  250W
  • Suspension Mounting:
    • Rigging Points:  16x M10
  • Computer System Requirements for SL Room ControlSoftware:
    • Mac:
      • Mac OS X 10.8 or 10.9 (32- or 64-bit)
      • Intel Core 2 Duo, 2 GHz
      • 4 GB RAM (more recommended)
    • Windows:
      • Windows 7 SP1 or Windows 8 (32- or 64-bit)
      • Intel Core 2 Duo, 2 GHz
      • 4 GB RAM (more recommended)
    • Mac and Windows Systems:
      • Ethernet port or wireless connection required
      • Wireless router required
      • Monitor with at least 1280x768 resolution
    • Apple iPad:
      • iPad 2 or higher
      • iOS 7.0.1 or higher

PreSonus 328i-W
StudioLive AI Series 2000W Active 3-Way Quad-Amped Installation Loudspeaker in White with Dual 8" Woofers

OUR PART #  328I-W

Product Information:

The PreSonus 328i-W is a StudioLive AI Series installation loudspeaker in white that features a quad-amped design and dual 8" woofers. Designed for indoor flown installations, the 328i-W features a smooth enclosure without handles or pole mounts and has (16) M10 rigging points for yoke and cathedral mounts. An internal grille cloth masks the drivers so that they blend seamlessly into their environments, and companion vertical and horizontal yoke mounts are also available (sold separately).

Each model in the StudioLive AI Series of loudspeakers are built around the 8" CoActual™ driver that is responsible for the high- and mid-frequency reproduction. Each provides complete networking, remote control, and DSP customization features thanks to Active Integration™ and SL Room Control. Each 3-way full-range model offers 2000 Watts of power with a 90° x 60° dispersion. The rear of the StudioLive AI Series loudspeakers reveals a combo XLR-1/4" TRS line input and an XLR microphone input with an XMAX™ Class A microphone preamplifier and 12V phantom power, as well as an XLR mix output. In addition to the input mixer, you get speaker level-attenuation control and USB and Ethercon connections.

PreSonus 328i-W Specifications:

  • Acoustic Performance:
    • Configuration:  3-way quad-amped
    • Frequency Response (-10dB):  54 Hz - 23 kHz
    • Frequency Response (-6dB):  59 Hz - 22 kHz
    • Nominal Coverage (-6dB):  90° x 60°
    • Maximum Peak SPL:  133dB
    • Crossover Frequency:
      • LF:  100 Hz to 1 kHz (overlapped)
      • HF:  1.7 kHz
    • Directivity Index (DI):  10.0, >420 Hz
  • Transducer:
    • LF Transducer:  2x 8" Ferrite
    • MF Transducer:  8" CoActual
    • HF Transducer:  1.75" compression driver
  • Amplifier:
    • Type:  Class D
    • Total Power Output:  2000 Watts (total power without protection algorithms and limiter enabled)
    • LF Power:  2x 500W
    • MF Power:  500W
    • HF Power:  500W
    • Rated THD:  <0.05% (20 Hz - 20 kHz)
    • Dynamic Range:  119dB (A-weighted)
    • Bandwidth:  20 Hz - 20 kHz
    • Cooling:  Free air convection
  • Connections and Controls:
    • Input Channels:  1x mic, 1x line
    • Input Connector Types:  1x XLR (F), 1x combo
    • Phantom Power:  15 VDC (Mic input only)
    • Mic Input Impedance:  1 kOhm
    • Line Input Impedance:  10 kOhms
    • Maximum Input:  +22dBu
    • Output Connector:  1x XLR (M) - Mix out
    • Controls:
      • Mic level (variable: Off to +48dB)
      • Line Attenuation (variable: -24dB to 0dB)
      • Speaker Attenuation (variable: -24dB to 0dB)
    • Indicators:  DSP preset, HPF, On/Off, Network Connected, Network Activity, Wi-Fi Setup, Wi-Fi On, Signal, Limit, Clip, Thermal
  • DSP:
    • Contour Presets:  Normal, LBR Source, Floor Monitor
    • HPF:  100 Hz, 4th-order Linkwitz-Riley
    • Bit Depth:  24-bit
    • Sample Rate:  96kHz
  • Enclosure:
    • Material:  15 mm Baltic birch
    • Finish:  Chemline™ polyurethane
    • Grille:  Powder-coated steel
    • Dimensions (HxWxD):  30.1" x 15.7" x 13.3" (764.54 mm x 398.78 mm x 337.82 mm)
    • Unit Weight:  51 lbs (23.13 kg)
    • Monitor Angle:  50°
  • Safety:
    • Amplifier Protection:  Over-current, DC, over/under-voltage, over-temperature, high frequency
    • Transducer Protection:  4-ch. multi-threat limiter
  • Power:
    • AC Power Input:  100 - 230V~, 50-60 Hz
    • AC Power Consumption:  250W
  • Suspension Mounting:
    • Rigging Points:  16x M10
  • Computer System Requirements for SL Room ControlSoftware:
    • Mac:
      • Mac OS X 10.8 or 10.9 (32- or 64-bit)
      • Intel Core 2 Duo, 2 GHz
      • 4 GB RAM (more recommended)
    • Windows:
      • Windows 7 SP1 or Windows 8 (32- or 64-bit)
      • Intel Core 2 Duo, 2 GHz
      • 4 GB RAM (more recommended)
    • Mac and Windows Systems:
      • Ethernet port or wireless connection required
      • Wireless router required
      • Monitor with at least 1280x768 resolution
    • Apple iPad:
      • iPad 2 or higher
      • iOS 7.0.1 or higher
