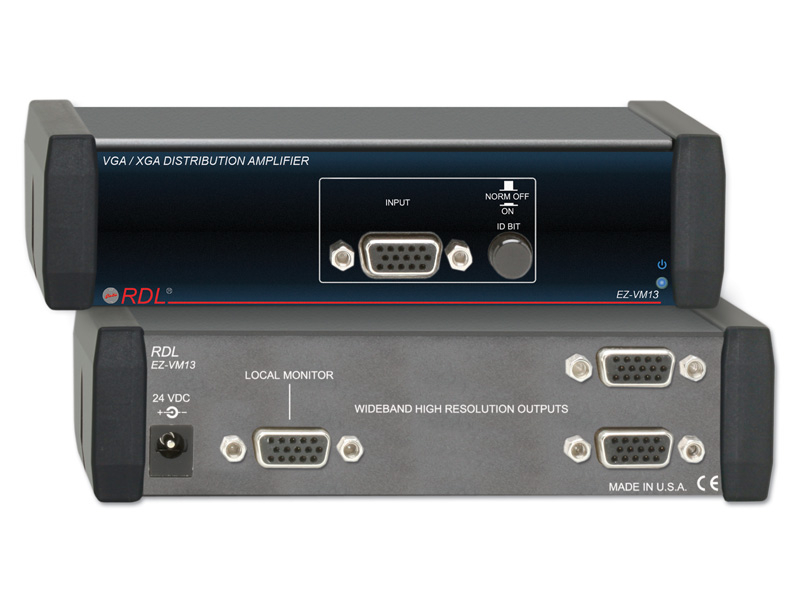

Radio Design Labs EZ-VM13
1x3 VGA/XGA Distribution Amplifier

OUR PART #:  EZ-VM13

The Radio Design Labs EZ-VM13 is a high-resolution computer video distribution amplifier with three outputs.
Learn More
Our Price: $158.83
List Price: $212.47
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs EZ-VM13
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Radio Design Labs EZ-VM13 is a high-resolution computer video distribution amplifier with three outputs. The input has an associated front-panel BIT ID switch to assure compatibility with various computers. The three outputs are driven by video line amplifiers that provide flat, wideband response. The EZ-VM13 is used in houses of worship, restaurants, clubs, meeting rooms, class rooms, conference rooms, stores and in commercial A/V systems.

Radio Design Labs EZ-VM13 Features:

  • Input and Three Outputs on HD15 Female Connectors
  • Wide RGB Bandwidth > 360 MHz Loaded
  • High Resolution Compatibility VGA through QXGA
  • Reliable Full-Size Front-Panel Switch for ID Bit Selection
  • NORM ID BIT Connects LOCAL MONITOR and INPUT ID
  • DC RGB Coupling, Output Polarity & Offset Follow Input
  • HD15 Input Cable Included - 36", 91.44 cm long

Radio Design Labs EZ-VM13 Specifications:

  • Input:  VGA - QXGA RGBHV or RGB with combined sync
  • Outputs (3):  LOCAL MONITOR (1, ID bit pass-thruto INPUT) OUTPUTS (2)
  • Gain:  Unity
  • Video bandwidth:  > 360 MHz
  • Video impedance:  75 Ohms (Input and output)
  • Sync (HV) input:  500 Ohms TTL 0.7 V to 5 V p-p
  • Sync (HV) output:  5V TTL
  • Sync (HV) Propogation delay:  < 4 nS typ.
  • Sync (HV) Rise time:  < 4 nS typ.
  • Sync (combined):  Output follows input
  • Bit Control:  Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
  • 24 Vdc power supply current:  50 mA (idle), 65mA (max.)
  • Case Dimensions:  5.75” (14.6 cm)W x 3” (7.6cm)D
  • Mounting size:  1/3 rack width
