RapcoHorizon Music SDMX3-25
25 Foot Length of 2-conductor DMX Cable with 3-pin XLRF to XLRM Connectors


Our Price: $25.76
List Price: $40.69
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

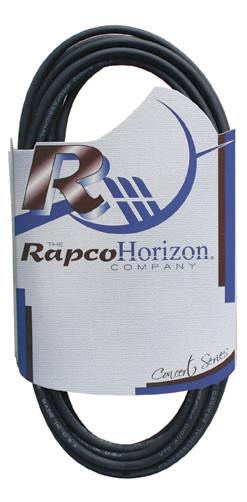

The RapcoHorizon SDMX3-25 is a 25-foot length of single pair, 24 gauge conductor DMX cable with Switchcraft 3-pin XLR Female to XLR Male connectors.

About DMX
DMX is commonly used to control stage lighting and effects.  It can also be used to link not only controllers and dimmers, but also more advanced fixtures and special effects devices such as fog machines and moving lights.  Our DMX cables are soldered in our facilities by our trained personnel.

RapcoHorizon SDMX3-25 Features:

  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Switchcraft connectors
  • Individually tested for performance and quality

RapcoHorizon SDMX3-25 Specifications:

  • Length:  25 Feet
  • Cable:  DMX-1PR
  • Conductor Gauge:  24 gauge, 1 pair
  • Shield:  Overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket:  Matte PVC
  • O.D.:  0.210" or 0.290"
  • Capacitance:  13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance:  25 pF/ft. @ 1 kHz
  • Characteristic Impedance:  110 Ohm NOMINAL
  • D.C. Resistance @ 20┬░C:  25.4 Ohm/1000'
