AJA 3G-AMA 3G-SDI Analog Audio Embedder/Disembedder

OUR PART #: 3GAMA MFR #: 3G-AMA-R0

Copied to clipboard

The AJA Video Systems 3G-AMA is a 4-channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p-60. ...Read more

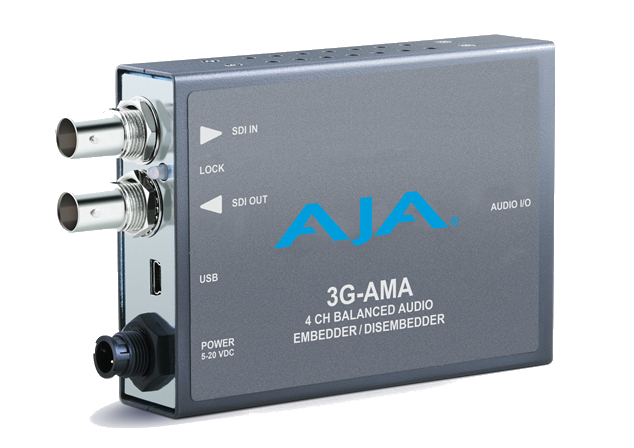

AJA 3G-AMA 3G-SDI Analog Audio Embedder/Disembedder Image 1
AJA 3G-AMA 3G-SDI Analog Audio Embedder/Disembedder Image 2
AJA 3G-AMA 3G-SDI Analog Audio Embedder/Disembedder
Our Price: $999.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AJA Video Systems 3G-AMA is a 4-channel analog audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p-60. Audio disembedding is always functional, providing 4 analog outputs. Audio embedding is user selectable, on a channel-pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.

Featues

  • 3G-SDI Embedder/Disembedder
  • 4-Channel Balanced Analog Audio I/O
  • Supplied XLR breakout cable
  • USB connectivity via AJA MiniConfig software
  • Dipswitch configuration
  • 5-20VDC Power

Specifications

  • Video Input, SDI, 1x BNC:
    • HD SMPTE 292/296M
    • SD SMPTE 259M
    • 3G SMPTE 424/425M
  • Input Formats:
    • 1x 3Gb SDI (level A or B):
      • 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 2048x1080psf 23.98, 24, 25, 29.97, 30
      • 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 1920x1080psf 23.98, 24, 25, 29.97, 30
      • 1920x1080i 25, 29.97, 30
      • 1280x720p 50, 59.94, 60
    • 1x 1.5Gb SDI:
      • 2048x1080p 23.98, 24, 25, 29.97, 30
      • 2048x1080psf 23.98, 24, 25, 29.97, 30
      • 1920x1080p 23.98, 24, 25, 29.97, 30
      • 1920x1080psf 23.98, 24, 25, 29.97, 30
      • 1920x1080i 25, 29.97, 30
      • 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • 1x 270Mb SDI:
    • 525i
    • 625i
  • Video Output: SDI, 1x BNC
    • Output Formats: Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
    • Video Latency (time measured between video input and video output connector):
    • SD (270 Mb) = 17.2 usec
    • HD (1.5 Gb) = 6.3 usec
    • 3G level A = 3.2 usec
    • 3G level B = 6.1 usec
  • Audio Inputs and Outputs:
    • Balanced Analog Audio, 1 x 25 pin D female connector on converter, 4 channels in, 4 channels out.
    • Breakout cable provided with 1 x 25 pin D male connector:
    • 4 x XLR female input breakout connectors (AES3 110 ohm)
    • 4 x XLR male output breakout connectors (AES3 110 ohm)
  • Digital Audio Converters: 24-bit
    • Embedded Audio:
      • SMPTE 272M (SD): 20-bit, 48KHz synchronous
      • SMPTE 299M (3G/HD): 24-bit, 48KHz synchronous
      • Incoming embedded audio can be passed, removed, or overridden.
      • Up to 16 channels supported.
      • NOTE
    • Embed Path Audio Latency (time measured between audio input and video output connector): 1100 usec
    • Disembed Path Audio Latency (time measured between video input and audio output connector): 1200 usec
  • Analog Audio Levels:
    • Configured via MiniConfig software:
    • Pro 1: 0 dBfs = +24 dBu
    • Pro 2: 0 dBfs = +18 dBu
    • Pro 3: 0 dBfs = +15 dBu
    • Consumer 1: 0 dBfs = +12 dB
  • User Controls:
    • External DIP Switch
    • USB Port used with MiniConfig software application to configure device via Mac/Win PC
  • Power: +5-20VDC, 5 watts. Power Supply Required (included with purchase)
  • Size: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
  • Environmental:
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: < 8000 feet (< 2,500 meters)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
