Philips Color Kinetics ColorBlast 12
IP66 LED Wash Fixture with 10 Degree Beam Angle in Black Housing

OUR PART #:  116-000025-03

The Philips ColorBlast 12 (also known as 116-000025-03) is a high-performance LED wash fixture that generates rich...
Learn More
Similar Products

The Philips ColorBlast 12 (also known as 116-000025-03) is a high-performance LED wash fixture that generates rich, saturated colors and color-changing effects for a range of wall-washing and floodlighting applications. Designed with the needs of lighting designers, architects, and retail window directors in mind, ColorBlast 12 can be used in both indoor and outdoor installations. High-intensity LEDs produce superior light output of up to 1207 lumens. ColorBlast 12 also offers full pan and tilt rotation, flexible mounting options, two beam angles, and superior control through Philips or third-party controllers.

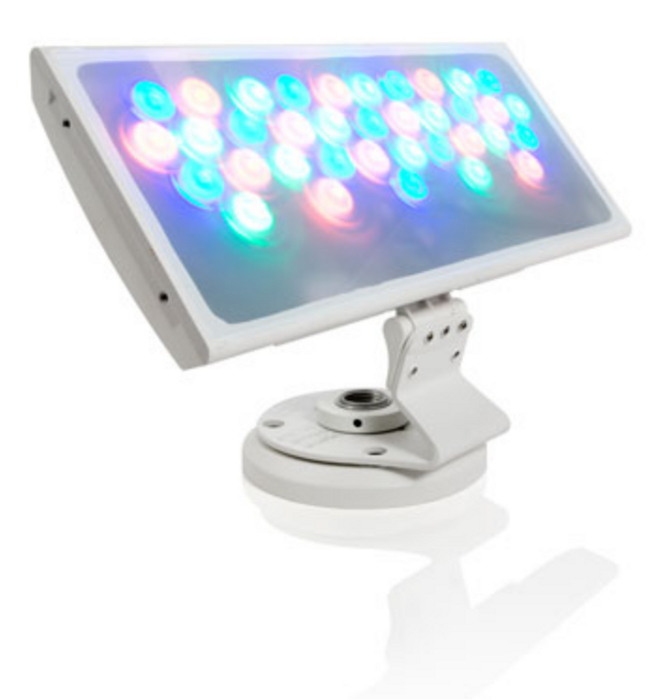

NOTE: Product shown in image is for illustrative purposes only. Actual product is black in appearance.

Philips ColorBlast 12 Features:

  • Two beam patterns — A frosted glass lens (22° beamangle) produces a soft-edge beam, while a clear glass lens (10° beam angle) affords extended light projection.
  • Outdoor rated — Fully sealed for maximum fixture lifeand IP66-rated for outdoor applications, ColorBlast 12 fixtures meet or exceed specifications for use in wet locations.
  • Rugged, die-cast aluminum housing is available inwhite or black powder-coated finish.
  • Flexible mounting options — The versatile fixture canopy base can be mounted to a junction box or directly to a wall, ceiling,or floor. A liquid-tight cable fitting seals the canopy opening for use indamp or wet environments.
  • Versatile light positioning — The locking canopy base offers friction-free rotation of up to 350°, and 110° fixture tilting lets installers quickly aim the fixture without special tools.
  • Unified power and data cable — Each ColorBlast 12fixture comes with a 60 ft (18.3 m) unified power and data cable to minimize wiring. ColorBlast 6 is intended for use with PDS-150e and PDS-60 24V power /data supplies.
  • Industry-leading controls — ColorBlast 12 fixtures work seamlessly with the complete line of Philips Color Kinetics controllers, including iPlayer 3 Light System Manager, and ColorDial Pro, as well as third-party controllers.
  • Additional options for controlling and dispersing light — Designed specifically for the family of ColorBlast fixtures by City Theatrical, Inc., accessories include top hats, half top hats, egg crate louvers, barndoors, and horizontal and vertical spread lenses.

      Philips ColorBlast 12 Specifications:

      • Output:
        • Beam Angle: 10°
        • Lumens*: 1207
        • LED Channels: Red / Green / Blue
        • Mixing Distance: 6 in (152 mm) to uniform light
        • Lumen Maintenance+: 50,000 plus hours L50 @ 50° C (full output)
      • Electrical:
        • Input Voltage: 24 BDC via PDS-150e or PDS-60
        • Power Consumption: 50W maximum at full output, steady state
      • Control:
        • Interface:
          • PDS-150e 24V (DMX / Ethernet)
          • PDS-60 24V (Pre-programmed or DMX / Ethernet)
          • Control System: Philips full range of controllers, including Light System Manager, iPlayer 3, ColorDial Pro or third-party controllers:
      • Physical:
        • Dimensions (H x W x D): 8.4 x 12.6 x 5.1 in (213 x320 x 130 mm)
        • Weight: 4.2 lbs (1.9 Kg)
        • Housing: Die-cast aluminium, black or whitepower-coated finish
        • Lens: Clear glass
        • Fixture Connections: 60 ft (18.3 m) unified power /data cable
        • Temperature Ranges:
          • Operating: -40° - 122° F (-40 - 50° C)
          • Startup: -4° - 122° F (-20° - 50° C)
          • Storage: -40° - 176° F (-40° - 80° C)
        • Humidity: 0 - 95%, non-condensing
        • Maximum Fixtures Per Power / Data Supply:
          • PDS-150e 24V: 3
          • PDS-60 24V: 1
      • Certification and Safety:
        • Certification: UL / cUL, FCC Class A, CE, PSE,C-Tick, SAA, CQC
        • Environment: Dry / Damp / Wet Location, IP66

      NOTES:
      *: Lumen measurement complies with IES LM-79-08
      +: L50 = 50% lumen maintenance (when light output drops below 50% of initial output.) Ambient luminaire temperatures specified.
