Product Overview

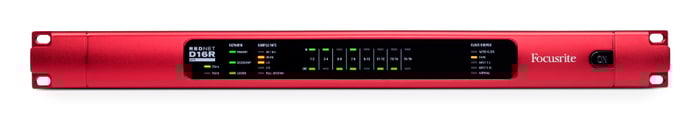

The Focusrite Pro RedNet D16R is a 1U, 19" rack-mount Dante interface featuring 16 channels of AES/EBU connectivity to and from the Dante audio network. Perfect for bridging between digital consoles, power amplifiers or any other AES3 equipped audio equipment and any Dante network, RedNet D16R has SRC (Sample Rate Conversion) on each input pair allowing plug-and-play operation with any AES3 source. Word Clock I/O and DARS (Digital Audio Reference Signal) connections allow synchronisation with a wide range of external sources and hardware, while S/PDIF I/O allows the integration of equipment such as CD or solid state recorders/players.
Dual locking etherCON Ethernet ports are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. The D16R is fitted with two separate power supplies with fault detection capability, with separate power input sockets (with retaining clips) on the rear of the unit. Power supply status is indicated both remotely and on the front panel. The unit features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 16 channels of I/O.
Features
- 16 Channel bi-directional RedNet
- AES3 Interface for Dante Networks
- Power supply and Ethernet redundancy with auto switchover in case of failure, and locking etherCON network connectors.
- Sample rate conversion allows external equipment to run at any sample rate
- Compact 1U chassis allows maximum functionality in minimum rack space
- Two 8-channel AES59 combined I/O DB25 connections, plus a pair of XLR3 connectors duplicating channels 1 & 2
- Rear panel XLR input connector either be used as a DARS input or as a traditional AES3 audio input
- S/PDIF input and outputs provided on RCA connectors; ideal for connecting CD players or solid-state recorders
- Word Clock I/O on BNC connectors allows synchronization of the Dante network to house clock, or syncing external equipment to the Dante network
- RedNet Control and Dante control software allow routing and control from your audio computer system via a software control panel – no hardware patching required
Specifications
- Connectors (Rear panel):
- 2x etherCON locking Ethernet connectors – also compatible with standard RJ45 connectors
- 2x BNC Word Clock In and Out
- 2x RCA Phono S/PDIF In and Out; input replaces DB25 channels 3 & 4; output assignable to any adjacent odd/even pair of channels
- 1x XLR male AES3 output duplicates DB25 outputs 1 & 2
- 1x XLR female AES3 input for DARS or inputs 1 & 2
- 2x DB25 8x channels of AES59 standard digital I/O per connector, providing a total of 16 channels
- 2x IEC power connectors: 100–240Vac, 50/60 Hz, Cord retaining clips provided.
- Controls (front panel): Power on/off
- Indicators (front panel):
- Green LED power indicator
- Network Status: Primary/Secondary/Locked
- PSU: A/B
- Sample Rate: 44.1/48kHz, x2, x4, Pull
- Signal Presence: In and out, one LED per two channels)
- Clock Source: Word Clock, DARS, Input 1-2, Input 9-10, Internal)
- Input Sample Rate Converters:
- Input Sample Rate Range: 32 to 216kHz
- Gain Error: -0.3dB
- Dynamic Range: > 138dB (-60dBFS method)
- THD+N: < -130dB (0.00003%); 0dBFS input
- Digital Performance:
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz
- Clock Sources: Local or from network master device
- Local clock Sources: Internal, DARS, Word Clock, Input 1–2, Input 9–10
- External Word Clock Range: Nominal sample rate ± 7.5%
- Computer Connectivity:IP Network
- Form Factor:Rackmount
- Simultaneous I/O:16 x 16
- A/D Resolution:24-bit/192kHz
- Digital Inputs:1 x XLR (AES/EBU), 1 x DB-25, 1 x S/PDIF (Coax)
- Digital Outputs:1 x XLR (AES/EBU), 1 x DB-25, 1 x S/PDIF (Coax)
- Clock I/O:1 x Word Clock (In), 1 x Word Clock (Out)
- Data I/O:2 x etherCON Ethernet
- Rack Spaces:1U
- Height:1.75"
- Width:19"
