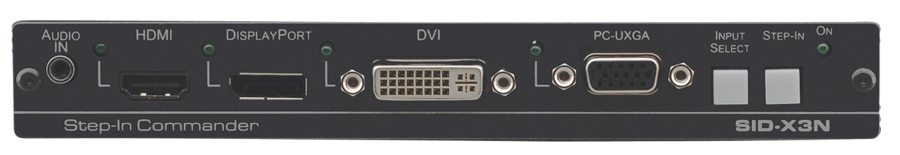

Kramer SID-X3N
4-Input Multi-Format Video over HDMI Transmitter

OUR PART #:  SID-X3N

The SID-X3N from Kramer is an HDMI transmitter, step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals.
Learn More
Our Price: $576.00
List Price: $720.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer SID-X3N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SID-X3N from Kramer is an HDMI transmitter, step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step-In” button that allows the local source to be routed as the active source when connected to the VS-62H.

In addition, the SID-X3N includes an unbalanced stereo audio input and output. The local ‘Step-in’ switching button allows the user to take control of the main display through the main switcher. The SID-X3N works either as a stand-alone unit, or, with the VS-62H Matrix Switcher. When working with the VS-62H, the unit allows the transfer of control commands over HDMI.

Applications:

  • Boardrooms
  • Presentation rooms

Kramer SID-X3N Features:

  • Max Resolution - 1080p @60Hz @36bpp
  • Control - Local Step-in Input Select (Button orContact Closure)
  • Size - Compact MegaTOOLS® - 2 units can be rackmounted side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
  • Audio - U/E
  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphicchannel).
  • HDTV Compatible.
  • HDCP Compliant. - Works with sources that supportHDCP repeater mode.
  • HDMI Support - Deep Color, x.v.Color™ and 3D.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ -Intelligent EDID handling & processing algorithm ensures Plug and Playoperation for HDMI systems.
  • Data Equalization and Reclocking.
  • Input Signal Detection - Based on video clockpresence.
  • Automatic Input Selection - Based on manual selectionor last connected input.
  • Automatic Analog Audio Detection and Embedding.
  • Local Balanced Audio De-Embedding.
  • Support for Digital Audio Formats.
  • Lockable EDID.
  • Local Step-In Switching - Button & contactclosure.
  • Supports Programmable Step-In Functionality - OverHEC enabled HDMI cables, when used with compatible switchers such as theVS-62H.
  • Power Supply - Requires independent power supply.
  • Size - Compact MegaTOOLS® - 2 units can be rack mounted side-by-side in a1U rack space with the optional RK-T2B rack adapter.

Kramer SID-X3N Specifications:

  • Inputs: 1 HDMI, 1 DVI on a Molex 24-pinconnector, 1 DisplayPort, 1 UXGA on a 15-pin HD connector, 1 unbalanced stereoaudio on a 3.5mm mini jack.
  • Output: 1 HDMI connector, 1 unbalanced stereoaudio on a 3.5mm mini jack.
  • Standards: HDMI with Deep Color, x.v.Color™ and 3D;HDCP: works with sources that support HDCP repeater mode.
  • Maximum Step-In Distance: 50m (164ft) up to 1080p@60Hz.
  • Power Consumption: 12V DC, 950mA.
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH): 7.4" x 4.5" x 1" (18.8cmx 11.3cm x 2.5cm)
  • Weight: 0.48 kg (1.1lbs) approx.
  • Included Accessories: Power supply.
  • Options: RK-T2B 19" rack adapter, RTBUS-12, RTBUS-22, SID-X1BP Kit(substitute black top plate for the SID-X3N that blends with the color of themodular TBUS-10xl), RC-10TB remote contact closure switch.
