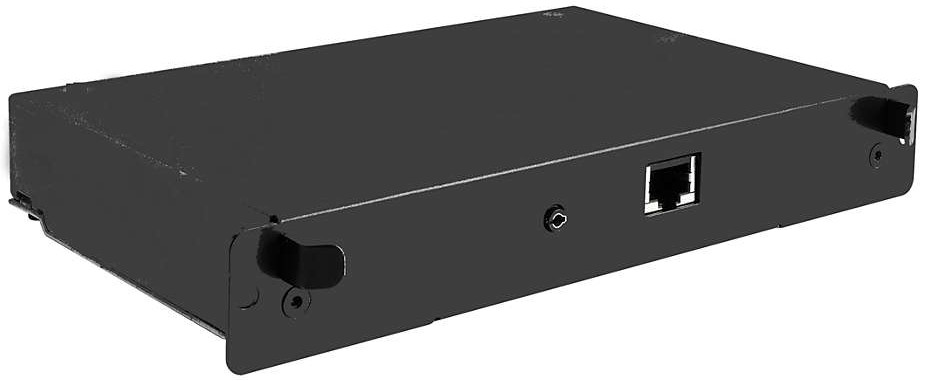

Philips Commercial CRD25
OPS Slot HD Base-T Receiver

OUR PART #  CRD25

Our Price: $186.25
List Price: $249.00
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Philips Commercial CRD25 is a HD Base-T Receiver module designed to be mounted in the OPS Slot of various Philips' Digital Signage displays. It features a single RJ45 port, and is full OPS compliant.

The CRD25 turns your display into an all-in-one digital signage solution and creates a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.

This OPS receiver module enables reception of HDbaseT signals. HDbaseT is a connectivity standard over a single CAT5e / 6 cable, converging uncompressed full HD digital video and audio signals.

Philips Commercial CRD25 Technical Specifications:

Related Products

  • Compatible with:
    • BDL4256ET
    • BDL4260EL
    • BDL4271VL
    • BDL4280VL
    • BDL4660EL
    • BDL4671VL
    • BDL4677XH
    • BDL4678XL
    • BDL4680VL
    • BDL4765EL
    • BDL5551EL
    • BDL5556ET
    • BDL5560EL
    • BDL5571VL
    • BDL5580VL
    • BDL5588XH
    • BDL5588XL

Operating conditions

  • Altitude:  0 ~ 3000 m
  • Relative humidity:  20 ~ 80  %
  • Temperature range (operation):  0 ~ 40  °C
  • Temperature range (storage):  -20 ~ 60  °C
  • MTBF:  60,000  hour(s)

Accessories

  • Included accessories:
    • Quick start guide
    • RS232 cable

Supported Display Resolution

  • Computer formats:
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1440 x 900, 60Hz
    • 1920 x 1080p, 60Hz
    • 640 x 480, 60, 67, 72, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
  • Video formats:
    • 1080i, 50, 60Hz
    • 1080p, 50, 60Hz
    • 480i, 60Hz
    • 480p, 60Hz
    • 576i, 50Hz
    • 576p, 50Hz
    • 720p, 50, 60Hz

Dimensions

  • Product Dimensions (WxHxD): 141.1mm x 23.5mm x 105.8mm

Miscellaneous

  • Regulatory approvals:
    • CB
    • CE
    • C-Tick
    • FCC, Class B
    • RoHS
    • UL/cUL
    • VCCI
  • Warranty:
    • 3 year warranty

What's Included

  • Included Items:
    • CRD25 OPS HD Base-T Receiver
    • Quick start guide
    • RS232 cable

All specifications subject to change without notice.
