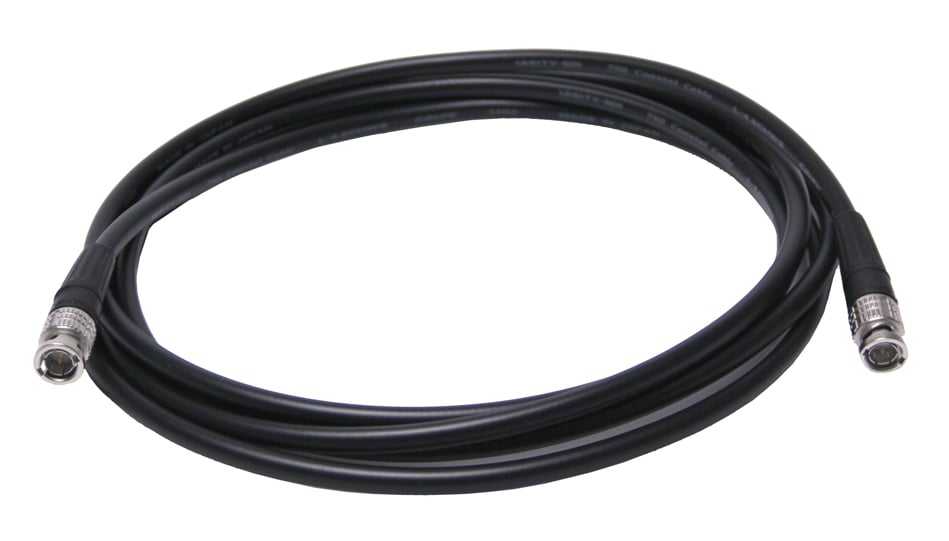

Canare HDSDI-FLEX-050
50 ft Ultra-Flexible HD-SDI Cable with L-4.5CHWS Cable and BCP-B45HW Connectors

OUR PART #:  HDSDI-FLEX-050

This Canare HD-SDI cable is made from L-4.5CHWS 75 Ohm low loss flexible digital video coaxial cable and BCP-B45HW 75 Ohm crimp plugs.
Learn More
Our Price: $72.42
List Price: $82.08
You save 12%!
Write the first review.
Canare HDSDI-FLEX-050
Qty:
In Stock

Related Products

This Canare HD-SDI cable is made from L-4.5CHWS 75 Ohm low loss flexible digital video coaxial cable and BCP-B45HW 75 Ohm crimp plugs.

Canare HDSDI-FLEX-050 Features:

  • L-4.5CHWS 75 Ohm Flexible Low Loss Digital Video Coaxial Cable Features:
    • Flexible and durable: Best suited to mobile HD application.
    • Designed for withstanding repeated bending.
    • Stranded center conductor.
    • High-density double-braided shield.
    • Highly-foamed insulation.
      NOTE: Cable stripper TS100E cannot be used.
  • BCP-B45HW 75 Ohm Crimp Plug Features:
    • True 75 ohm construction Crimp Pin & Sleeve
    • High performance of 1.1 or less VSWR up to 3GHz.
    • Elongated Body for better finger grip
    • Position mark on body allows the connector fit to be checked easily.
    • Superior cable pull strength
    • Gold-plated center pins 'snap' into place
    • Connector Body has been die-cast, achieving a lower price with higher performance
    • Easy Assembly using Canare Strip & Crimp Tools

Canare HDSDI-FLEX-050 Specifications:

  • L-4.5CHWS Cable Mechanical Specifications:
    • Nominal O.D.: 0.28" (7.2 mm)
    • #18 AWG
    • Inner Conductor O.D.: 0.04" (1.02 mm)
    • Insulation O.D.: 0.17" (4.57 mm)
    • Outer Conductors Shield Coverage (mm/ends/carriers):
      • 0.10A/8/24 (93% or more)
      • 0.10A/9/24 (95% or more)
  • BCP-B45HW Specifications:
    • Return Loss (0-3GHz): 26dB or greater
    • Coupling Sleeve: Zinc Alloy Die Casting
    • Center Pin: Gold Plating
