Listen Technologies LA-344 Replacement Mounting Hardware for LT-84 and LT-141, Omnidirectional

The Listen Technologies LA-344 is an omnidirectional wall, ceiling or table mounting kit for LT-84 ListenIR Transmitter/Radiator Combo and LA-141 ListenIR Expansion Radiator. This mounting system is modular and the finished lengths can be adjusted to 2 in. (5.08 cm), 4 in. (10.16 cm), or 6 in. (15.24 cm).

This mount features a 190° tilt and a 360° turn and rotation with locking ring. The mount angle can easily be adjusted via a thumb knob or can be made tamper-resistant with the included set screw adjusting option.

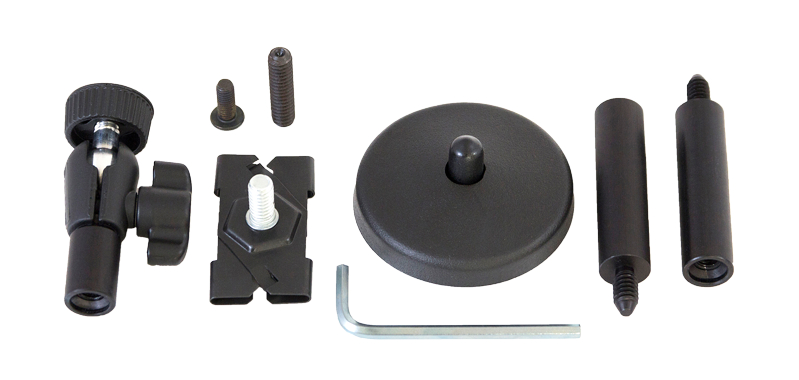

Listen Technologies LA-344 Includes:

• One (1) Wall Base
• One (1) Ceiling T-Bar Base
• One (1) Black Vinyl Base Cover
• Two (2) Shafts
• One (1) Adjustable Head with Locking Ring
• One (1) Alan Head Tamper Resistant Set Screw
• One (1) Alan Wrench
• One (1) 1/4 x 20 all-thread

Listen Technologies LA-344 Features:

• Versatile mounting for wall, ceiling, or table
• Modular system allows for multiple mount configurations
• 190° tilt, 360° turn, and 360° rotation with locking ring
• Finished lengths of 2 in. (5.08 cm), 4 in. (10.16 cm), or 6 in. (15.24cm)

Listen Technologies LA-344 Specifications:

• Base Cover: Matching black vinyl cover adds a finished look to either base
• Adjustable Head: Fully adjustable with locking ring, 190° Tilt, 360° Turn and 360° Rotation)
• Shafts: Two aluminum shafts, 0.5" (12.7mm) diameter, 2" (50.8mm) long, black, 1/4-20 stud
• Finished Lengths: 2" (50.8mm), 4" (101.6mm) or 6" (152.4mm) long mount
• Unit Weight: 0.3 lbs (166.5g)
• Maximum Load Weight: 3 lbs (1.36 kg)
• Base 1: 2" (50.8 mm) round base with four 0.188" (4.8mm) holes on 1.6" (40.6mm) bolt circle for solid surface mounting, 1/4-20 stud
• Base 2: T-Bar Clip for drop ceiling rails, 1/4-20 stud
