Bose RMU105
RoomMatch Utility 5.25" 100W (8 Ohms) Compact Surface-Mount Loudspeaker in White

OUR PART #:  RMU105-WHITE

Similar Products

The Bose RoomMatch Utility RMU105 ultra-compact foreground/fill loudspeaker is intended for use in high-quality background/ foreground music and zone-fill applications that require excellent audio, minimal physical size and high design aesthetics. The design features a single Bose® EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. A single 5.25-inch woofer provides vocal-range output, and a 100° x 100° high-frequency horn provides consistent coverage with either vertical or horizontal mounting.

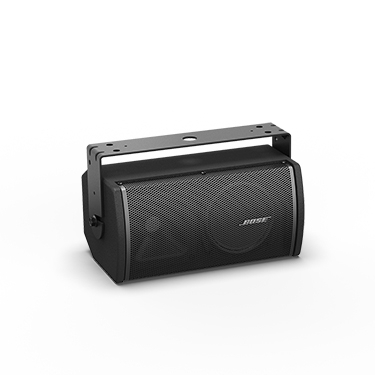

NOTE:  Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

Bose RMU105 Features:

  • Award-winning RoomMatch sound, now in a smaller, 2-way, point-source design for high-level foreground music, under-balcony, zone-fill and vocal-range floor monitor applications
  • Bose EMB2 compression driver for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character compared to that of RoomMatch full-range and other RoomMatch Utility models
  • Ultra-compact design allows use for high-quality background/foreground music and zone-fill applications that require excellent audio, minimal physical size, and high design aesthetics
  • 100° x 100° constant-directivity high-frequency horn gives wide, even coverage, allowing vertical or horizontal mounting with no change in coverage pattern.
  • 1x Bose LF5 5.25" woofer with 1.5" long-excursion voice coil extends response to 90 Hz for lowest vocal range
  • 100 Hz - 16 kHz frequency response and 118dB maximum peak SPL deliver the performance required for most demanding applications in an ultra-compact enclosure design
  • Flexible mounting with included U-bracket - rear enclosure panel also includes 2x M6 threaded inserts with 3" (75mm) spacing to accept third-party accessory mounting brackets

Bose RMU105 Specifications:

  • System Performance:
    • Frequency Response (±3dB):  100 Hz - 16 kHz
    • Frequency Range (-10dB):  90 Hz - 16 kHz
    • Recommended High-Pass Protection Filter:  90 Hz with minimum 12dB/octave filter
    • Nominal Coverage Pattern (H x V):  100° x 100° (rotatable high-frequency horn)
    • Crossover Type:  Passive (2.0 kHz crossover frequency)
    • Power Handling, long-term continuous:  100 Watts
    • Power Handling, peak:  400 Watts
    • Sensitivity (1 W @ 1m):  90dB SPL
    • Calculated Maximum SPL @ 1m:  110dB
    • Calculated Maximum SPL @ 1m, peak:  116dB
  • Transducers:
    • Low Frequency:  1x Bose LF5 high-excursion 5.25" woofer (1.5" voice coil)
    • High Frequency:  1x Bose EMB2 extended-midband high-frequency compression driver (2" voice coil)
    • Nominal Impedance:  8 Ohms
  • Physical:
    • Finish:  Two-part spray polyurethane coating
    • Grille:  18-gauge (1.2mm) perforated steel, powder-coated finish
    • Environmental:  Indoor use only
    • Connectors:  2x Neutrik NL4 and 1x barrier strip, wired parallel
    • Suspension/Mounting:  2x M8 threaded inserts (1 each side) for U-bracket; 2x M8 threaded inserts on rear surface (75mm, 2-bolt pattern)
    • Dimensions (HxWxD):  6.0" x 12.0" x 7.5" (152mm x 305mm x 191mm)
    • Net Weight:  12 lbs (5.4 kg); 15 lbs (6.8 kg) with U-bracket
Pan/Tilt Mounting Bracket in White for RoomMatch Utillity Series Speakers
Bose RMUBRKT1-WHITE Pan/Tilt Mounting Bracket in White for RoomMatch Utillity Series Speakers
The Bose RMUBRKT1-WHITE is a white pan-and-tilt bracket that allows both pitch and yaw adjustment. The bracket fits the 4x M8 threaded inserts (127mm x 70mm) on the rear panel of the RMU208, RMU206 and RMU108 models, as well as the 2x ...
Call for price!

100W 70/100V Transformer Kit for RoomMatch Utility Speakers
Bose RMUXF100 100W 70/100V Transformer Kit for RoomMatch Utility Speakers
The Bose RMUXF100 is a 100-Watt 70V/100V transformer kit that will fit all RoomMatch Utility speaker models after removing the standard input-connector panel.
Call for price!

40W 70/100V Transformer Kit for RoomMatch Utility Speakers
Bose RMUXF40 40W 70/100V Transformer Kit for RoomMatch Utility Speakers
The Bose RMUXF40 is a 40-Watt 70V/100V transformer kit that will fit all RoomMatch Utility speaker models after removing the standard input-connector panel.
Call for price!
