Bose RMU206-WHITE
RoomMatch Utility Dual 6.5" 200W (8 Ohms) Installation Loudspeaker in White

OUR PART #:  RMU206-WHITE

Call for price!

Similar Products

The Bose RoomMatch Utility RMU206 small-format under-balcony fill loudspeaker features a unique angled baffle enclosure design to minimize the projected height for typical under-balcony and low-ceiling zone-fill applications. The design also features a single Bose EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. Two 6.5" woofers provide vocal-range output and a rotatable high-frequency waveguide increases mounting flexibility.

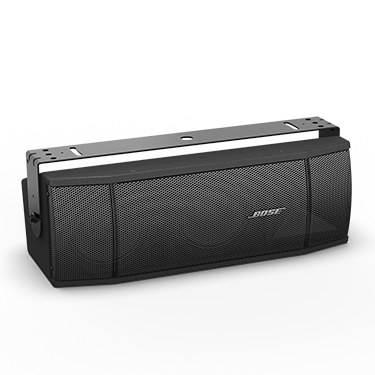

NOTE:  Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

Bose RMU206 Features:

  • Award-winning RoomMatch sound now in a smaller, 2-way, point-source design for high-level foreground music, under-balcony, and zone-fill applications
  • Bose EMB2 compression driver for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character to that of RoomMatch full-range and other RoomMatch Utility models
  • Minimal height for under-balcony or low-ceiling mounting - unique enclosure baffle design provides minimum projected height for under-balcony or low-ceiling mounted applications
  • 120° x 60° constant-directivity high-frequency horn gives wide, even coverage and may be rotated in enclosure. Can reduce the number of speakers required for under-balcony applications
  • 2x Bose LF6 6.5" woofers with extended-excursion voice coils extend response to 80 Hz for lowest vocal range
  • Quasi-3-way passive crossover with separate filters for each transducer provides more consistent frequency and polar response compared to conventional crossover designs
  • 80 Hz – 16 kHz frequency response and 122 dB maximum peak SPL deliver the performance required for most demanding under-balcony and zone-fill applications
  • Flexible mounting with included U-bracket – rear enclosure panel also includes 4x M8 threaded inserts in 5.0" x 2.75" (127mm x 70mm) pattern to accept third-party accessory mounting brackets

Bose RMU206 Specifications:

  • System Performance:
    • Frequency Response (±3dB):  90 Hz - 16 kHz
    • Frequency Range (-10dB):  80 Hz - 16 kHz
    • Recommended High-Pass Protection Filter:  80 Hz with minimum 12dB/octave filter
    • Nominal Coverage Pattern (HxV):  120° x 60°
    • Crossover Type:  Passive; separate bandpass filters per transducer (300 Hz and 1.5 kHz)
    • Power Handling, long-term continuous:  200 Watts
    • Power Handling, peak:  800 Watts
    • Sensitivity (1 W @ 1m):  92dB SPL
    • Calculated Maximum SPL @ 1m:  115dB
    • Calculated Maximum SPL @ 1m, peak:  121dB
  • Transducers:
    • Low Frequency:  2x Bose LF6 high-excursion 6.5" woofers (1.5" voice coil)
    • High Frequency:  1x Bose EMB2 extended-midband high-frequency compression driver (2" voice coil)
    • Nominal Impedance:  8 Ohms
