Dynamax Consoles MX10RW
Dynamax MX Series Modular 10-Channel Broadcast Audio Console


Call for price! Not available online.
List Price: $5,700.00

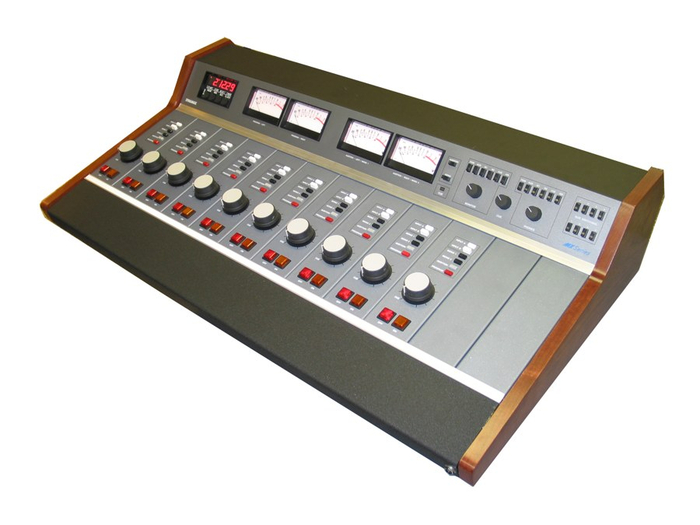

The Sandies MX10RW Dynamax MX series modular broadcast console features a 10 channel configuration with two stereo and and two mono output busses along with metering for all 4 output busses.

Dynamax MX Series modular on-air consoles have earned a reputation for user-friendliness and reliability throughout the world. The true modular design means all active components are housed right on each interchangeable module – not on the input motherboard. MX Series consoles can be short loaded to your requirements and new modules can be added later. Ease of installation, simplified operation and quality steel construction allow broadcasters to enjoy years of hassle free operation. Reverse screened Lexan overlays last far longer than paint and silk screen construction. True use of Voltage Controlled Amplifiers (VCA’s) eliminates scratchy audio caused by aging input fader and level control pots. Best of all, the fully modular channels can be quickly removed or replaced without shutting down console operations.

Sandies MX10RW Features:

  • 10 channel configuration
  • 36 inch wide frame
  • Two Stereo and two Mono Output Buss
  • Metering for all 4 Output Buss
  • Two 4X1 auxiliary inputs
  • Mic preamp on first two channels
  • Full independent remote start features as well as remote On/Off
  • Independent A and B input level adjust
  • Full Monitoring, Headphone and Cue functions
  • Low noise VCA operation
  • Solid steel construction

Sandies MX10RW Specifications:

  • Output:
    • Output Impedances:
      • Line:  200 Ohms
      • Phones:  10 Ohms
    • Output Level:
      • Line:  -10 to +10dBu (+24dBu max)
      • Cue:  12 Watts into built-in 8 Ohm speaker
      • Phones:  2 Watts per channel into 8 Ohms
    • Frequency Response:
      • Line:  20 Hz - 20 kHz ±0.1dB
      • Mic:  20 Hz - 20 kHz ±0.3dB
    • Noise:
      • Line:  Better than -90dB, 20 Hz - 20 kHz
      • Mic:  -125dB EIN
    • Crosstalk/Muting:  Better than 80dB between any outputs at 1 kHz
    • Harmonic Distortion:  Less than 0.03%, 20 Hz - 20 kHz
    • Intermodulation Distortion:  Less than 0.02% SMPTE
  • Input:
    • Input Impedances:
      • Line:  10 kOhms briding
      • Mic:  1.5 kOhms nominal
    • Levels:
      • Line:  -15 to +10dBu (+24dBu max)
      • Mic:  -65 to -35dBu
    • AC Line Input:  100/120/220/240 VAC, 47-63 Hz
  • Physcial Characteristics:
    • Weight:  75 lbs (31.8 kg)
    • Height:  7.63" (19.4 cm)
    • Depth:  21.75" (55.3 cm)
    • Width:  25.75" (65.4 cm)
