Product Overview

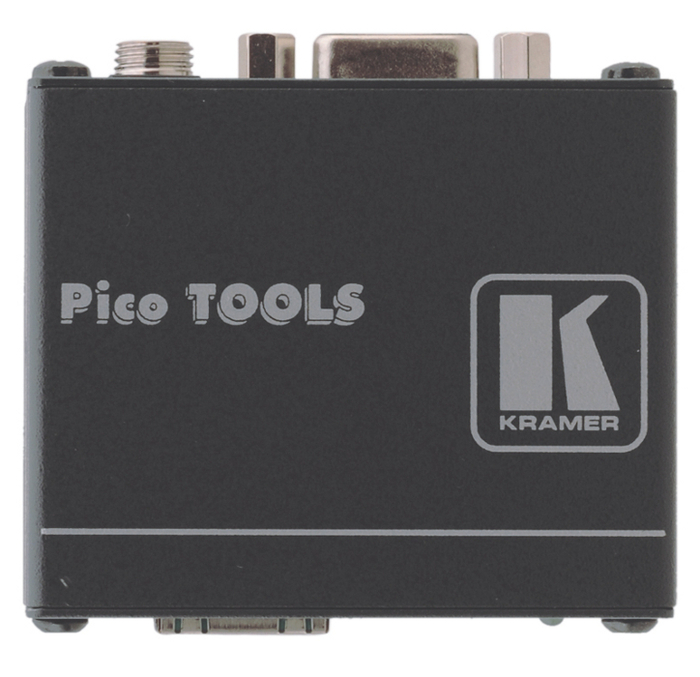

The Kramer PT-120xl is an extended range twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a WP-110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal. Applications for this unit include presentation and multimedia applications and long-range graphics distribution for schools, hospitals and security.
Features
- HDTV Compatible
- Max. Resolution - WUXGA & 1080p
- Level (Gain) & EQ (Peaking) Controls
- System Range - Up to 250m (820ft). Greater distances possible depending on signal resolution and cable
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other
- Size - Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter
Specifications
- Input: 1 RJ-45 connector
- Output: 1 VGA/UXGA on a 15-pin HD connector
- Max. Output Level: 1.3Vpp
- Resolution: Up to WUXGA, 1080p
- Range: Up to 250m (820ft)
- S/N Ratio: Paired with PT-110xl, better than 70dB (worst case)
- Controls: Level: 0.7v to 1.3v, 300m; EQ: 300m@120MHz
- Coupling: DC
- Power Consumption: 12V DC, 350mA max
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: -40° to 158°F (-40° to +70°C)
- Humidity: 10% to 90%, RHL non-condensing
- Dimensions (WxDxH): 2.36" x 2.56" x 1" (6cm x6.5cm x 2.5cm)
- Weight: 0.31lbs (0.14kg) approx.
- Accessories: Power supply
- Options: RK-4PT 19" rack adapter
