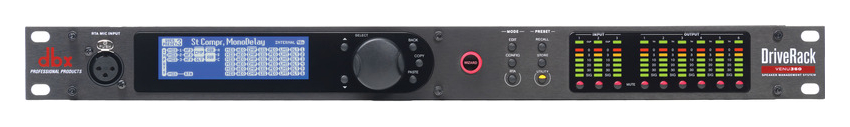

DBX VENU360 Speaker System DSP Processor with Network Connectivity

The 3-input/6-output DriveRack® VENU360 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers. With the latest advancements in dbx’s proprietary AutoEQ™ and AFS™ algorithms, a new input delay module for delaying the FOH system to the backline, Ethernet control via an Android®, iOS®, Mac®, or Windows® device, and updated Wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors.

Getting started is easy with the updated Set Up Wizard functions on the DriveRack VENU360. It guides you through easy, step-by-step processes to help you get the most from your loudspeaker system, helping you easily configure level balancing, AutoEQ, Advanced Feedback Suppression, and provides access to built-in and constantly updating speaker tunings from most major speaker manufacturers. And if you have the RTA Mic (sold separately), the AutoEQ algorithm sets speaker levels and room EQ automatically in seconds, saving you from annoying and lengthy broadcasts of pink noise.

Everyone knows the biggest enemy of setting up a sound system in a new space: feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack PA2 listens for and anticipates feedback and adjusts speaker output automatically before it even has a chance, while never altering your sound's tone.

Connect to the DriveRack VENU360 through your local network with your Android, iOS, Mac, or Windows device to customize the sound of your loudspeaker system so it performs optimally. The app lets you directly manipulate the Compressor, Graphic EQ, Parametric EQ, Crossover settings, Speaker profiles, and more with its attractive, easy-to-use graphical user interface.

DBX VENU360 Features:

• Improved setup wizard
• 31-band graphic EQ
• Iconic dbx compression
• Automatic gain control
• Subharmonic synthesis

DBX VENU360 Specifications:

• Input Connectors: 3 x XLR-F inputs (2 selectable between analog and AES digital), 1 x XLR-F mic input (for RTA Mic)
  • Type: Electronically balanced/RF filtered
  • Impedance: >30 kΩ
  • Max Input Level (line inputs): >+28 dBu, balanced, ≤ 1% THD
  • CMRR: >50 dB @ 1 kHz
• Mic Preamp Phantom Power: +48V DC (RTA)
• Output Connectors: 6 x XLR-M line outputs
  • Type: Electronically balanced, RF filtered
  • Impedance: 120 Ω, balanced line to line
  • Max Output: +22 dBu, balanced, ≤1% THD
• A/D Converter: 24-bit with dbx TYPE IV Conversion System
• A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted
• D/A Converter: 24-bit
• D/A Dynamic Range: 112 dB A-weighted, 110 dB unweighted
• Type IV Dynamic Range:
  • 129 dB with transient material, A-weighted, 22 kHz BW
  • 126 dB with transient material, unweighted, 22 kHz BW
  • 121 dB typical with program material, A-weighted, 22 kHz BW
• Internal Processing Word length: 32-bit floating point
  • Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion)
• System Performance Dynamic Range: 114 dB A-weighted, 110 dB unweighted
• THD+N: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
• Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
• Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 KHz, +4 dBu, all channels measured
• Latency:
  • Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz)
  • Digital AES input to output: 2.31 ms (48 kHz), 2.15 ms (96 kHz)
• Operating Voltage: 100-120V AC 50/60 Hz
  • Power Consumption: 18 W
• Dimensions (H x W x D): 1.75" x 19" x 8"
• Weight: 5.48 lbs.
