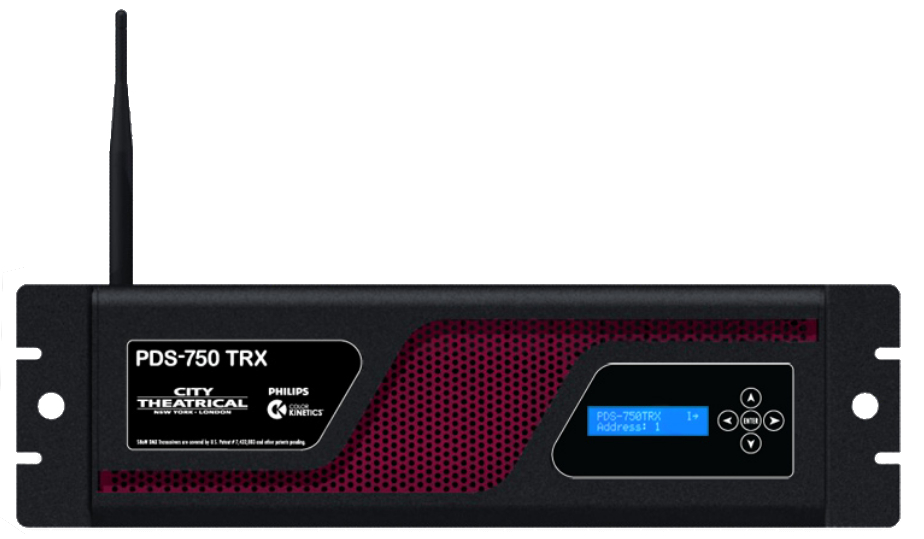

City Theatrical PDS-750 TRX ColorBlast Power and Data Supply with SHoW DMX Neo Reveiver

The PDS-750 TRX™ from City Theatrical is a powerful and flexible power/data supply for Philips Color Kinetics LED fixtures. The unit can be controlled with all popular Ethernet protocols including Streaming ACN, Art-Net, or KiNET, as well as wired and wireless DMX512, and is fully RDM enabled. Every unit includes a built-in SHoW DMX ® receiver.

The PDS-750 TRX (also known as 6500M) provides full control capability for the new Philips Color Kinetics ColorBlast 12 TRX, as well as 16 bit and 8 bit ColorBlast 12 TRs, iW Blast 12s, and conventional 8 bit ColorBlast 12s, ColorBlast 6s, ColorSplash 2s, and other CKDMX fixtures, and it can control any mix of these fixtures without wasted DMX Slots.

This model comes with City Theatrical's Maximum Bandwidth Technology™ - using the 2.4GHz broadcast spectrum has become more and more crowded and the competition for this tiny slice of free space has been intense. City Theatrical has developed a new way to broadcast wireless DMX in this crowded area using a method called Maximum Bandwidth Technology™, or Max Technology™. Using Max Technology, you can now broadcast on portions of the 2.4GHz band where no Wi-Fi activity takes place at all, giving wireless DMX users a new space for their most mission critical broadcasts while at the same time not disturbing any other users of Wi-Fi that may have mission critical applications themselves.

City Theatrical PDS-750 TRX Features:

• For up to 12 Philips Color Kinetics ColorBlast 12,ColorBlast 12 TR, ColorBlast 12TRX, and iWhite Blast 12 lighting fixtures
• Select the footprint for each output, from two to10slots per output
• Select the starting DMX address of each outputs
• Control by DMX512, RDM, streaming DMX and RDM overACN, Art-NET, KiNET, or internal MasterBlast stand alone routines
• Ethernet pass through
• SHoW DMX® Neo receiver built in
• Built in rack mount /pipe mount ears
• USB port
• Enhanced Mini-Zapi

City Theatrical PDS-750 TRX Specifications:

• Mechanical:
  • Rugged NEMA 1 Steel and Aluminum enclosure
  • Rack Mount ears double as pipe mount hangers
• Electronic/ Functional:
  • Multiple Data I/O:
    • E1.11/1.20 (DMX/RDM) via XLR 5P
    • E1.31 (Streaming DMX over ACN) via EtherCON
    • E1.33 ready (Streaming RDM over ACN, when adopted)
    • Art-Net via EtherCON
    • KiNET via EtherCON
    • Wireless SHoW DMX ® (Standard)
    • Ethernet Pass-Thru
    • E1.31/1.33 gateway via XLR 5P when E1.11/1.20 not in use
    • Art-Net gateway via XLR 5P when E1.11/1.20 not in use
    • Two Ethernet universe sources, per port selectable
    • SHoW DMX received output via XLR 5P when E1.11/1.20 not in use
    • USB firmware updates via USB stick.
  • PowerCon mains power inlet
  • LCD display
  • Built-in stand-alone routines with programmablescenes:
    • Six Scenes
    • Scene “Follow” time
    • Each scene supports one of: Color Wash, Random Color, Cross Fade, Color Wave & Fixed Color
  • Minizapi:
    • Fixture Address to 1
    • Fixture Dimmer Curve (if supported by fixture)
    • Fixture Resolution (if supported by fixture)
    • Fixture Control Mode (if supported by fixture)
    • Fixture LED Speed (if supported by fixture)
  • SHoW DMX ® included as standard
  • RDM identify fixtures
  • RDM control of minizapi functions
  • 12 CKDMX fixture output ports will control up to 1250 watt fixtures
  • Configure ports globally:
    • Base start address
    • Footprint / CK Fixture type (Will automatically adjust footprint, 16-bit, 8-bit, RGB, RGBAW, iW)
  • Configurable ports individually:
    • Start Address
    • Footprint / CK Fixture type (Will automatically adjust footprint, 16-bit, 8-bit, RGB, RGBAW, iW)
    • Zapi all fixtures on a port to a 001 address
  • Compliance:
    • ETL Listed
    • RoHS Compliant
    • CE Certified
    • FCC Part 15 B Certified
  • CTI Part #: 6500
  • Power: 100-240VAC 50/60Hz, 10A
  • Weight: 14 lbs
  • Dimensions: 19”W x 5.25”H x 8”D (3U standard 19” rack mount)

NOTE:

Your PDS-750 TRX may or may not be compatible with SHoW DMX Neo radios, depending on its age. To learn how to tell if it is, and to learn how to make it compatible, consult with your sales representative.
