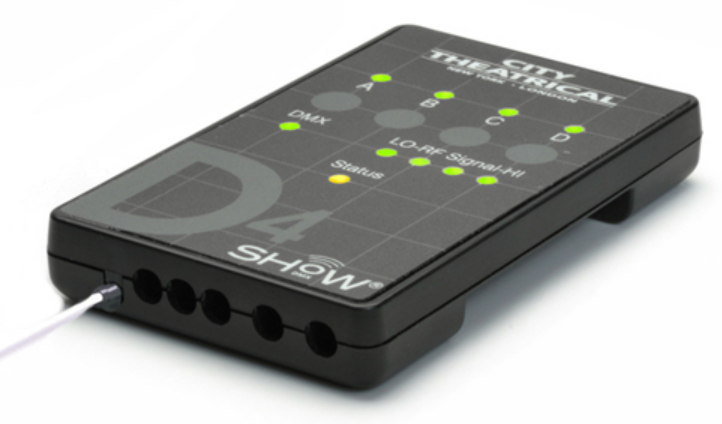

City Theatrical D4 SHoW DMX Neo Dimmer
4 Channel DMX Dimmer Control with Max Bandwidth Technology

OUR PART #:  5742M

City Theatrical's D4 SHoW DMX Neo® Dimmer is the size of a credit card and 1/2" thick.
Learn More
Our Price: $501.50
List Price: $590.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


City Theatrical D4 SHoW DMX Neo Dimmer
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

City Theatrical's D4 SHoW DMX Neo® Dimmer is the size of a credit card and 1/2" thick. The D4 SHoW DMX Neo Dimmer (also known as 5742M) is the smallest full featured four channel dimmer available. With the proven reliability and versatility of our patented SHoW DMX technology included, this dimmer offers unmatched performance with ultra-smooth low-end dimming and flicker free film and video modes.

This model comes with City Theatrical's Maximum Bandwidth Technology™ - using the 2.4GHz broadcast spectrum has become more and more crowded and the competition for this tiny slice of free space has been intense.  City Theatrical has developed a new way to broadcast wireless DMX in this crowded area using a method called Maximum Bandwidth Technology™, or Max Technology™.  Using Max Technology, you can now broadcast on portions of the 2.4GHz band where no Wi-Fi activity takes place at all, giving wireless DMX users a new space for their most mission critical broadcasts while at the same time not disturbing any other users of Wi-Fi that may have mission critical applications themselves.

City Theatrical D4 SHoW DMX Neo Dimmer Includes:

  • D4 SHoW DMX unit
  • User Manual

City Theatrical D4 SHoW DMX Neo Dimmer Features:

  • The D4 Dimmer offers the following:
    • SHoW DMX Neo™ 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio (Wireless version):
    • Wirelessly receive and output a full Universe (512 slots) of DMX
    • Extremely low 7mS latency
    • RDM proxy and responder functions
    • Included 2dBi Omni-directional Flexible Cable Antenna
    • SHoW DMX Neo and SHoW DMX Neo Adaptive wireless broadcast modes (SHoW IDs 101-164, 201-204) , compatible with SHoW DMX Neo Transceiver, SHoW DMX SHoW Baby Transceiver, SHoW DMX Vero Net Transceiver, SHoW DMX Vero Transceiver, MasterBlast

City Theatrical D4 SHoW DMX Neo Dimmer Specifications:

  • Four dimmer output channels
  • Max output per dimmer channel 5A
  • Max total output per device 10A
  • Screw terminal connections for power input and dimmed output
  • Individually protected against over-current
  • Individually protected against over-temperature
  • Individual bump buttons
  • PWM resolution 16-bit
  • Dimming Curves:
    • Linear, 60Hz
    • ISL, 60Hz
    • Non-Dim
  • LED Features:
    • Five variable LED smoothing rates
    • Four Film and Video Modes
  • Individual DMX addresses
  • Fully RDM enabled
  • Mechanical:
    • NEMA 1 ABS enclosure
  • Electronic/ Functional:
    • Bump Buttons
    • DIP Switch, DMX Addressing (9POS)
    • DIP Switch, SHoW ID addressing (8POS)
    • DIP Switch, Curve Selection (4POS)
    • DIP Switch, LED Curve PWM Frequency Selection (4POS)
    • DIP Switch, DMX Termination (wired DMX units only, 1POS)
  • LED indicators:
    • Dimmer pilot lights (one for each channel)
    • Data (data present)
    • RF Signal Strength (4 LEDS) Low to High
    • Status
  • Compliance:
    • RoHS Compliant
    • CE Pending
    • FCC Pending
  • Power: 7.5-30VDC 10A Max Power Input
  • Weight: 0.15 lbs/.08Kg
  • Dimensions (WxHxD): 2.25” x 3.5” x 0.56” (57 x 60 x 14 mm)(excluding antenna)
