City Theatrical D2 SHoW DMX Neo
Low Voltage Dimmer with Max Technology

OUR PART #:  5722M

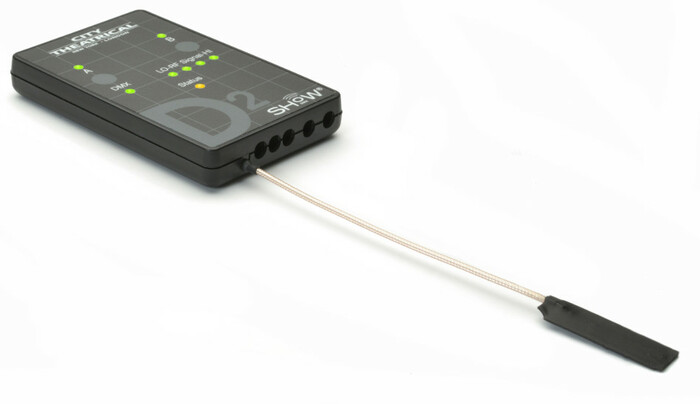

City Theatrical's D2 SHoW DMX Neo® Dimmer [model 5722M] is a low voltage dimmer the size of a credit card, and 1/2" thick.
Learn More
Our Price: $365.50
List Price: $430.00
You save 15%!
Write the first review.
City Theatrical D2 SHoW DMX Neo
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

City Theatrical's D2 SHoW DMX Neo® Dimmer [model 5722M] is a low voltage dimmer the size of a credit card, and 1/2" thick. This 2-channel dimmer comes equipped with City Theatrical's patented SHoW DMX Neo wireless technology as well as City Theatrical's Maximum Bandwidth Technology™. It can receive and output DMX (a full universe) command instructions from up to 200 feet away, making it the ideal dimmer for use in costumes or other freestanding/mobile props where direct wiring is not practical or possible.

City Theatrical's Maximum Bandwidth Technology™
Using the 2.4GHz broadcast spectrum has become more and more crowded and the competition for this tiny slice of free space has been intense. City Theatrical has developed a new way to broadcast wireless DMX in this crowded area using a method called Maximum Bandwidth Technology™, or Max Technology™. City Theatrical's Max Technology allows SHoW DMX to change from Frequency Hopping to Wide Band Digital Modulation, which allows it to narrow its output to smaller areas of the 2.4GHz spectrum, such as Wi-Fi channel 14 where (in the U.S.) no Wi-Fi broadcast takes place. This allows SHoW DMX to avoid all Wi-Fi interference in an otherwise saturated spectrum. At this time, no other wireless DMX system can make this claim. This is accomplished simply by selecting a SHoW ID on the user interface or via RDM.

City Theatrical D2 SHoW DMX Neo Dimmer Includes:

  • D2 SHoW DMX unit
  • User Manual

City Theatrical D2 SHoW DMX Neo Dimmer Features:

  • The D2 SHoW DMX Neo Dimmer offers the following:
    • Max Technology™
    • SHoW DMX Neo™ 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio (Wireless version):
      • Wirelessly receive and output a full Universe (512 addresses) of DMX
      • Extremely low 7mS latency
      • RDM proxy and responder functions
      • Included 2dBi Omni-directional Flexible Cable Antenna
      • SHoW DMX Neo and SHoW DMX Neo Adaptive wireless broadcast modes (SHoW IDs 101-164, 201-204) , compatible with SHoW DMX Neo Transceiver, SHoW DMX SHoW Baby Transceiver, SHoW DMX Vero Net Transceiver, SHoW DMX Vero Transceiver, MasterBlast
  • Two dimmer output channels
  • Max output per dimmer channel 5A
  • Max total output per device 10A
  • Screw terminal connections for power input and dimmed output
  • Individually protected against over-current
  • Individually protected against over-temperature
  • Individual bump buttons
  • PWM resolution 16-bit
  • Dimming Curves:
    • Linear, 60Hz
    • ISL, 60Hz
    • Non-Dim
  • LED Features:
    • Five variable LED smoothing rates
    • Four Film and Video Modes
  • Individual DMX addresses
  • Fully RDM enabled
  • Mechanical:
    • NEMA 1 ABS enclosure
  • Electronic/ Functional:
    • Bump Buttons
    • DIP Switch, DMX Addressing (9POS)
    • DIP Switch, SHoW ID addressing (8POS)
    • DIP Switch, Curve Selection (4POS)
    • DIP Switch, LED Curve PWM Frequency Selection (4POS)
    • DIP Switch, DMX Termination (wired DMX units only, 1POS)
  • LED indicators:
    • Dimmer pilot lights (one for each channel)
    • Data (data present)
    • RF Signal Strength (4 LEDS) Low to High
    • Status

City Theatrical D2 SHoW DMX Neo Dimmer Specifications:

  • Catalog Number: 5722M
  • Output Channels: 2
  • Input Voltage: 7.5 ~ 30VCD 10A Max
  • Max Output per Channel: 7.5 ~ 30VCD 5A
  • Max Dimmer Output: 10A
  • Size (L x W x H): 3.5" x 2.25" x .5"
  • Weight: 2.4 oz.
  • Power Connections: Screw Terminals
  • Output Connections: Screw Terminals
  • DMX Connections: Screw Terminals
  • User Interface: DIP Switches
  • DMX Address: Yes
  • Curve Selection: Yes
  • Film & Video Modes: Yes - *5  (Fifth setting accessed through RDM only)
  • DMX Termination: Yes
  • SHoW ID: N/A
  • Bump Buttons: Yes
  • Pilot Lights: Yes
  • Status Lights: Yes
  • Smoothing Settings: Yes - 6 Variable
  • Stand Alone Settings: N/A
  • RDM: Yes
  • Compliance: FCC (pending), CE (pending), RoHS
  • Reset Switch: Yes
  • Power Supply: Not Included
