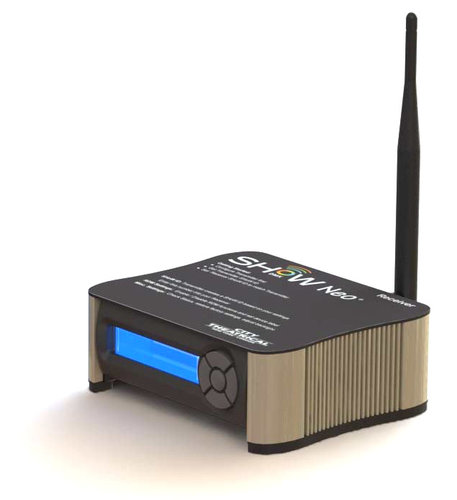

City Theatrical 5711M
ShowDMX Neo Receiver with Maximum Bandwidth Technology

OUR PART #:  5711M

The City Theatrical 5711M SHoW DMX Neo™ receiver™ works as a wireless DMX receiver in concert with the 5701M SHoW DMX Neo™ Transceiver ...
Learn More
Our Price: $803.25
List Price: $945.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

City Theatrical 5711M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The City Theatrical 5711M SHoW DMX Neo™ receiver™ works as a wireless DMX receiver in concert with the 5701M SHoW DMX Neo™ Transceiver , and is also configurable as a half-duplex RDM Responder, capable of transmitting as well as receiving when used in the RDM mode. The City Theatrical 5711M features Maximum Bandwidth Technology™. Control is performed via a 5-button main control interface located on the front panel, in conjunction with an LCD 2-line x 6-character display. It can be powered with 100-240VAC 50/60 Hz mains power by connecting the provided IEC tail to the IEC Mains power Input connector.

Maximum Bandwidth Technology™
Maximum Bandwidth Technology gives SHoW DMX the capability to change from Frequency Hopping to Wide Band Digital Modulation, which allows it to narrow its output to smaller areas of the 2.4GHz spectrum, such as Wi-Fi channel 14 where (in the U.S.) no Wi-Fi broadcast takes place. This way, SHoW DMX avoids all Wi-Fi interference in an otherwise saturated spectrum. No other wireless DMX system can make this claim. This is accomplished simply by selecting a SHoW ID on the user interface or via RDM.

City Theatrical 5711M Specifications:

  • Applications: Indoor
  • Broadcast Power:
    • 1mW ETSI
    • 14mW ETSI
    • 28mW ETSI
    • 72mW ETSI
  • SHoW DMX Neo Broadcast Modes:
    • Neo Full Bandwidth
    • Adaptive Neo Full Bandwidth
    • Limited Bandwidth Wi-Fi 1-6
    • Limited Bandwidth Wi-Fi 4-9
    • Limited Bandwidth Wi-Fi 7-11
  • SHoW DMX Classic Broadcast Mode:
    • Neo Full Bandwidth
    • Limited Bandwidth Wi-Fi 1-6
    • Limited Bandwidth Wi-Fi 4-9
    • Limited Bandwidth Wi-Fi 7-11
  • DMX Burst Modes:
    • Full (512 Slots)
    • Limited (Classic 32-480 Slots;  Neo, 51-476 Slots)
  • Hopping Patterns: 16
  • Show IDs: 132
  • RF Sensitivity: -95dBm
  • RDM Features:
    • RDM Proxy
    • RDM Responder
  • Connectors/Interfacing:
    • DMX/RDM Output (5-Pin XLR)
    • USB A port (for upgrading firmware only)
    • 12VDC Power Input (mates with the CTI 5627 power supply or CTI #5650 Battery Twofer (sold separately)
    • Mains Power Input (connects to the provided IEC tail to connect to mains)
  • Mechanical:
    • NEMA 1 Steel and Aluminum enclosure
    • Aluminum Mounting Base for C-Clamp or other hanging hardware
  • Compliance Certifications:
    • IC
    • FCC
    • CE
    • ETL Listed
  • Physical:
    • Dimensions (WxHxD): 6.25” x 2.375” x 5.125” (159mm x 60mm x 130mm)
    • Weight: 2 lbs. (.9 kg)
  • Power:
    • 9-24 VDC, 250mA
    • 100-240 VAC 50/60Hz
    • 4W

NOTE: All specifications and information subject to change without notice.
