City Theatrical 5701M
ShowDMX NEO Tranceiver with Maximum Bandwidth Technology

OUR PART #:  5701M

The most sophisticated wireless DMX management tool City Theatrical has ever created...
Learn More
Our Price: $1,178.10
List Price: $1,386.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

City Theatrical 5701M
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

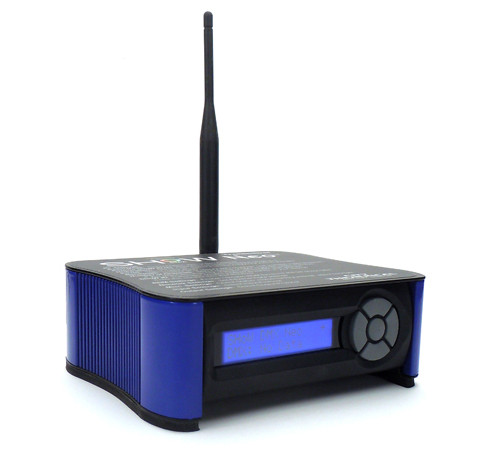

The most sophisticated wireless DMX management tool City Theatrical has ever created, the 5701M SHoW DMX Neo™ Transceiver combines Transmitter and Receiver in a single unit (configurable as a transmitter or receiver) with CTI’s powerful Ethernet Gateway functions and connectivity for the JESE Get Set RDM Controller. The City Theatrical 5701 features Maximum Bandwidth Technology™.

Maximum Bandwidth Technology™
Maximum Bandwidth Technology gives SHoW DMX the capability to change from Frequency Hopping to Wide Band Digital Modulation, which allows it to narrow its output to smaller areas of the 2.4GHz spectrum, such as Wi-Fi channel 14 where (in the U.S.) no Wi-Fi broadcast takes place. This way, SHoW DMX avoids all Wi-Fi interference in an otherwise saturated spectrum. No other wireless DMX system can make this claim. This is accomplished simply by selecting a SHoW ID on the user interface or via RDM.

City Theatrical 5701M Includes:

  • Accessory plate
  • 5627 AC/DC power supply

City Theatrical 5701M Features:

Wireless DMX

  • Fully configurable wireless DMX/RDM Transceiver, configure as a transmitter or receiver
  • Maximum Bandwidth Technology™
  • SHoW DMX Neo Wireless DMX
    • SHoW DMX Neo Mode/Neo Adaptive Mode:
      • DMX Synchronized Hopping
      • Ultra-Low Latency
      • User selectable Full or Limited Bandwidth
      • User selectable Full or Limited Burst
      • User selectable Output Power
      • Lost Data Replacement
      • Advanced High Speed RDM functions
      • Supports reduced DMX slot frames for higher refreshrates
  • All SHoW DMX Classic wireless DMX features:
    • SHoW DMX Classic Mode
      • Communicates with original SHoW DMX equipment
      • DMX Synchronized Hopping
      • User selectable Full or Limited Bandwidth
      • User selectable Full or Limited Burst
      • User selectable Output Power

RDM

  • Supports the JESE GetSet RDM Controller
    • Download for free from the JESE website
    • Install in your PC or Mac and connect via the 5701M Transceiver’s Ethernet Port
    • Fast and reliable wireless RDM Proxy and Responder functions
  • City Theatrical’s advanced built-in Ethernet Gateway features:
    • Dual Ethernet Ports
    • Supports multiple Ethernet show control protocols including sACN, Art-Net, and KiNet
  • USB port for easy firmware upgrades
  • Mounting Bracket for installation with C-Clamps or similar hanging hardware
  • Included CL2 12VDC Power Supply with international plug set
  • Included 5dBi Omni-directional Antenna

City Theatrical 5701M Specifications:

  • Applications: Indoor
  • Broadcast Power:
    • 1mW ETSI
    • 14mW ETSI
    • 28mW ETSI
    • 72mW ETSI
  • SHoW DMX Neo Broadcast Modes:
    • Neo Full Bandwidth
    • Adaptive Neo Full Bandwidth
    • Limited Bandwidth Wi-Fi 1-6
    • Limited Bandwidth Wi-Fi 4-9
    • Limited Bandwidth Wi-Fi 7-11
  • SHoW DMX Classic Broadcast Mode:
    • Neo Full Bandwidth
    • Limited Bandwidth Wi-Fi 1-6
    • Limited Bandwidth Wi-Fi 4-9
    • Limited Bandwidth Wi-Fi 7-11
  • DMX Burst Modes:
    • Full (512 Slots)
    • Limited (Classic 32-480 Slots;  Neo, 51-476 Slots)
  • Ethernet Protocols Supported
    • Input: sACN, Art-Net, KiNet, Pathport
    • Output: sACN, Art-Net, KiNet, Pathport
  • Hopping Patterns: 16
  • Show IDs: 132
  • RF Sensitivity: -95dBm
  • RDM Features:
    • RDM Proxy
    • RDM Responder
  • Mechanical:
    • NEMA 1 Steel and Aluminum enclosure
    • Aluminum Mounting Base for C-Clamp or other hanging hardware
  • Compliance Certifications:
    • CE
    • FCC
    • IC
  • Physical:
    • Dimensions (WxHxD): 6.25” x 2.375” x 5.125” (159mm x 60mm x 130mm)
    • Weight: 2 lbs. (.9 kg)
  • Power:
    • 9-24 VDC, 250mA
    • 100-240 VAC 50/60Hz
    • 4W
