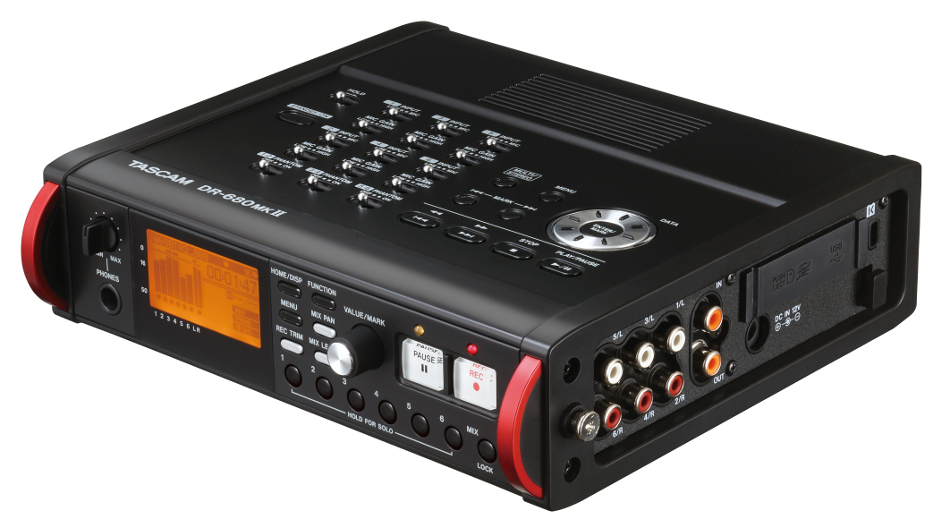

Tascam DR-680MKII
Portable 8-Channel Digital Field Recorder

OUR PART #  DR-680MKII

Sale Price: $499.99
List Price: $799.99
You save 38%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Tascam DR-680MKII portable multichannel field recorder features 6 mic/line inputs and digital input channels to allow for simultaneous recording of up to 8 tracks at 24-bit/96 kHz quality. Plus, when you don't need the digital input, a two-channel mix can be recorded to tracks 7 and 8 as a stereo track, with completely separate level and pan settings from the 6 independent tracks. Share a stereo mix immediately, while retaining the multitrack version for mixdown.

Tascam Premium HDDA (High Definition Discrete Architecture) Mic Preamps
Microphone preamps have a significant impact on the quality of the recorded audio. The DR-680MKII has HDDA mic preamps - designed by Tascam with carefully selected components. Each HDDA mic preamp is built with a differential amplification circuit that employs discrete architecture, and made with parts selected for their audio quality. Additionally, these preamps also provide +48V phantom power.

8-channel Recording at 24-bit/96 kHz or Two Tracks at 24-bit/192 kHz
In addition to WAV format, this unit also records in BWF format - which stores the recording start times in the metadata. Using the WAV/BWF format, the DR-680KII can record 8 channels at 24-bit/96 kHz (6 tracks + stereo track) or 2 tracks at 24-bit/192 kHz.

The DR-680MKII is also capable of simultaneous recording of 4 channels in MP3 format at 96, 128, 192, and 320 kbps. This allows efficient control of file sizes when in situations requiring long recording times, and either stereo or mono file-types are selectable.

Digital Output and 6 Unbalanced Line Outputs
The unit has a built-in coaxial digital input and output (S/PDIF, AES/EBU) and 6 unbalanced line outputs. By connecting a mixer to the outputs, this unit can be used as a 6-track playback device.

Mid-Side Mic Decoding Mode
The built-in mid-side decoder enables use with mid-side stereo mics. The 1-2, 3-4 and 5-6 channel pairs can each be set separately. Decoding is possible during recording or when monitoring.

Cascade Function - Control Multiple Units
When using the cascade function, the master unit controls the REC/PAUSE start (front of unit) and the STOP and PLAY/PAUSE keys (on the top) from multiple DR-680mkII units at the same time.

Gang Function
The Gang function allows multiple linked channels to be controlled at the same time on the TRIM, PAN and LEVEL screens.

Rugged, Compact Construction
SD, SDHC and SDXC cards are used as recording and playback media, and the compact form offers excellent vibration resistance. Along with the included shoulder strap, this unit has a built-in folding stand for tabletop use, making operation easy in a variety of situations.

Tascam DR-680MKII Features:

  • SD/SDHC/SDXC cards used as recording/playback media
  • 6 balanced mic/line inputs (1-4: XLR/TRS combo jacks, 5-6: TRS jacks)
  • 6 unbalanced outputs (RCA pin jacks)
  • COAXIAL digital input and output (S/PDIF, AES/EBU)
  • Recording/playback formats: BWF, WAV, MP3
  • Digital inputs and outputs support double speed 96 kHz and quad speed 192 kHz
  • Sampling frequencies:  44.1, 48, 96, 192 kHz (BWF, WAV) 44.1, 48 kHz (MP3)
  • Quantization bit depth:  16/24-bit (BWF, WAV)
  • 6 channels of TASCAM HDDA mic preamps for high audio quality with 48V phantom power
  • Limiter and low-cut filter available on each mic/line input
  • Built-in stereo monitoring mixer for headphone mix and/or recording
  • Dual recording function allows two files to be recorded simultaneously at different levels
  • GANG function allows the input gain of multiple channels to be operated simultaneously
  • Up to 1000 takes and 5000 files can be recorded on a single card
  • Mark function can be used to move to specific points (up to 99 marks per take)
  • Panel lock function to prevent misoperation
  • High-speed transfer of files to a computer using USB 2.0
  • 128x64-dot matrix display with backlight
  • Built-in mono speaker with 500mW output
  • Headphone output and level control (50mW+50mW/ 32ohm)
  • Powered by 8 AA batteries or the included AC adapter
  • USB cable and shoulder strap included
  • Folding stand convenient for tabletop use

Tascam DR-680MKII Specifications:

  • Recording Media:  SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (64GB to 128GB)
  • File System:  FAT16 / FAT32
  • Recording Format:
    • WAV:  44.1/48/96/192* kHz, 16-/24-bit (*192kHz : 2ch recording/playback)
    • BWF:  44.1/48/96/192* kHz, 16-/24-bit (*192kHz : 2ch recording/playback)
    • MP3:  44.1 kHz, 16-bit, 96 to 320 kbps
  • Analog Audio Inputs:
    • Mic/Line (Balanced):
      • Connectors:
        • Channels 1-4:  XLR-1/4" TRS Combo (1:GND, 2:HOT, 3:COLD)
        • Ch 5-6:  1/4"(6.3 mm) TRS standard jack
    • Set to Mic:
      • Input Impedance:  2.4 kOhm
      • Phantom Power:  +48V (+5%,-10%), +10mA/Ch
      • Standard Input Level:
        • Low:  -51.5dBu
        • High:  -75.5dBu
      • Maximum Input Level:
        • Low:  +3dBu
        • High:  -21dBu
      • Mic Input Gain:  63dB
    • Set to Line:
      • Input Impedance:  10 kOhm
      • Standard Input Level:  +4dBu
      • Maximum Input Level:  +24dBu
      • Line Input Gain:  63dB
  • Analog Audio Output:
    • Line Out (Unbalanced):
      • Connector:  RCA pin jacks
      • Output Impedance:  200 Ohms
      • Standard Output Level:  -10dBV
      • Maximum Output Level:  +6dBV
  • Phones:
    • Connector:  1/4"(6.3 mm)stereo phone jack
    • Maximum Output Level:  50mW + 50mW (32ohms loaded)
  • Speaker:
    • Diameter:  35 mm
    • Impedance:  8 Ohms
    • Maximum Output Level:  500mW
  • Digital Input/Output:
    • Connector:  RCA pin jack
    • Format:  IEC60958-3(S/PDIF), AES3-2003(AES/EBU)
      • Single:  44.1 kHz/48 kHz
      • Double:  96 kHz
      • Quad:  192 kHz
    • Level:  0.5 Vp-p typical
    • Output Impedance:  75 Ohm ±20% unbalance
  • SYNC Input/Output:
    • Connector:  RCA pin jack
  • USB:
    • Connector:  Mini-B type
    • Format:  USB2.0 HIGH SPEED (480Mbps)
    • Power:  8 AA batteries (LR6); AC100 to 240V, 50-60Hz
    • Power Consumption:  8W (Phantom power on)
  • Continuous Operation Time:
    • Alkaline batteries (EVOLTA):
      • About 6:00 (Rec:2ch, Phantom power OFF)
      • About 4:30 (Rec:2ch, Phantom power ON)
      • About 3:30 (Rec:6ch, Phantom power ON)
    • NI-MH batteries (eneloop):
      • About 5:30 (Rec:2ch, Phantom power OFF)
      • About 4:30 (Rec:2ch, Phantom power ON)
      • About 4:00 (Rec:6ch, Phantom power ON)
    • Lithium batteries (Energizer ULTIMATE LITHIUM):
      • About 11:00 (Rec:2ch, Phantom power OFF)
      • About 9:30 (Rec:2ch, Phantom power ON)
      • About 7:30 (Rec:6ch, Phantom power ON)
  • Dimensions (WxHxD):  8.5" x 2.2" x 7.4" (216.4 mm x 56 mm x 188.4 mm)
  • Weight:  3.1 lbs (1.4 kg)(with batteries), 2.6 lbs (1.2 kg)(without batteries)
  • Operating Temperature:  0 to 40°C
  • Standard Accessories:  AC adapter, USB cable, Shoulder strap, Owner's manual including warranty card
  • Audio Performance:
    • Frequency Response:
      • 20Hz to 20kHz +0.5/-1.5dB (Fs 44.1kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
      • 20Hz to 20kHz +0.5/-0.5dB (Fs 48kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
      • 20Hz to 40kHz +0.5/-1.0dB (Fs 96kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
      • 20Hz to 80kHz +0.5/-5.0dB (Fs 192kHz, LINE IN to LINE OUT, Input Level=FS-1dB)
    • Distortion:  0.007% (1kHz, LINE IN to LINE OUT)
    • S/N Ratio:  100dB (A-Weight, MIC IN to DIGITAL OUT); 100dB (A-Weight, LINE IN to LINE OUT)
    • EIN:  -124dBu or less
  • Computer Compatibility:
    • Windows OS:  Windows XP, Windows Vista, Windows 7, Windows 8
    • Macintosh OS:  Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard (V10.6.8), OS X Lion (V10.7), OS X Mountain Lion (V10.8)

Tascam DR 680MKII 8 Track Portable Digital Field recorder Instant Rebate

Our Price: $599.99
Instant Rebate: $100.00

Your Price: $499.99

For a limited time, when you purchase your DR 680MKII 8 Track Portable Digital Field recorder from Full Compass you will Instantly SAVE $100!

The price shown on the DR-680MKII product page reflects the instant rebate. For more information on this offer and any other Tascam gear please contact your Sales Pro at 800-356-5844

Tascam DR 680MKII 8 Track Portable Digital Field recorder Instant Rebate
Offer good between 12/01/2016 and 12/30/2016 Learn More About The DR 680MKII!
