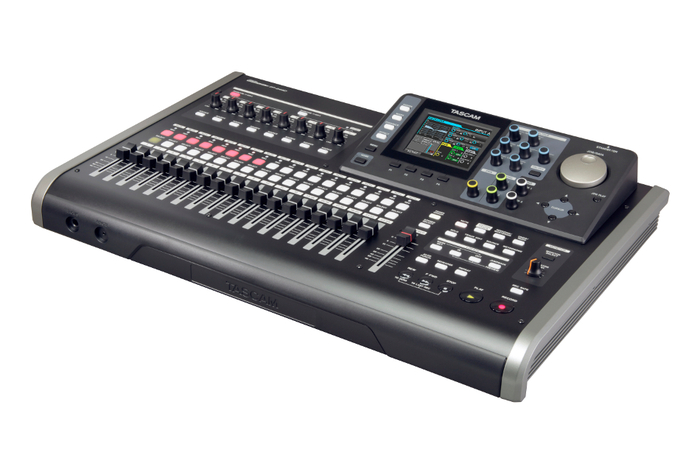

Tascam DP-24SD
Digital Portastudio 24-Track Recorder with (8) XLR-1/4" Combo Inputs

OUR PART #  DP-24SD

Our Price: $449.99
List Price: $599.99
You save 25%! (Low Price Guarantee)
In Stock

The Tascam DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simltaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processirs available during mixing.

Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedence switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.

Tascam DP-24SD Includes:

  • Dedicated AC adapter (Tascam GPE248-120200-Z)
  • SD card
  • USB cable
  • Warranty card
  • Owner's manual

Tascam DP-24SD Features:

  • Simultaneous 24-track playback
  • 12 mono tracks + 6 stereo tracks
  • Simultaneous 8-track recording
  • 16- or 24-bit, 44.1 or 48 kHz recording
  • 8 XLR/TRS combo connectors
  • Phantom power supplied on all inputs (INPUT A-D, E-H)
  • High-impedance input available (INPUT H)
  • Stereo RCA output
  • 2 effect send outputs (1/4" TS jack)
  • 70mW/ch headphone amplifier
  • Remote connector for optional RC-3F footswitch
  • INPUT A-H and each track equipped with 3-band EQ
  • Automatic punch in/out
  • Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
  • Undo and Redo function with Undo history
  • Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
  • Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
  • Mix-down effects (Reverb, Delay, Stereo Chorus)
  • Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
  • Track bounce function
  • Virtual track (8 virtual track per one track: including use track)
  • Locate mark up to 99 for one song
  • File transferring via USB 2.0
  • Chromatic tuner
  • Metronome
  • 19 Faders
  • Peak-hold function on the level meter of the LCD
  • Sub-frame editing
  • RoHS certified

Tascam DP-24SD Specifications:

  • Recording Media:  SD (512MB – 2GB) / SDHC card (4GB – 32GB)
  • File System:  SD card: FAT16 / SDHC card: FAT32
  • Inputs A-H:
    • XLR:
      • Connector:  XLR-3-31 (1:GND, 2:HOT, 3:COLD), Balanced
      • Input Impedance:  2.4 kOhms
      • Nominal Input Level:  -14dBu
      • Maximum Input Level:  +2dBu
    • TRS:
      • Connector:  1/4" (6.3 mm) TRS phone jack, Balanced
      • Input Impedance:  22 kOhms or more / 1 MegaOhm (when INPUT H, GUITAR selected)
      • Nominal Input Level:  +4dBu
      • Maximum Input Level:  +20dBu
  • Stereo Out:
    • Connector:  RCA pin-jack, Unbalanced
    • Output Impedance:  200 Ohms
    • Nominal Output Level:  -10dBV
    • Maximum Output Level:  +6dBV
  • Effect Sends:
    • Connector:  1/4" (6.3 mm) TS phone jack, Unbalanced
    • Output Impedance:  200 Ohms
    • Nominal Output Level:  -10dBV
    • Maximum Output Level:  +6dBV
  • Monitor Out:
    • Connector:  1/4" (6.3 mm) TRS phone jack, Balanced
    • Output Impedance:  200 Ohms
    • Nominal Output Level:  -2dBu
    • Maximum Output Level:  +14dBu
  • Phones:
    • Connector:  1/4" (6.3 mm) stereo phone jack
    • Maximum Output Level:  70mW + 70mW (THD+N 0.1% or less, 32 Ohms loaded)
  • USB:
    • Connector:  USB Mini-B type 4-pin
    • Format:  USB 2.0 High-Speed mass-storage class
  • Remote:
    • Connector:  2.5mm TRS jack
  • Power:  Dedicated AC adapter (Tascam GPE248-120200-Z, included)
  • Power Consumption:  12W (when phantom power supplying)
  • Dimensions (WxHxD):  20.2" × 4.1" × 13.4" (514 mm × 100.4 mm × 336.9 mm)
  • Weight:  13.67 lbs. (6.2 kg)
  • Audio Performance:
    • Frequency Response:  20 Hz - 20 kHz (±1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    • S/N Ratio:  90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    • THD:  0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
  • Operating System Requirements:
    • Windows:
      • OS:  Windows XP, Windows Vista, Windows 7, Windows 8
      • CPU:  Pentium 300MHz or more
      • Memory:  128MB or more
      • USB:  USB 2.0
    • Macintosh:
      • OS:  Mac OS X Snow Leopard (V10.6), OS X Lion (V10.7), OS X Mountain Lion (V10.8), OS X Mavericks (V10.9)
      • CPU:  Power PC, iMAC, G3, G4 266MHz or more
      • Memory:  64MB or more
      • USB:  USB 2.0

Tascam DP-24SD
Digital Portastudio 24-Track Recorder with (8) XLR-1/4" Combo Inputs

OUR PART #  DP-24SD

Product Information:

The Tascam DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simltaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processirs available during mixing.

Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedence switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.

Tascam DP-24SD Includes:

  • Dedicated AC adapter (Tascam GPE248-120200-Z)
  • SD card
  • USB cable
  • Warranty card
  • Owner's manual

Tascam DP-24SD Features:

  • Simultaneous 24-track playback
  • 12 mono tracks + 6 stereo tracks
  • Simultaneous 8-track recording
  • 16- or 24-bit, 44.1 or 48 kHz recording
  • 8 XLR/TRS combo connectors
  • Phantom power supplied on all inputs (INPUT A-D, E-H)
  • High-impedance input available (INPUT H)
  • Stereo RCA output
  • 2 effect send outputs (1/4" TS jack)
  • 70mW/ch headphone amplifier
  • Remote connector for optional RC-3F footswitch
  • INPUT A-H and each track equipped with 3-band EQ
  • Automatic punch in/out
  • Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
  • Undo and Redo function with Undo history
  • Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
  • Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
  • Mix-down effects (Reverb, Delay, Stereo Chorus)
  • Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
  • Track bounce function
  • Virtual track (8 virtual track per one track: including use track)
  • Locate mark up to 99 for one song
  • File transferring via USB 2.0
  • Chromatic tuner
  • Metronome
  • 19 Faders
  • Peak-hold function on the level meter of the LCD
  • Sub-frame editing
  • RoHS certified

Tascam DP-24SD Specifications:

  • Recording Media:  SD (512MB – 2GB) / SDHC card (4GB – 32GB)
  • File System:  SD card: FAT16 / SDHC card: FAT32
  • Inputs A-H:
    • XLR:
      • Connector:  XLR-3-31 (1:GND, 2:HOT, 3:COLD), Balanced
      • Input Impedance:  2.4 kOhms
      • Nominal Input Level:  -14dBu
      • Maximum Input Level:  +2dBu
    • TRS:
      • Connector:  1/4" (6.3 mm) TRS phone jack, Balanced
      • Input Impedance:  22 kOhms or more / 1 MegaOhm (when INPUT H, GUITAR selected)
      • Nominal Input Level:  +4dBu
      • Maximum Input Level:  +20dBu
  • Stereo Out:
    • Connector:  RCA pin-jack, Unbalanced
    • Output Impedance:  200 Ohms
    • Nominal Output Level:  -10dBV
    • Maximum Output Level:  +6dBV
  • Effect Sends:
    • Connector:  1/4" (6.3 mm) TS phone jack, Unbalanced
    • Output Impedance:  200 Ohms
    • Nominal Output Level:  -10dBV
    • Maximum Output Level:  +6dBV
  • Monitor Out:
    • Connector:  1/4" (6.3 mm) TRS phone jack, Balanced
    • Output Impedance:  200 Ohms
    • Nominal Output Level:  -2dBu
    • Maximum Output Level:  +14dBu
  • Phones:
    • Connector:  1/4" (6.3 mm) stereo phone jack
    • Maximum Output Level:  70mW + 70mW (THD+N 0.1% or less, 32 Ohms loaded)
  • USB:
    • Connector:  USB Mini-B type 4-pin
    • Format:  USB 2.0 High-Speed mass-storage class
  • Remote:
    • Connector:  2.5mm TRS jack
  • Power:  Dedicated AC adapter (Tascam GPE248-120200-Z, included)
  • Power Consumption:  12W (when phantom power supplying)
  • Dimensions (WxHxD):  20.2" × 4.1" × 13.4" (514 mm × 100.4 mm × 336.9 mm)
  • Weight:  13.67 lbs. (6.2 kg)
  • Audio Performance:
    • Frequency Response:  20 Hz - 20 kHz (±1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    • S/N Ratio:  90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
    • THD:  0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)
  • Operating System Requirements:
    • Windows:
      • OS:  Windows XP, Windows Vista, Windows 7, Windows 8
      • CPU:  Pentium 300MHz or more
      • Memory:  128MB or more
      • USB:  USB 2.0
    • Macintosh:
      • OS:  Mac OS X Snow Leopard (V10.6), OS X Lion (V10.7), OS X Mountain Lion (V10.8), OS X Mavericks (V10.9)
      • CPU:  Power PC, iMAC, G3, G4 266MHz or more
      • Memory:  64MB or more
      • USB:  USB 2.0
