Schoeps CMC 6 Uni
12/48V Modular Amplifier with Nickel Finish for Colette Series Condenser Microphone Capsules

OUR PART #  CMC-6UGNI

Our Price: $799.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Schoeps CMC 6 Uni is a 12/48V modular amplifier for Colette Series condenser microphone capsules. Its circuitry recognizes the supply voltage and adjusts itself automatically. Its performance characteristics remain essentially the same either way; mainly, the difference is that the current drawn at 12 Volts is greater than at 48 Volts. However, the 12-Volt mode consumes less power and might be preferred for battery-powered recording.

The microphone amplifier provides the electrostatic charge which the capsule requires in order to produce a signal. Since only a miniscule amount of current is contained in this signal, amplification of the current is required. To avoid interference to the signal on the way from the microphone to the input of the mixer or preamp, the signal is conveyed at low impedance and in balanced form. The CMC 6 Uni amplifier offers a symmetrical, transformerless, direct-coupled Class A output stage with low impedance, low distortion, and high freedom from interference.

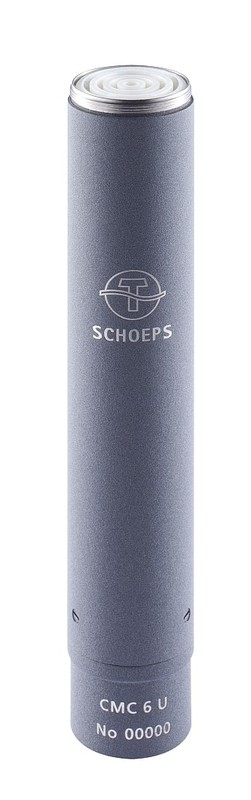

NOTE:  Image shown above is for illustrative purposes only; actual product will come with a Nickel Finish (Matte Gray shown). For more information on this and other products, contact your Sales Representative.

Schoeps CMC 6 Uni Features:

  • Flat frequency response
  • Extremely low noise and distortion
  • Balanced, very low-impedance output
  • Can be used with very long cables
  • Well-protected against RFI
  • For use with 12- or 48-Volt phantom powering

Schoeps CMC 6 Uni Specifications:

  • Powering Voltage:  12 / 48 V
  • Current Consumption with 12 V:  8 mA
  • Current Consumption with 48 V:  4 mA
  • Impedance (at 12 V):  25 Ohms
  • Impedance (at 48 V):  35 Ohms
  • Low-Cut Frequency:  20 Hz
  • Maximum Output Voltage:  1 V
  • Minimum Recommended Load Impedance:  600 Ohms
  • Length:  116 mm
  • Diameter:  20 mm
  • Weight:  60 g
  • Surface Finish:  Nickel
