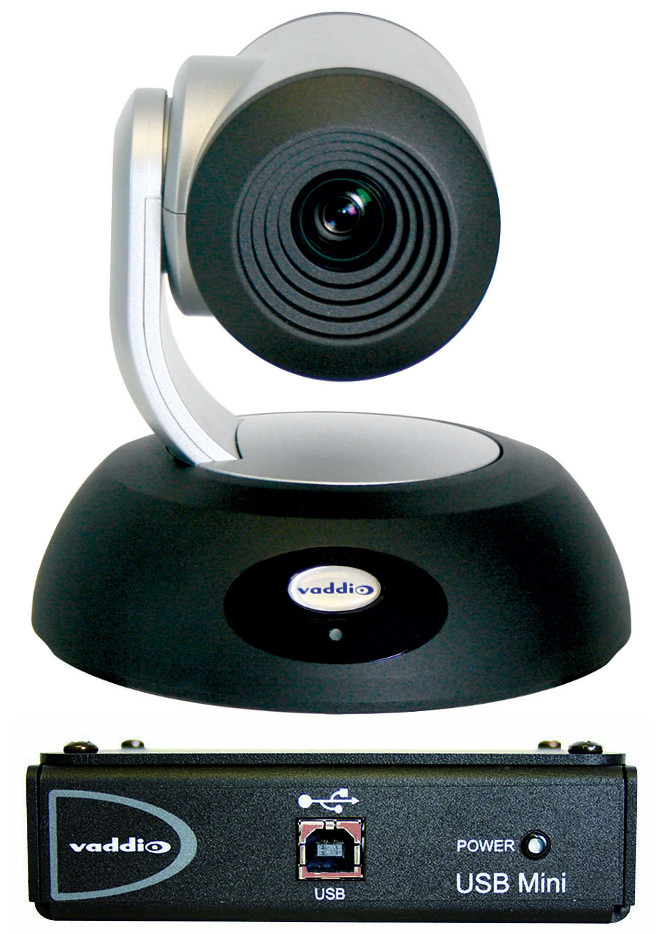

RoboSHOT 12X Camera System with Quick-Connect USB Mini


The Vaddio RoboSHOT 12 HD PTZ Camera is a professional quality PTZ camera with high quality imaging, fine detail and exceptional color reproduction.
Learn More
Vaddio ROBOSHOT12-QM-RST-01 1
Vaddio ROBOSHOT12-QM-RST-01 2
Vaddio ROBOSHOT12-QM-RST-01 3
Vaddio ROBOSHOT12-QM-RST-01 4
Sale Price: $1,992.95
List Price: $4,595.00
You save 57%!
Write the first review.
In Stock

Related Products

The Vaddio RoboSHOT 12 HD PTZ Camera is a professional quality PTZ camera with high quality imaging, fine detail and exceptional color reproduction. This camera offers integrators, dealers and end users with an incredible improvement over other conferencing cameras available today.
The RoboSHOT 12 is perfect for small to medium sized conference rooms, training rooms or classrooms that require a wide angle of view. It provides incomparable support for applications including, UC conferencing, videoconferencing, distance learning, lecture capture, telepresence and more!

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your sales representative for more information on this and other products.

One of the key features of the RoboSHOT cameras is Tri-Synchronous Motion,  a camera control protocol that allows all three (pan, tilt and zoom) axes to move simultaneously. The algorithm calculates the position and velocity of the smooth, direct-drive motor movements between the presets so pan, tilt and zoom arrive at the preset shot simultaneously, which allows for smooth and useable on-air camera movements.

The USB Mini was designed to require simple and effective USB 2.0, 720p/30 streaming and capture capabilities without the need for local analog or digital video outputs.  The USB Mini uses UVC (Universal Video Class) drivers, so whatever resolution the UC application needs, the USB Mini will auto negotiate.
The USB Mini powers the camera, returns HSDS (differential) video with connectivity distances up to 150' using the Vaddio standard two Cat. 5 wiring platform.  The USB Mini also offers an easy mounting either on-wall or under-table with an integrated mounting tab.

What's Included

  • RoboSHOT 12
  • Vaddio IR Remote Commander
  • Thin Profile Wall Mount for RoboSHOT PTZ Cameras
  • Quick-Connect USB Mini System Interface

Vaddio RoboSHOT 12 Key Features:

  • 12X optical zoom with a 73° wide horizontal field of view
  • Exmor 1/2.8", 2.34 Megapixel, Full HD (1080p/60native) high-speed, low noise CMOS sensor
  • Built-in web server for setup and control
  • Thin profile wall mount and mounting hardware included
  • Quick-Connect USB Mini Interface with USB 2.0 Out

Vaddio RoboSHOT 12 Specifications:

  • Image Sensor:
    • Exmor 1/2.8”, 2.34 Megapixel, Full HD (1080p/60 native) High-speed
    • Low Noise CMOS Image Sensor
  • Lens Characteristics (2 modes):
    • Super-Wide Mode: 12X Optical Zoom with 73.0° (wide end) to 6.6° (tele end), f=3.91mm to 47mm, F1.8 to F3.4
    • Normal Mode: 10X Optical Zoom with 67.3° (wide end) to 7.6° (tele end), f=3.8 to 38mm, F1.8 to F3.4
  • Supported Resolutions:  HD Resolutions:1080p/60/59.94/50/30/25, 1080i/60/59.94/50, 720p/60/59.94/50, 16:9 Format
  • Vaddio Special Features:  Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored preset.
  • Advanced ISP: Vivid and accurate color with extremely fast, razor sharp automatic focus and iris routines.
  • S/N Ratio:  > 50 dB
  • Minimum Illumination:  1.0 lux (F1.6, 50IRE), Recommended illumination >100 lux and above (Normal office lighting is 375-500 lux)
  • Minimum Distance:  10mm (wide end) and 800m (tele end)
  • Pan & Tilt Angle/Speed:
    • Pan/Tilt Angles: ±160°, Tilt: +90° to -30°
    • Pan/Tilt Speeds: Both Axes 0.35°/sec to 120°/sec
  • Sync System:  Internal
  • Control Methods:  Ethernet for Internal Web Pages and Telnet, IR Remote Commander and RS-232 for external controllers.
  • Operating/Storage Temperature:  0°C to +40°C(32°F to 104°F), 20% to 80% Humidity
  • Physical:
  • Dimensions:  6.942” (176.3mm) H x 7.056” (179.2mm) W x 6.757” (171.6mm) D
  • Weight:  4.85 lbs.(2.199923 kg)

*Specifications are subject to change and revision without notification or obligation. For more information, please refer to items under the "Documentation" tab.
