Turbosound TCS-122/94-R-WH
12" 600W (8 Ohms) Weather Resistant 2-Way Full-Range Passive/Bi-Amp Loudspeaker with 90°x40° Dispersion in White

OUR PART #  TCS122/94-R-WH

Our Price: $1,699.99
List Price: $1,954.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Turbosound TCS-122/94-R-WH is an IP54-rated weather resistant, switchable bi-amp/passive two way full range loudspeaker designed for use in a wide range of fixed installations and consisting of a 12" reflex loaded low frequency driver and a 1.4" neodymium high frequency compression driver. The rotatable Dendritic waveguide provides a 90° horizontal by 40° vertical HF dispersion pattern in an optimally tuned enclosure. These high grade components are matched with an internal passive crossover, which can be bypassed for fully bi-amped operation.

The cabinet is constructed from 15mm (5/8") birch plywood, with a powder coated perforated steel mesh grille backed with reticulated foam. The double trapezoidal cabinet shape conveniently allows the TCS-122/94-R-WH to be tight packed with other TCS series enclosures. Multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended and angled in permanent installations using M10 shoulder eyebolts. The TCS-122/94-R-WH is also fitted with internal rigging points for use with Turbosound and OmniMount wall and ceiling brackets.

A Neutrik speakON NL4 speaker connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets. The TCS-122/94-R-WH is finished in durable white semi matte textured paint and is designed for outdoor use with all components rated to IP54 and fitted with a captive cable tail secure through a sealed cable gland on an aluminum panel.

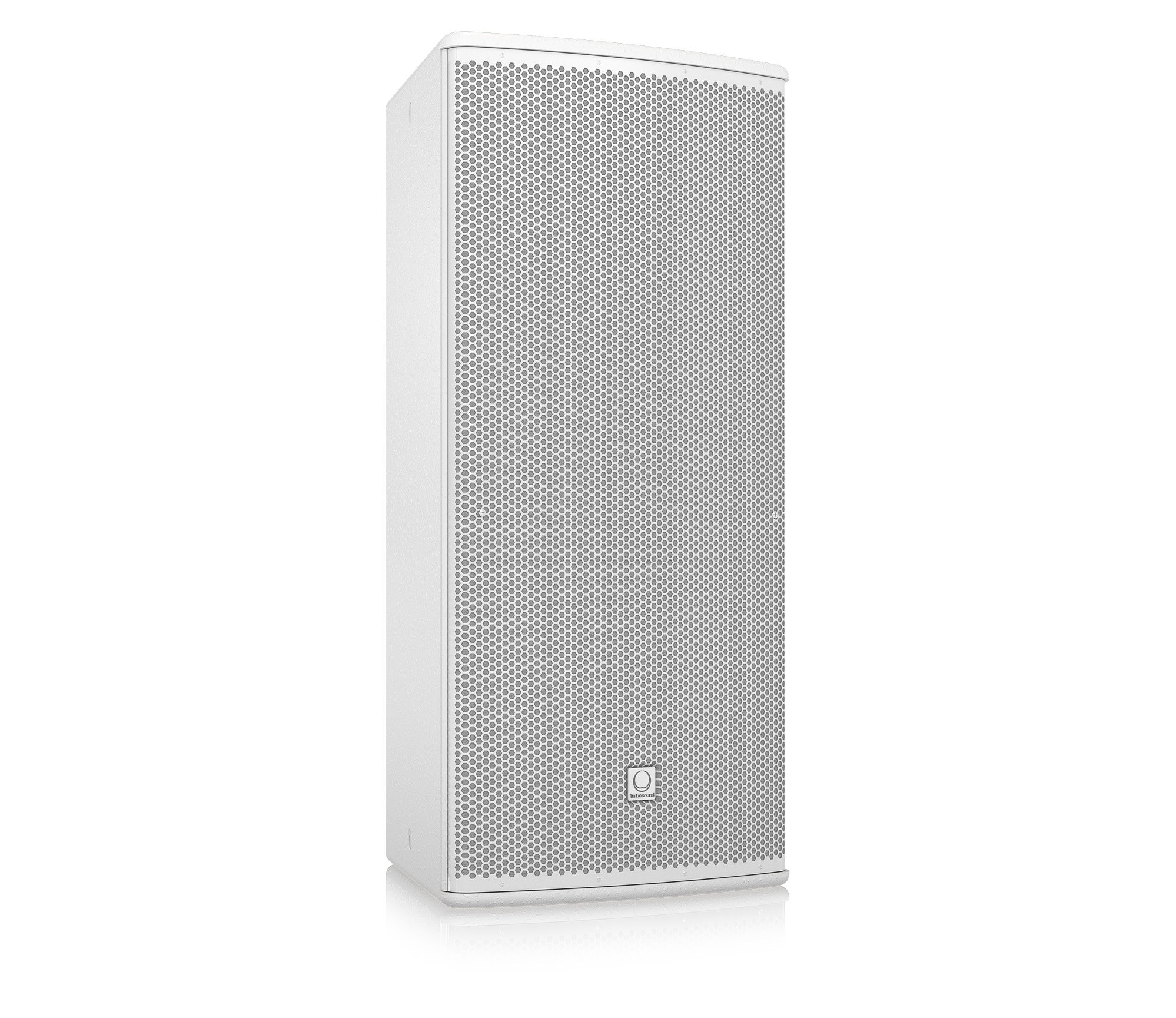

NOTE:  Image shown above is for illustrative purposes only; actual product will come White in color. For more information on this and other products, contact your Sales Representative.

Turbosound TCS-122/94-R-WH Features:

  • Arrayable 2 way full range loudspeaker for installation applications
  • IP54-rated weather resistant components
  • Rotatable Dendritic waveguide with 90° x 40° dispersion
  • 600 Watts continuous, 2,400 Watts peak power
  • 12” low frequency driver
  • 1.4” neodymium HF compression driver
  • Multiple array configurations for extended coverage
  • Switchable passive/bi-amp operation for flexibility of use
  • Double trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • 15mm (5/8”) birch plywood enclosure with hard wearing semi matte white paint finish
  • Architecturally styled powder coated perforated steel mesh grille
  • Neutrik speakON NL4 and barrier strip connectors
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound TCS-122/94-R-WH Specifications:

  • Components:  1x 12” (305 mm) LF Driver, 1x 1.4”(35 mm) HF Compression Driver
  • Frequency Response:  70 Hz - 20 kHz (±3dB); 50Hz - 20 kHz (±10dB)
  • Dispersion:  90° H x 40° V @ -6dB Points. Horn Pattern is Rotatable Within the Enclosure
  • Sensitivity (1 W @ 1 M):
    • HF:  104dB
    • LF: 95dB
    • Passive: 95dB (1 Watt @ 1 Meter)
  • Power Handling:
    • HF:  100 Watts Continuous, 400 Watts Peak
    • LF:  500 Watts Continuous, 2,000 Watts Peak
    • Passive:  500 Watts Continuous, 2,000 Watts Peak
  • Calculated Max SPL:
    • HF:  124dB Continuous, 130dB Peak
    • LF:  122dB Continuous, 128dB Peak
    • Passive:  122dB Continuous, 128dB Peak
  • Nominal Impedance:
    • HF:  8 Ohms
    • LF:  8 Ohms
    • Passive:  8 Ohms
  • Crossover:  Internal Passive Network at 1.2 kHz,12 dB / Octave Low Pass, 24 dB / Octave High Pass
  • Construction:  15mm (5/8”) birch plywood finished in semi matte white paint
  • Grille:  Powder Coated Perforated Steel with Foam Backing
  • Connectors:  Neutrik speakON NL4, Wired pin1+: Positive, pin 1-: Negative, Pins 2+ and 2- N/C (Passive); pin1+: LF Positive, Pin1-: LF Negative, Pin2+: HF Positive, Pin 2-: HF Negative (Bi-amp); 4-Way Barrier Strip Connector
  • Standards:  IP54 Weather Resistance Rating
  • Dimensions (HxWxD):  31.6" x 15.9" x 16.4" (803mm x 403mm x 416mm)
  • Net Weight:  66 lbs (30 kg)
