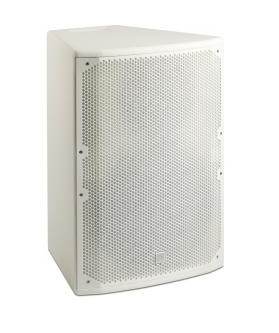

Turbosound TCX-122-WH
300W 12" 2-Way Speaker in White


Our Price: $549.99
Write the first review.
Turbosound TCX-122-WH
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The TURBOSOUND DUBLIN TCX122 is a passive 1,200 Watt two way full range loudspeaker system designed for use in a wide range of portable speech and music sound reinforcement applications. It consists of a high excursion 12" reflex loaded low frequency driver with low mass voice coil for improved transient response and a 1" high temperature dome compression driver with extended high frequency reproduction on a rotatable 90° horizontal by 60° vertical Converging Elliptical Waveguide in a trapezoidal enclosure. These high grade components are matched with an internal passive crossover network.

When permanently installed the cabinet presents a discreet appearance with no visible side handles to enable visually unobtrusive loudspeaker arrays, while for portable applications the pole mount blanking plug can be removed for use with speaker stands and poles, and a single carrying handle is provided for transportation. The Converging Elliptical Waveguide generates a smooth wavefront while giving excellent pattern control and can be rotated through 90° within the cabinet, so allowing a swap of the horizontal and vertical dispersion patterns. This feature is especially useful to retain the wide horizontal dispersion when mounting the cabinet horizontally in venues where ceiling height is limited.

The cabinet includes internal M10, M8 and M6 threaded rigging points for use with TURBOSOUND wall and ceiling brackets, and provides compatibility with OmniMount* loudspeaker mounting brackets. Constructed from 5/8" (15 mm) birch plywood, the cabinet is available in hard wearing semi matt black or optional white textured paint. A perforated steel mesh grille backed with reticulated foam protects the drive units from damage. The rear connector panel provides two Neutrik speakON* NL4 connectors for input and link functions, wired in parallel with a 4-way barrier strip connector

A weather resistant version is available rated to IP54 comprising moisture treated woodwork, weatherised components, plated and outdoor powder coated grille with reticulated foam backing, stainless steel fixings, and a captive cable tail secured through a sealed cable gland on an aluminium panel. Additionally, external handles and the pole mount socket are omitted in order to provide a sealed enclosure and prevent the ingress of water or moisture.

Turbosound TCX-122 Features:

  • 2 way loudspeaker for portable PA and installationapplications
  • 300 Watts continuous, 1,200 Watts peak power
  • High excursion 12" low frequency driver with low massvoice coil for improved transient response
  • 1" high temperature dome compression driver withextended high frequency reproduction
  • Rotatable converging elliptical waveguide provides 90°H x 60° V dispersion
  • M10, M8 and M6 rigging points compatible withTURBOSOUND and OmniMount* brackets
  • Trapezoidal cabinet shape enables visually unobtrusiveloudspeaker arrays
  • Concealed pole mount socket enables mobileapplications
  • Integral handle for lifting and carrying
  • 15 mm (5/8") birch plywood enclosure with hard wearingsemi matt black paint finish
  • Powder coated perforated steel mesh grille with foambacking
  • Neutrik speakON* NL4 and barrier strip connectors
  • 3-Year Warranty Program**
  • Designed and engineered in England

Turbosound TCX-122 Specifications:

  • Dimensions (H x W x D):  552 x 410 x 368 mm (21.7x 16.1 x 14.5?)
  • Net Weight:  19.5 kg (42.9 lbs)
  • Components:
    • 1 x 12” (305 mm) LF driver
    • 1 x 1” (25 mm) HF driver on a Converging Elliptical Waveguide
  • Frequency Response:  100 Hz - 18 kHz ±3 dB, 68 Hz- 20 kHz ±10 dB
  • Dispersion:  90° H x 60° V @ -6 db points
  • Sensitivity (1 W @ 1 M):  97 dB 1 Watt @ 1 metre
  • Power Handling:  300 Watts continuous, 1200 Wattspeak
  • Calculated Max SPL:  122 dB continuous, 128 dBpeak
  • Nominal Impedance:  8 Ohms
  • Crossover:  2 kHz
  • Construction:  15 mm (5/8") birch plywood,finished in black semi matt textured paint
  • Grille:  Powder coated perforated mild steel
  • Connectors:  2 x Neutrik speakON* NL4, wired pin1+: positive, pin 1- : negative, pins 2+ and 2- N/C, 1 x 4-way barrier stripconnector
  • Options:  White semi matt textured paint
  • Rigging:
    • 9 x M10 internal rigging points for eyebolts
    • 4 x M8 internal rigging points for TURBOSOUND brackets (60 mm x 60 mm)
    • 4 x M6 internal rigging points for OmniMount™ brackets (127 mm x 70 mm)
