Turbosound Impact TCI53-TR
Pair of Dual 5" 120W 2-Way Weather Resistant Loudspeakers in Black with 70/100V & Low Impeadance Operation

OUR PART #  TCI53TR

Our Price: $299.99
List Price: $344.99
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

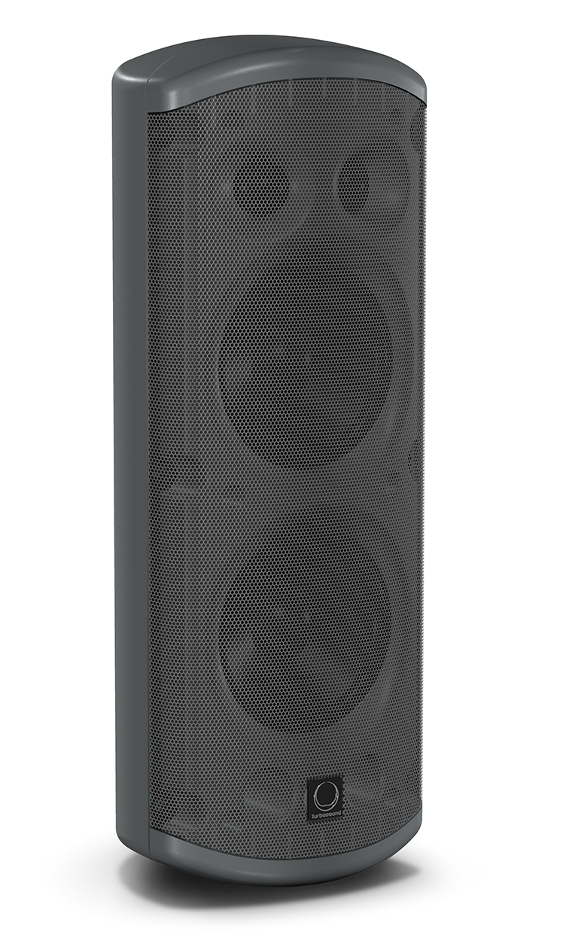

The Turbosound Impact TCI53-TR is an IP34-rated weather resistant, compact, passive two-way full-range surface-mount loudspeaker consisting of two high excursion 5" low frequency drivers with high temperature voice coils, matched to two 1" ferrofluid cooled neodymium high frequency drivers on proprietary elliptical waveguides providing wide 100º horizontal by 70º vertical dispersion.

The TCI53-TR includes an internal line transformer with multiple taps for use in 70 Volt and 100 Volt line distributed systems, and also provides a 16 Ohm low impedance direct input. The TCI53-TR is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a greatly simplified process.

The architecturally styled glas filled impact resistant enclosure is finished in semi matte black to fit unobtrusively in any environment, and features weather resistant components, plated and outdoor powder coated perforated steel grille, corrosion resistant brass terminal block connectors, and stainless stell fixings for comprehensive protection in outdoor environments. M6 threaded fixings are provided on the rear for use with Turbosound wall and ceiling brackets, and OmniMount brackets, and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor.

Turbosound Impact TCI53-TR Features:

  • Compact 2 way full range surface-mount loudspeaker for installation applications
  • IP34-rated weather resistant components
  • 120 Watts continuous, 480 Watts peak power
  • High excursion dual 5" low frequency drivers with high temperature voice coil
  • Dual 1" ferrofluid cooled neodymium high frequency drivers
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Proprietary elliptical waveguide provides wide 100º H x 70º V dispersion
  • Wall-mount bracket with integral loudspeaker connections included
  • Architecturally styled glass filled impact resistant enclosure
  • Semi matte black finish fits unobtrusively in any environment
  • 2x M6 rigging points compatible with Turbosound and OmniMount brackets
  • 3/8" mic stand fitting for spot monitor applications
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound Impact TCI53-TR Specifications:

  • Components:
    • 2x 5” (127 mm) LF Drivers
    • 2x 1” (25 mm) Ferrofluid Cooled Neodymium HF Drivers
  • Frequency Response:  74 Hz - 18 kHz (±3dB); 43 Hz - 20 kHz (±10dB)
  • Dispersion:  100° H x 70° V @ -6 dB Points
  • Sensitivity (1 W @ 1 M):  90dB SPL
  • Power Handling:  120 Watts Continuous, 480 Watts Peak
  • Transformer Taps:
    • 100V Line:  120 Watts, 60 Watts, 30 Watts
    • 70V Line:  120 Watts, 60 Watts, 30 Watts, 15 Watts
    • Low Impedance Setting
  • Calculated Max SPL:  111dB Continuous, 117dB Peak
  • Nominal Impedance:  8 Ohms
  • Crossover:  Internal Passive Crossover at 4.5 kHz, 12 dB / Octave
  • Construction:  Gas Injected Glass Filled Moulded ABS Enclosure
  • Grille:  Powder Coated Galvanized Perforated Steel
  • Connectors:  Color Coded Binding Posts
  • Standards:
    • IP34 Weather Resistance
    • Fire Retardant UL 94 V-0 ABS
  • Rigging:  2x M6 Fixing Points for TCI-WB Wall Bracket (Supplied). Compatible with Turbosound Wall and Ceiling Brackets, and OmniMount Brackets
  • Dimensions (HxWxD):  17.7" x 6.5" x 6.2" (450mm x 164mm x 158mm)
  • Net Weight:  11 lbs (5 kg)

Turbosound Impact TCI53-TR
Pair of Dual 5" 120W 2-Way Weather Resistant Loudspeakers in Black with 70/100V & Low Impeadance Operation

OUR PART #  TCI53TR

Product Information:

The Turbosound Impact TCI53-TR is an IP34-rated weather resistant, compact, passive two-way full-range surface-mount loudspeaker consisting of two high excursion 5" low frequency drivers with high temperature voice coils, matched to two 1" ferrofluid cooled neodymium high frequency drivers on proprietary elliptical waveguides providing wide 100º horizontal by 70º vertical dispersion.

The TCI53-TR includes an internal line transformer with multiple taps for use in 70 Volt and 100 Volt line distributed systems, and also provides a 16 Ohm low impedance direct input. The TCI53-TR is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a greatly simplified process.

The architecturally styled glas filled impact resistant enclosure is finished in semi matte black to fit unobtrusively in any environment, and features weather resistant components, plated and outdoor powder coated perforated steel grille, corrosion resistant brass terminal block connectors, and stainless stell fixings for comprehensive protection in outdoor environments. M6 threaded fixings are provided on the rear for use with Turbosound wall and ceiling brackets, and OmniMount brackets, and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor.

Turbosound Impact TCI53-TR Features:

  • Compact 2 way full range surface-mount loudspeaker for installation applications
  • IP34-rated weather resistant components
  • 120 Watts continuous, 480 Watts peak power
  • High excursion dual 5" low frequency drivers with high temperature voice coil
  • Dual 1" ferrofluid cooled neodymium high frequency drivers
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Proprietary elliptical waveguide provides wide 100º H x 70º V dispersion
  • Wall-mount bracket with integral loudspeaker connections included
  • Architecturally styled glass filled impact resistant enclosure
  • Semi matte black finish fits unobtrusively in any environment
  • 2x M6 rigging points compatible with Turbosound and OmniMount brackets
  • 3/8" mic stand fitting for spot monitor applications
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound Impact TCI53-TR Specifications:

  • Components:
    • 2x 5” (127 mm) LF Drivers
    • 2x 1” (25 mm) Ferrofluid Cooled Neodymium HF Drivers
  • Frequency Response:  74 Hz - 18 kHz (±3dB); 43 Hz - 20 kHz (±10dB)
  • Dispersion:  100° H x 70° V @ -6 dB Points
  • Sensitivity (1 W @ 1 M):  90dB SPL
  • Power Handling:  120 Watts Continuous, 480 Watts Peak
  • Transformer Taps:
    • 100V Line:  120 Watts, 60 Watts, 30 Watts
    • 70V Line:  120 Watts, 60 Watts, 30 Watts, 15 Watts
    • Low Impedance Setting
  • Calculated Max SPL:  111dB Continuous, 117dB Peak
  • Nominal Impedance:  8 Ohms
  • Crossover:  Internal Passive Crossover at 4.5 kHz, 12 dB / Octave
  • Construction:  Gas Injected Glass Filled Moulded ABS Enclosure
  • Grille:  Powder Coated Galvanized Perforated Steel
  • Connectors:  Color Coded Binding Posts
  • Standards:
    • IP34 Weather Resistance
    • Fire Retardant UL 94 V-0 ABS
  • Rigging:  2x M6 Fixing Points for TCI-WB Wall Bracket (Supplied). Compatible with Turbosound Wall and Ceiling Brackets, and OmniMount Brackets
  • Dimensions (HxWxD):  17.7" x 6.5" x 6.2" (450mm x 164mm x 158mm)
  • Net Weight:  11 lbs (5 kg)
