Turbosound Impact TCI52-TR-WH
Pair of 5" 60W 2-Way Weather Resistant Loudspeakers in White with 70/100V & Low Impedance Operation


Our Price: $299.99
Write the first review.
Turbosound Impact TCI52-TR-WH
Usually ships in 7-14 business days.

Related Products

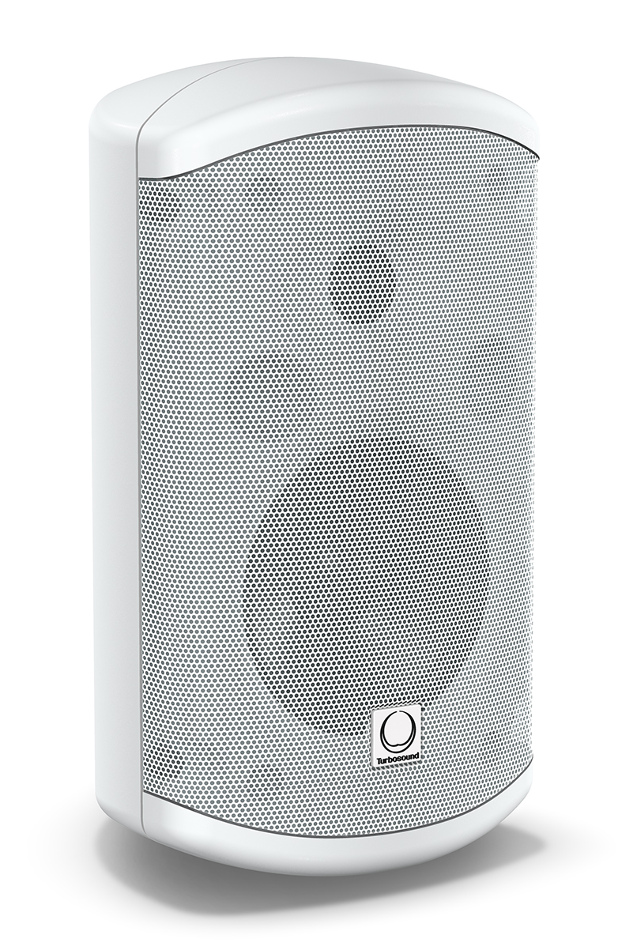

The Turbosound Impact TCI52-TR-WH is an IP34-rated weather resistant compact passive two-way full-range surface-mount loudspeaker consisting of a high excursion 5" low frequency driver with a high temperature voice coil, matched to a 1" ferrofluid cooled neodymium high frequency driver on a proprietary elliptical waveguide providing wide 100º horizontal by 70º vertical dispersion.

The TCI52-TR-WH includes an internal line transformer with multiple taps for use in 70 Volt and 100 Volt line distributed systems, and also provides a 16 Ohm low impedance direct input. The TCI52-TR-WH is supplied with an adjustable wall mounting bracket which provides the loudspeaker connections as an integral part of the bracket assembly, allowing the brackets to be sited, installed and wired independently of the loudspeakers being available on-site, making the final installation and commissioning of the loudspeaker system a greatly simplified process.

The architecturally styled glass filled impact resistant enclosure is finished as standard in semi matte white to fit unobtrusively in any environment, and features weather resistant components, plated and outdoor powder coated perforated steel grille, corrosion resistant brss terminal block connectors, and stainless steel fixings for comprehensive protection in outdoor environments. M6 threaded fixings are provided on the rear for use with Turbosound wall and ceiling brackets, and OmniMount brackets, and a 3/8" threaded insert is provided behind an EPDM rubber cover on the bottom of the cabinet for use with microphone stands as a spot monitor.

Turbosound Impact TCI52-TR-WH Features:

  • Compact 2 way full range surface-mount loudspeaker for installation applications
  • IP34-rated weather resistant components
  • 60 Watts continuous, 240 Watts peak power
  • High excursion 3.5" low frequency driver with high temperature voice coil
  • 1" ferrofluid cooled neodymium high frequency driver
  • Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
  • Proprietary elliptical waveguide provides wide 100º H x 70º V dispersion
  • Wall-mount bracket with integral loudspeaker connections included
  • Architecturally styled glass filled impact resistant enclosure
  • Semi matte white finish fits unobtrusively in any environment
  • 2x M6 rigging points compatible with Turbosound and OmniMount brackets
  • 3/8" mic stand fitting for spot monitor applications
  • 3-Year Warranty Program
  • Designed and engineered in England

Turbosound Impact TCI52-TR-WH Specifications:

  • Components:
    • 1x 5” (127 mm) LF driver
    • 1x 1” (25 mm) Ferrofluid Cooled Neodymium HF Driver
  • Frequency Response:  89 Hz - 20 kHz (±3dB); 64 Hz - 20 kHz (±10dB)
  • Dispersion:  100° H x 70° V @ -6dB Points
  • Sensitivity (1 W @ 1 M):  90dB SPL
  • Power Handling:  60 Watts Continuous, 240 Watts Peak
  • Transformer Taps:
    • 100V Line:  60 Watts, 30 Watts, 15 Watts
    • 70V Line:  60 Watts, 30 Watts, 15 Watts, 7.5 Watts
    • Low impedance setting
  • Calculated Max SPL:  109dB Continuous, 115dB Peak
  • Nominal Impedance:  16 Ohms
  • Crossover:  Internal Passive Crossover at 2.5 kHz, 12 dB / Octave
  • Construction:  Gas Injected Glass Filled Molded ABS Enclosure
  • Grille:  Powder-Coated Galvanized Perforated Steel
  • Connectors:  Color Coded Binding Posts
  • Standards:
    • IP34 Weather Resistance
    • Fire Retardant UL 94 V-0 ABS
  • Rigging:  2x M6 Fixing Points for TCI-WB Wall Bracket (Supplied). Compatible with Turbosound Wall Brackets and Ceiling Brackets, and OmniMount Brackets
  • Dimensions (HxWxD):  11.8" x 6.5" x 6.2" (300mm x 164mm x 158mm)
  • Net Weight:  7.7 lbs (3.5 kg)
